Description
Feature:
Both linnear (mW) and non-linear (dBm)
User calibration
Wavelength memory function
Specification:
|
Model |
QH10A |
QH10B |
|
Measuring Range |
-70 to +10dBm |
-50 to +26dBm |
|
Calibrated Wavelength |
850/980/1300/1310/1490/1550/1625/1650nm |
|
|
Detector Type |
InGaAs |
|
|
Resolution |
Linear display: 0.1%, logarithmic display:0.01dBm |
|
|
Linearity |
±5% |
|
|
Automatic Shutoff Time |
10min |
|
|
Continuous Working Time |
12h |
|
|

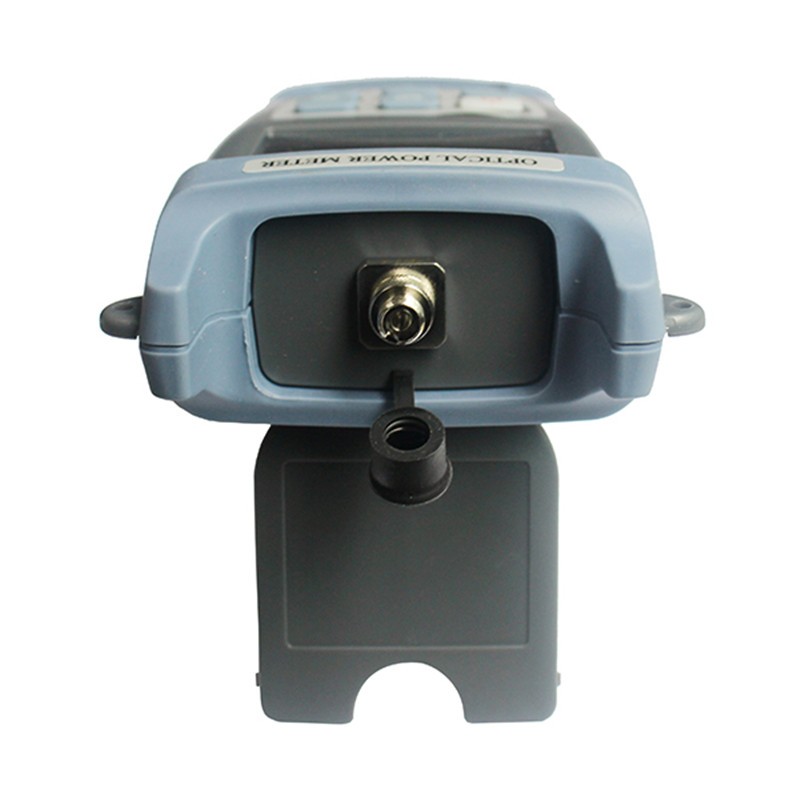

Connector |
Interchangeable FC, SC, ST |
|
|
Tone Detection |
270, 330, 1k, 2kHz |
|
|
Power supply |
3*AA dry batteries or Rechargeable Lithium battery (1500mAh) |
|
|
Backlight |
Yes |
|
|
Dimension |
186*100*50mm |
|
|
Net Weight |
140g |
|
|
Operating Temperature |
-10 to +50℃ |
|
|
Storage Temperature |
-40 to +70℃ |
|
|
Relative Humidity |
0~95% (non-condensing) |
|
Standard Accessory:
Item
Name
Quantity
1
Optical Power Meter
1pc
2
User Manual
1pc
3
AA Dry Batteries
3pcs (for dry battery model)
4
1500mAh Lithium Battery
1pc (for Lithium battery model)
5
Data Line
1pc (for Lithium Battery model)
6
FC Adapter
1pc
7
SC Adapter
1pc
Optional Accessory:
|
Item |
Name |
Quantity |
|
1 |
ST Adapter |
1pc |
|
2 |
Male FC to female LC adapter for LC connector |
1pc |
|
3 |
AC/DC Power Adapter |
1pc (for Lithium Battery model) |
Ordering Information:
Model: QH10X-X
|
Model |
X: OPM Range |
X: Battery |
|
QH10 |
A: -70~+10dBm |
D: Dry Battery |
|
B: -50~+26dBm |
L: Lithium Battery |
