Description

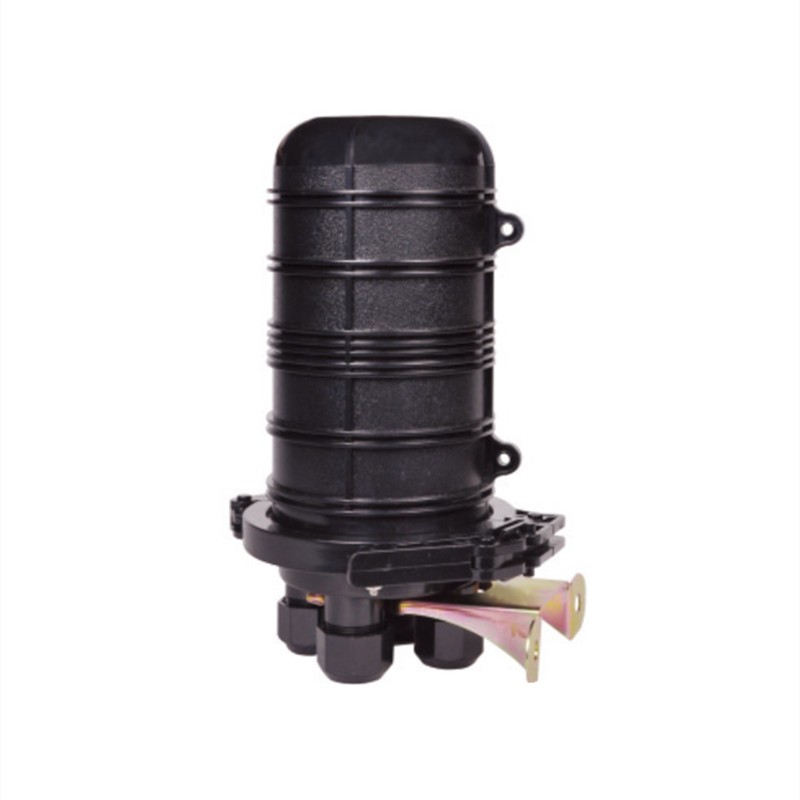

D001J-48 fiber optic splice closure made of high quality engineer plastic material ,Good mechanical strength, Elegant appearance, sturdiness and durability.
Suitable for indoor or outdoor ,wall-mounted , pole installation.

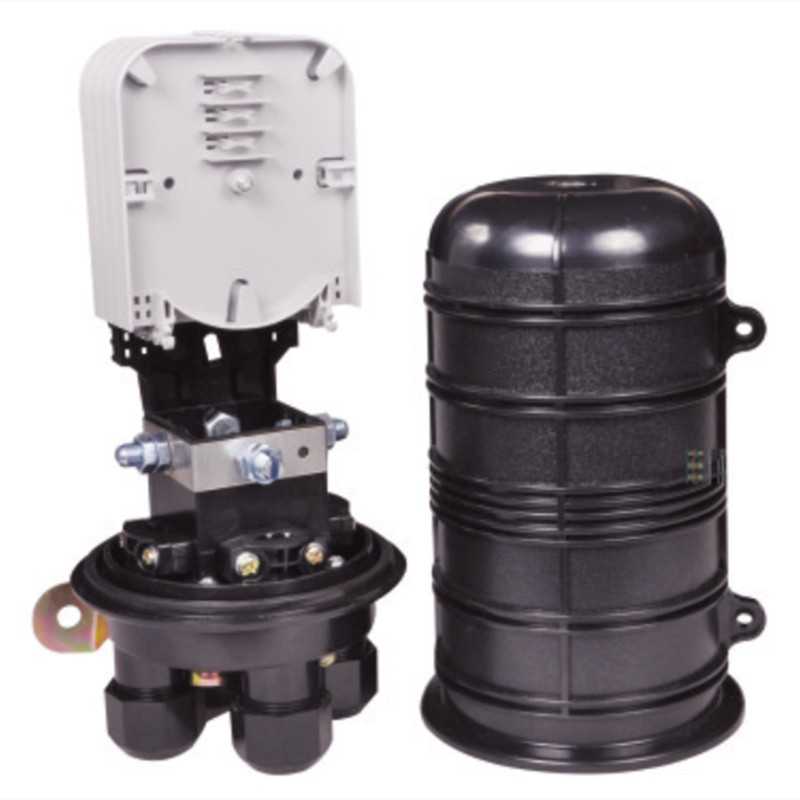

Built-in Stacked splice tray, easy for open, the splice tray can be taken down, easy for installation and maintenance.
Fiber routing is reasonable.
Clamping for fiber splicing, fixation, storage, distribution...etc all in one.
Applicable environment
Operating temperature：-40℃～+65℃
Relative humidity：≤85% (+30℃)
Atmospheric pressure：70Kpa～106Kpa
Protection class:IP67
Dimension and capacity
|
Outside dimension (Height x Diameter) |
288mm×178mm |
|
Weight (excluding outside box) |
1800g—1910g |
|
Number of inlet/outlet ports |
4 pieces |
|
Diameter of fiber cable |
Φ8mm～Φ16 mm |
|
Capacity of FOSC |
Bunchy: 4-48 (cores) |
Main accessories and special tools
|
No. |
Name of accessories |
Quantity |
Usage |
Remarks |
|
1 |
Heat shrinkable protective sleeve |
|
Protecting fiber splices |
Configuration as per capacity |
|
2 |
Nylon tie |
|
Fixing fiber with protective coat |
Configuration as per capacity |
|
3 |
Earthing wire |
1 piece |
Putting through between earthing devices |
To put through as per actual requirement |
|
4 |
Abrasive cloth |
1 piece |
Scratching fiber cables |
|
|
5 |
Labeling paper |
1 piece |
Labeling fibers |
|
|
6 |
Special wrench |
2 pieces |
Installing and tightening nut of reinforced core and nut (plastic) of inlet/outlet tube |
|
|
7 |
Measuring paper |
1 piece |
To measure perimeter, of which its diameter is enlarged with seal tape |
To measure perimeter with the corresponding measuring paper |
|
8 |
Seal tape |
1 ring |
Enlarging diameter of fiber cable which fits in with gasket ring. |
Configuration as per specification |
|
9 |
Insulation tape |
1 ring |
Enlarging diameter of fiber cable for easy fixing |
|
|
10 |
Metal hoop |
1 set |
For wall mounting and pole hugging |
|
|
11 |
Buffer tube
|
decided by customers |
Hitched to fibers and fixed with FOST, managing buffer. |
Configuration as per requirement |
|
12 |
Desiccant |
1 bag |
Put into FOSC before sealing for desiccating air |
|
