Description:

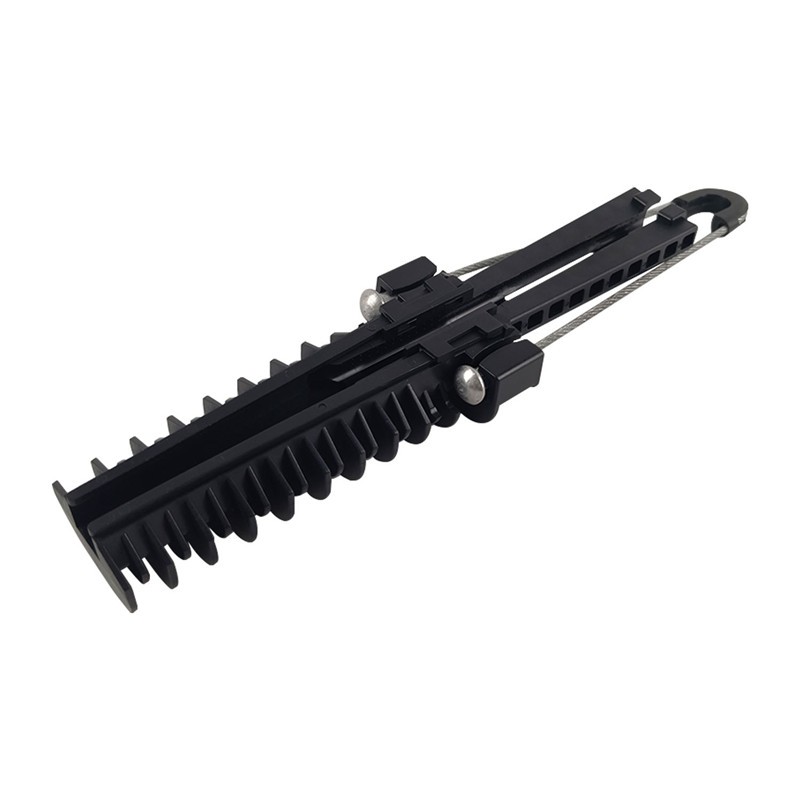

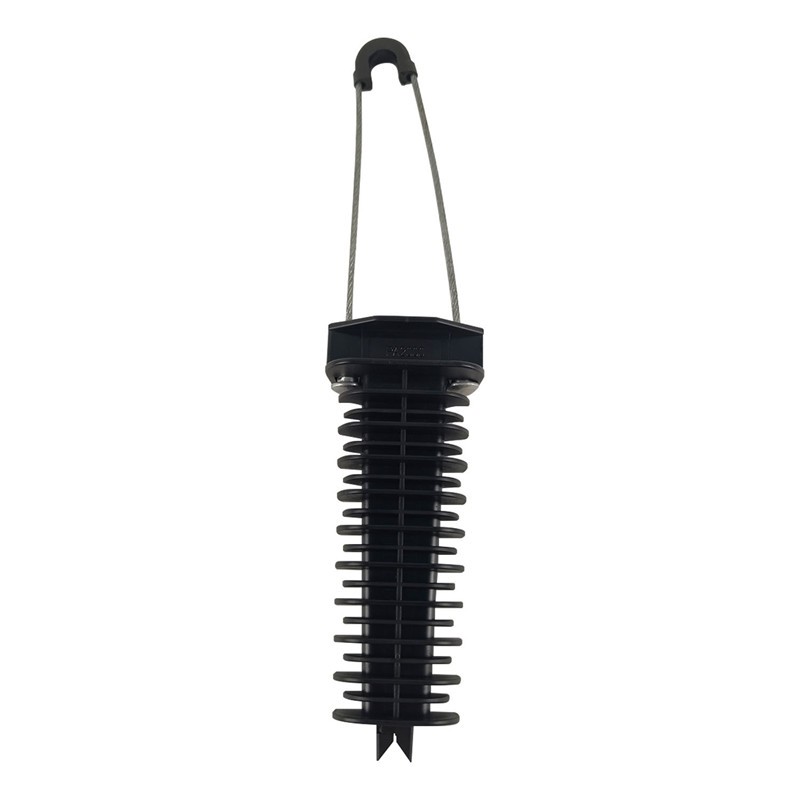

PA Series ADSS anchor clamp was designed to anchor the ADSS fiber cable on overhead telecommunication lines. The Tension Anchor Clamp is used with the fiber cable on intermediate poles for the maximum distance of 100m.
Key Features:
Tool free installation;
Self-adjusting wedges;
No cable jacket damages;
Open bail for rapid installation;
Anti dropoff design.
Specification:
|
Product Item |
Type |
Material |
Cable Size,mm |
MBL,KN |
|
ADSS anchor clamp |
PA-37 |
UV resistant plastic |
3-7 |
2.5 |
|
PA-69 |
6-9 |
2.5 |
||
|
PA-610 |
6-10 |
2.5 |
||
|
PA-300 |
4-8 |
3.5 |
||
|
PA-500 |
4-8 |
3.5 |
||
|
PA-2000 |
10-15 |
10 |
||
|
PA-3000 |
8-12 |
8 |
||
|
PA-3001 |
12-16 |
8 |
||
|
PA-3002 |
16-20 |
8 |
