Description
Discription:

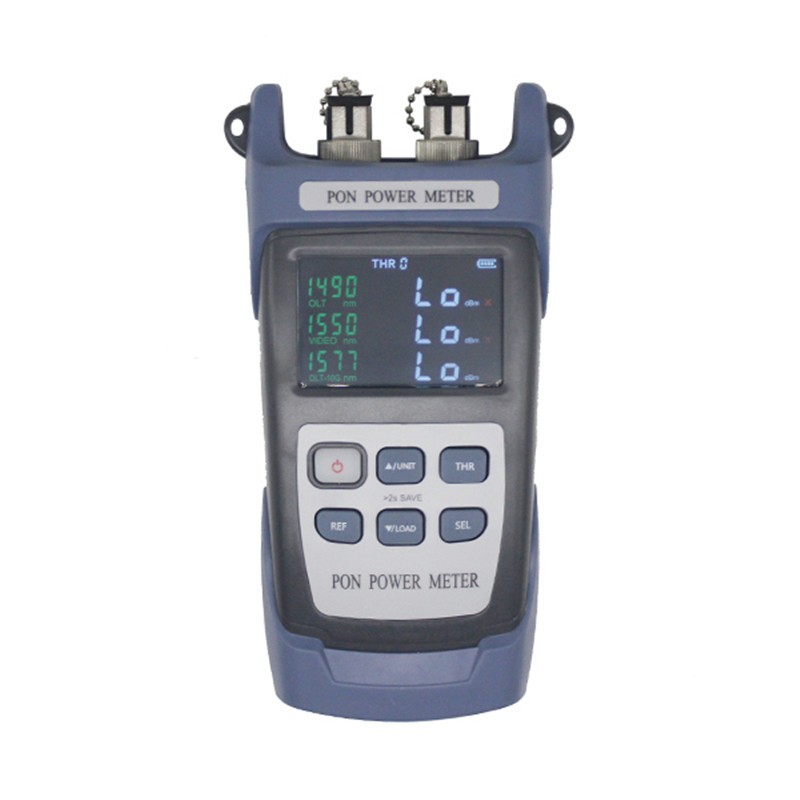

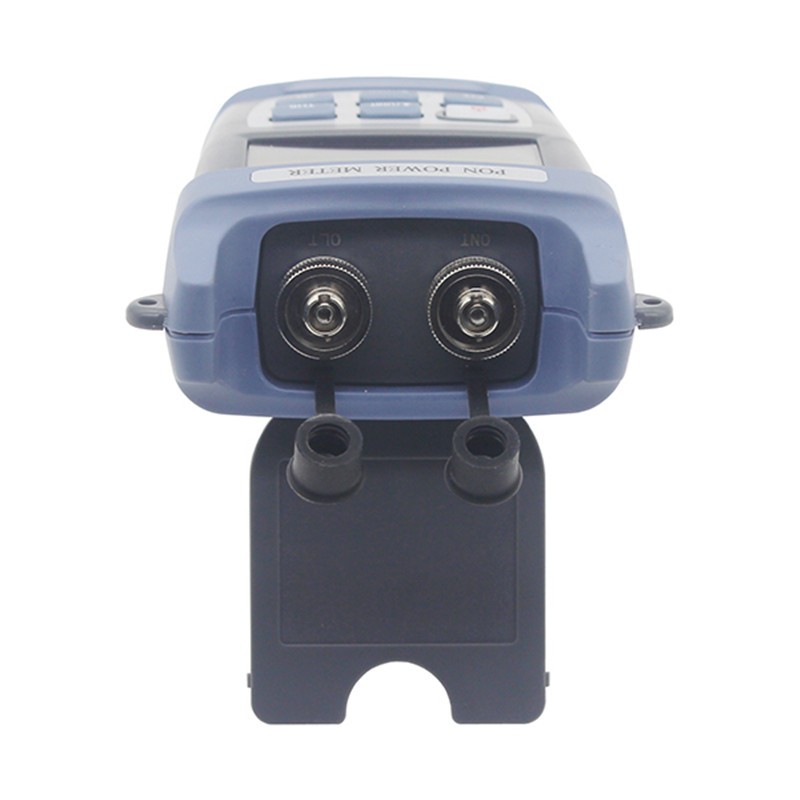

QH59 10G PON Power Meter is used to measure optical power of downstream signal of 1490nm, 1550nm and 1577nm in 10G EPON/XGPON.
Feature:
Automatic wavelength recognition;
Support automatic shutdown and backlight switch;
Support simultaneous display of linear nW and non-linear dBm.
Specification:
|
Application Scenarios |
GPON/EPON |
10G EPON/XGPON |
RF |
|
Measuring Range |
1490nm |
1577nm |
1550nm |
|
Isolation |
>35dB |
>35dB |
>35dB |
|
Measuring Range |
-40dBm~+10dBm |
-40dBm~+10dBm |
-40dBm~+26dBm |
|
Uncertainty |
±0.5dB |
||
|
Detector Type |
InGaAs |
||
|
Resolution |
Linear display: 0.1%, logarithmic display: 0.01dBm |
||
|
Automatic Shutoff Time |
10min |
||
|
Power supply |
3*AA dry battery or Lithium battery (2400mAh) |
||
|
Continuous Working Time |
72h (OPM testing) |
||
|
Dimension |
186*100*50mm |
||
|
Weight |
240g |
||
|
Operating Temperature |
-10 to +50℃ |
||
|
Storage Temperature |
-40 to +70℃ |
||
|
Relative Humidity |
0~95% (non-condensing) |
||
Standard Accessories:

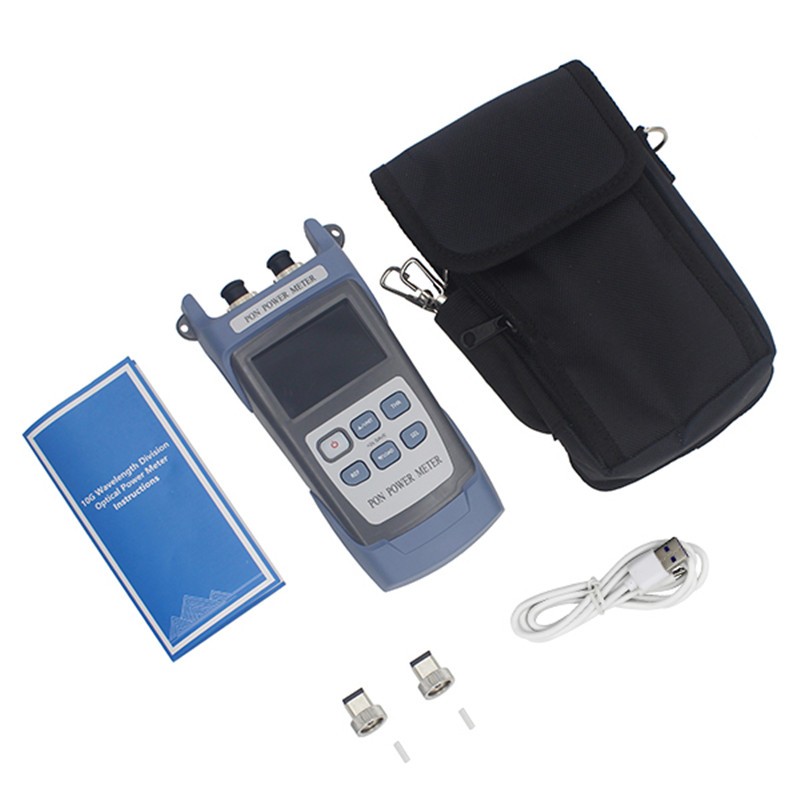

1. PON Power Meter with SC Adapters Attached and Dry Batteries:
|
Item |
Name |
Quantity |
|
1 |
PON Power Meter with SC Adapters |
1pc |
|
2 |

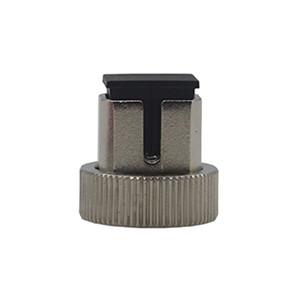

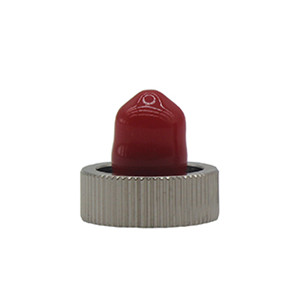

FC Adapters |
2pcs |
|
3 |
AA Dry Battery |
3pcs (for dry battery model) |
|
4 |
User manual |
1pc |
|
5 |
Soft bag |
1pc |

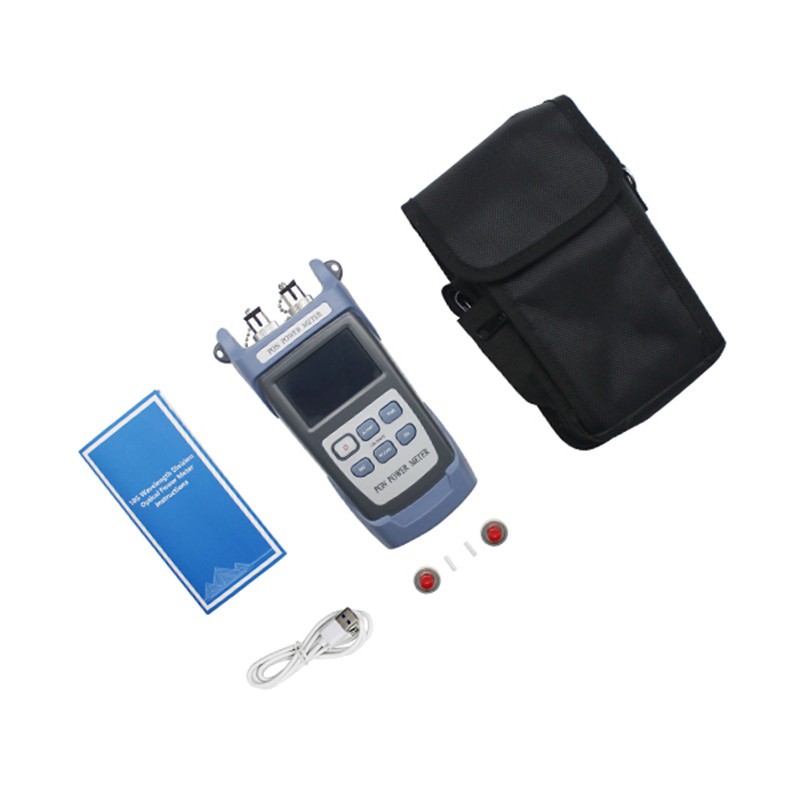

2. PON Power Meter with FC Adapters Attached and Dry Batteries:
|
Item |
Name |
Quantity |
|
1 |
PON Power Meter with FC Adapters |
1pc |
|
2 |
SC Adapters |
2pcs |
|
3 |
AA Dry Battery |
3pcs (for dry battery model) |
|
4 |
User manual |
1pc |
|
5 |
Soft bag |
1pc |
3. PON Power Meter with SC Adapters Attached and Lithium Battery:
|
Item |
Name |
Quantity |
|
1 |
PON Power Meter with SC Adapters |
1pc |
|
2 |
FC Adapters |
2pcs |
|
3 |
2400mAh Lithium Battery |
1pc (for Lithium battery model) |
|
4 |
Data Line |
1pc (for Lithium battery model) |
|
5 |
User manual |
1pc |
|
6 |
Soft bag |
1pc |
4. PON Power Meter with FC Adapters Attached and Lithium Battery:
|
Item |
Name |
Quantity |
|
1 |
PON Power Meter with FC Adapters |
1pc |
|
2 |
SC Adapters |
2pcs |
|
3 |
2400mAh Lithium Battery |
1pc (for Lithium battery model) |
|
4 |
Data Line |
1pc (for Lithium battery model) |
|
5 |
User manual |
1pc |
|
6 |
Soft bag |
1pc |

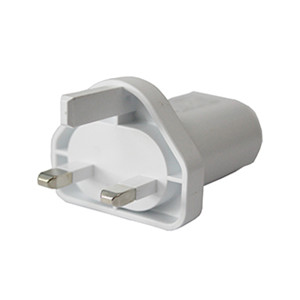

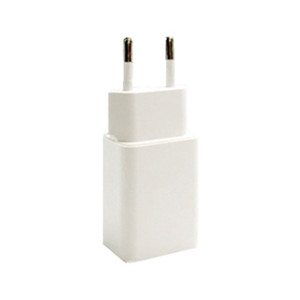

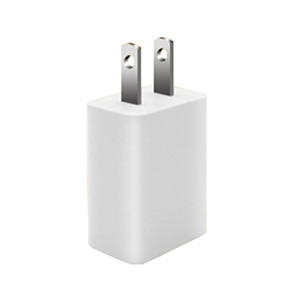

Optional Accessories:
|
1 |
AC/DC power adapter (UK, EU or US for option) |
1pc (for Lithium battery model) |
Ordering Information:
Model: QH59X-X-X
|
Model |
X: Polish Type |
X: Battery |
X: Adapters Attached on PPM |
|
QH59 |
U: UPC |
D: Dry Battery |
SC: SC Adapters |
|
A: APC |
L: Lithium Battery |
FC: FC Adapters |
