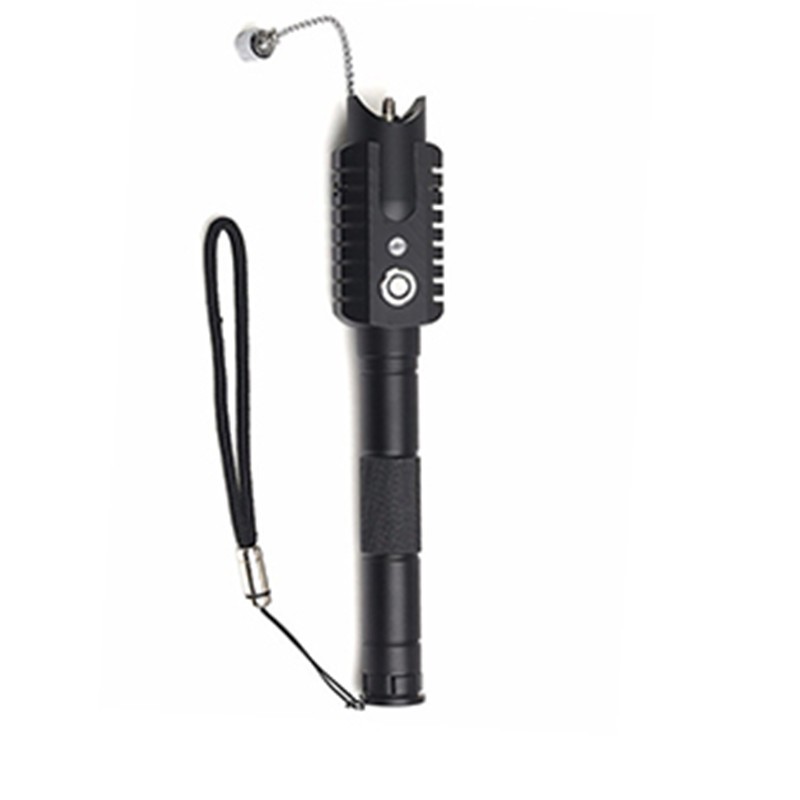

Description
Features:
Red laser at 650nm
Pulsed and CW operation
Standard AAA alkaline batteries
Suitable for SM and MM fibers
Long battery life (up to 60 hours)
Drop resistant and dust-proof design of laser head
adopt high quality triangular laser chip, life 8000-12000 hours
Use APC circuit, constant power output and battery pack design
Low power LED display, display more intuitive
Three working modes: on, flash (9hz), slow flash (3 hz)
Housing of aluminum alloy, the surface of anodic oxidation bright black, and buttons of stainless steel 316
Applications:
Maintenance in telecom and CATV
Test Lab of optical fibers
Fiber routing and continuity checking in optical networks
Specification:
|
Model |
QH62-40 |
QH62-50 |
|
Output Power |
>40mW |
>50mW |
|
Distance |
>35km |
>40km |
|
Wavelength |
650nm ± 10nm |
|
|
Emitter type |
FP-LD |
|
|
Operation Mode |
Pulsed (2Hz to 3Hz / 9Hz) and CW |
|
|
Connector |
2.5mm universal adapter (SC/FC/ST/E2000, etc.) |
|
|
Power supply |
2*AA alkaline batteries |
|
|
Size |
22*3.5*2.6cm |
|
|
Weight |
155g (without battery) |
|
|

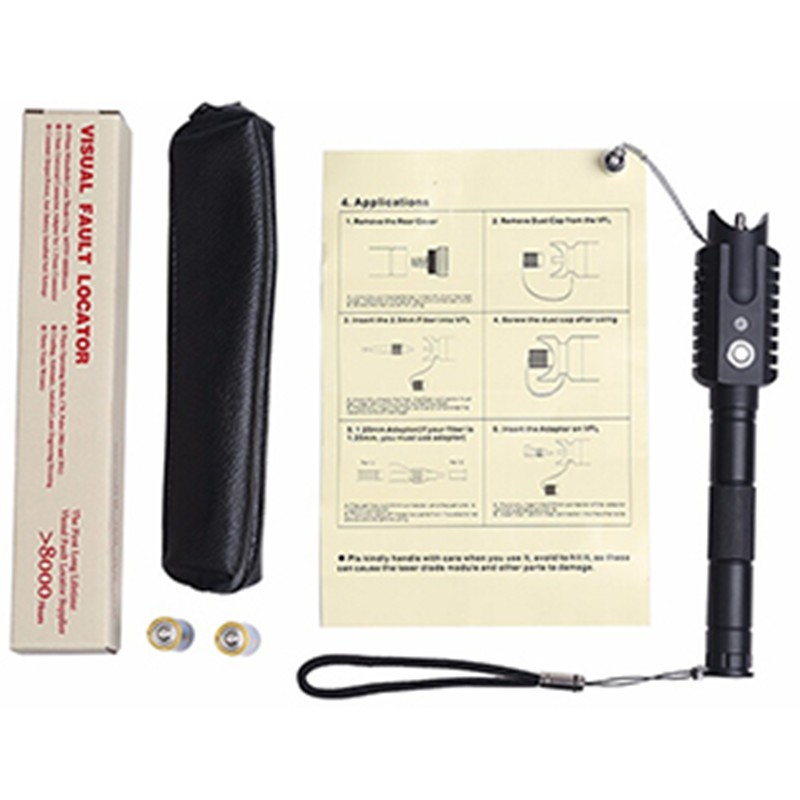

Standard Accessories: User manual, soft bag |
||
|

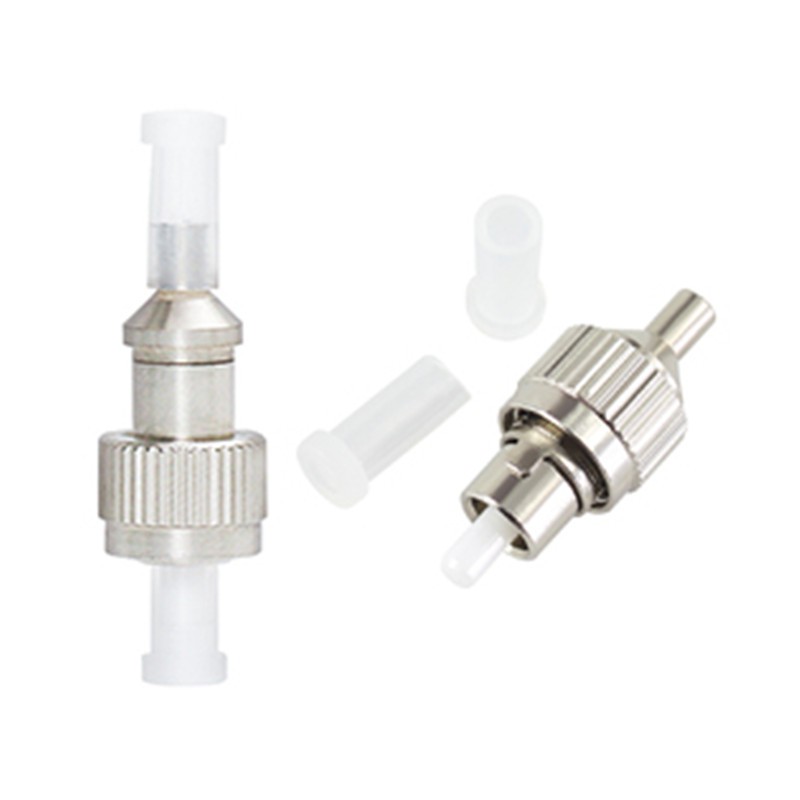

Optional Accessories: 1.25mm conversion adapter for LC connector |
||
