Description：

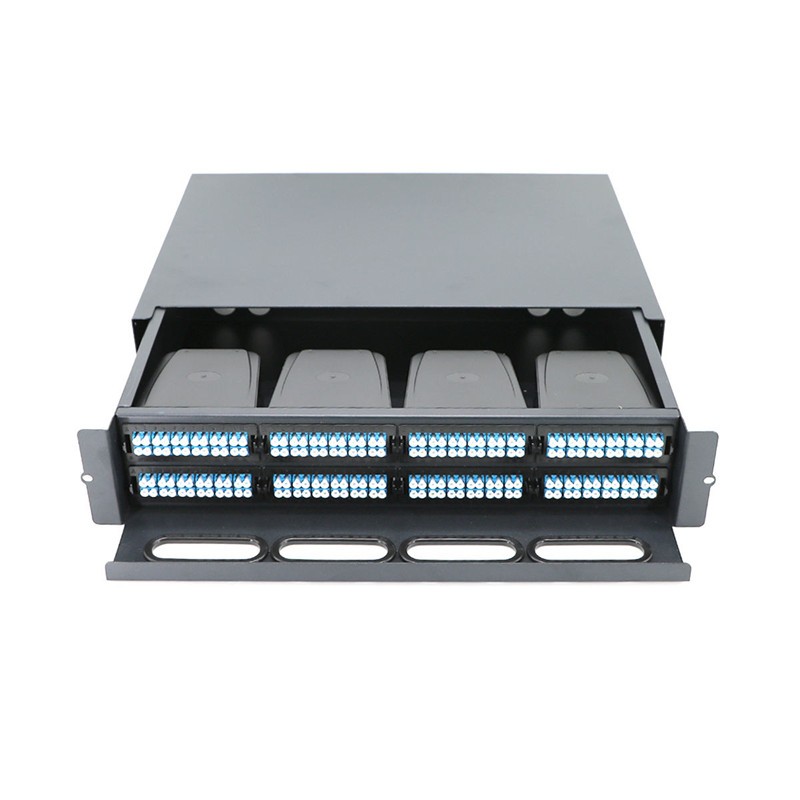

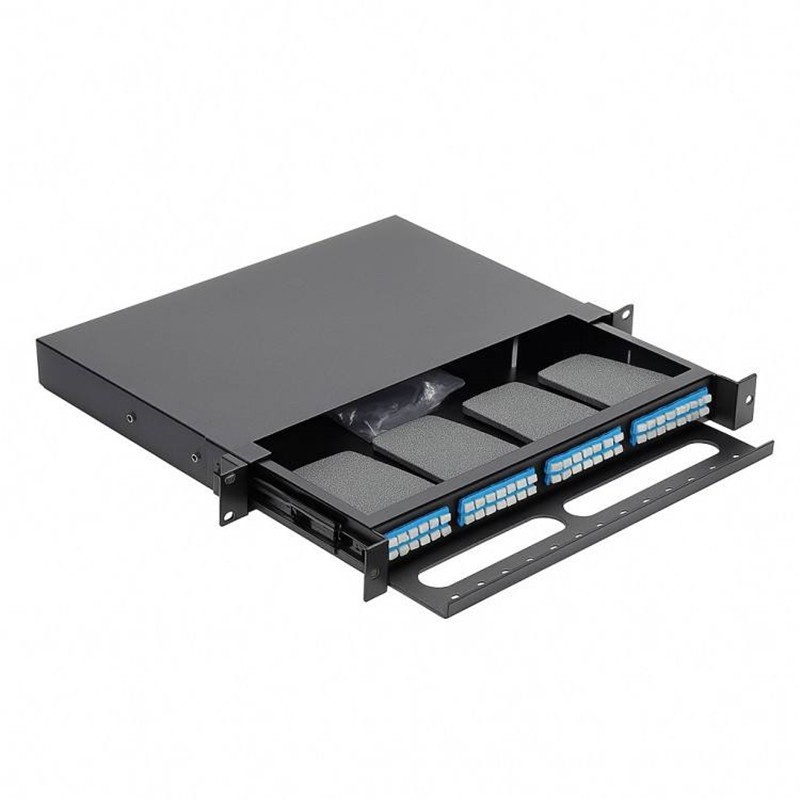

MP1 sliding MPO/MTP patch panel is designed for high density application with MPO/MTP module. The patch panel is equipped with a front cable tray for the capacity of 96 cores, and can be configured with 12-core or/and 24-core cassettes. It is mainly installed for the high-density fiber cabling systems, fast cabling systems, backbone networks, data centers, SAN systems, etc.
Features：

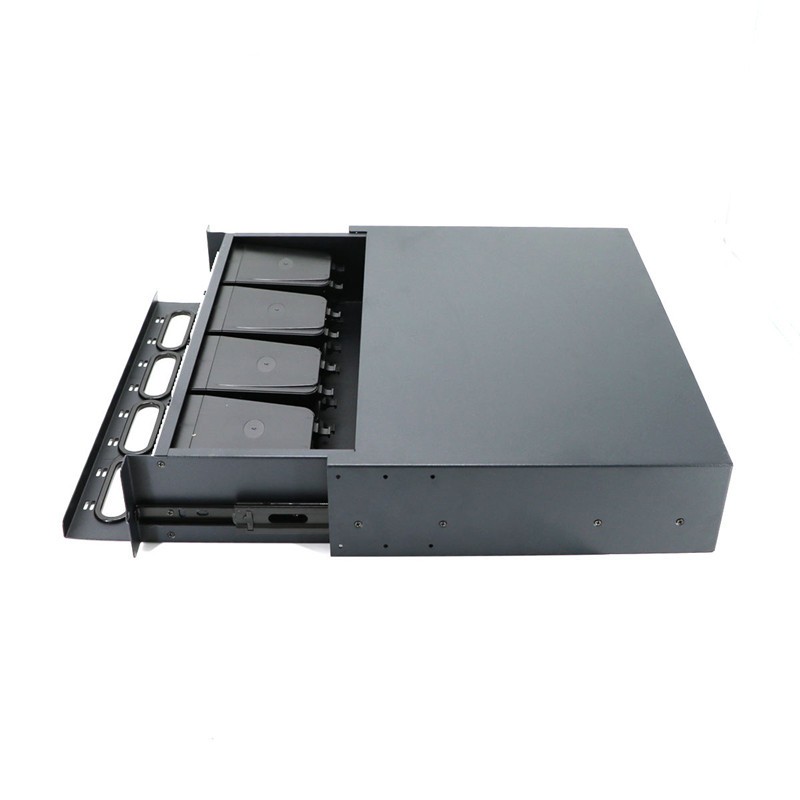

* Guide rail on both sides for smooth sliding, convenient for installation and maintenance.
* The pre-connectorized modular cassettes is configured for quick wiring replacement.
* The capacity up to 96 cores with 4 units of 24-core cassette.

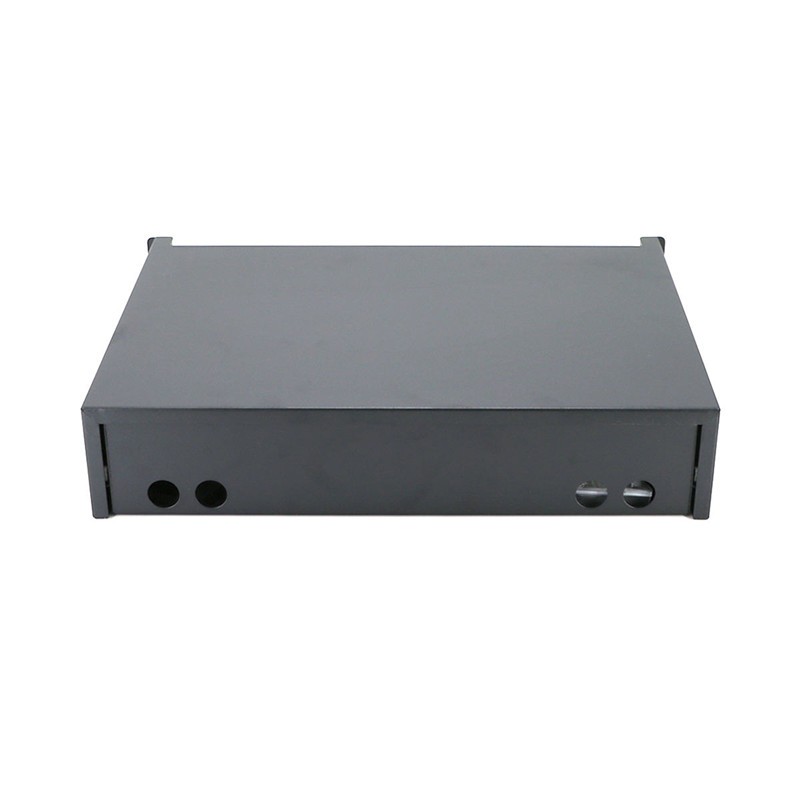

* Enough cable inlets are designed on the rear of the patch panel for cable leading.
* The shell made of the cold rolled steel sheet with electrostatic sprayed surface, anti-corrosion.
Cassette Information：
|
6 Ports cassette |
6 SC SX port for flangeless adapter |
|
2 MPO port on the rear |
|
|
6 LC DX port for flangeless adapter |
|
|
2 MPO port on the rear |
|
|
6 Ports cassette |
12 SC SX port for flangeless adapter |
|
2 MPO port on the rear |
|
|
12 LC DX port for flangeless adapter |
|
|
2 MPO port on the rear |
