Description

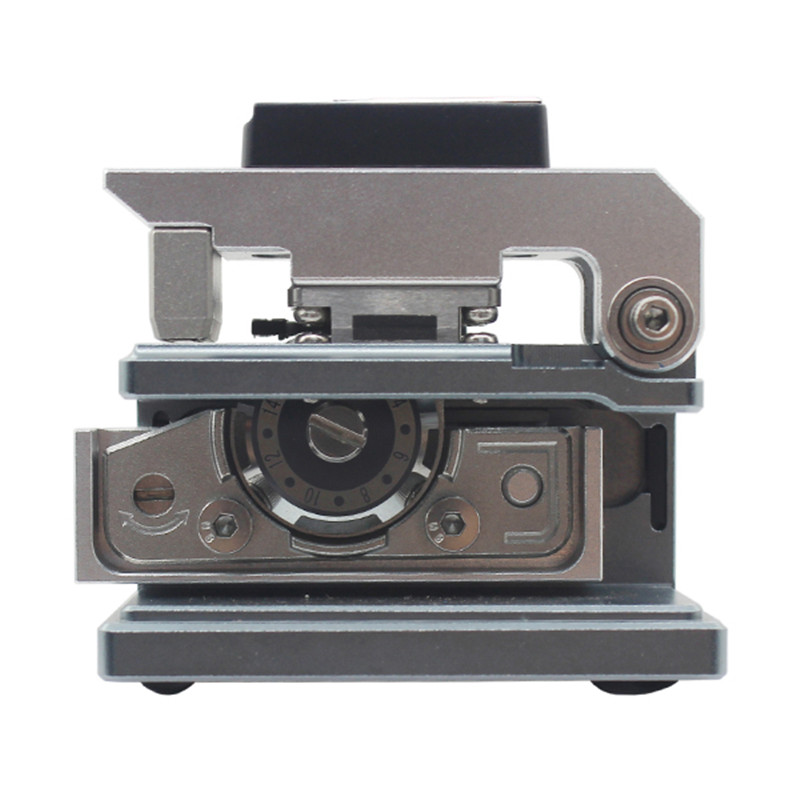

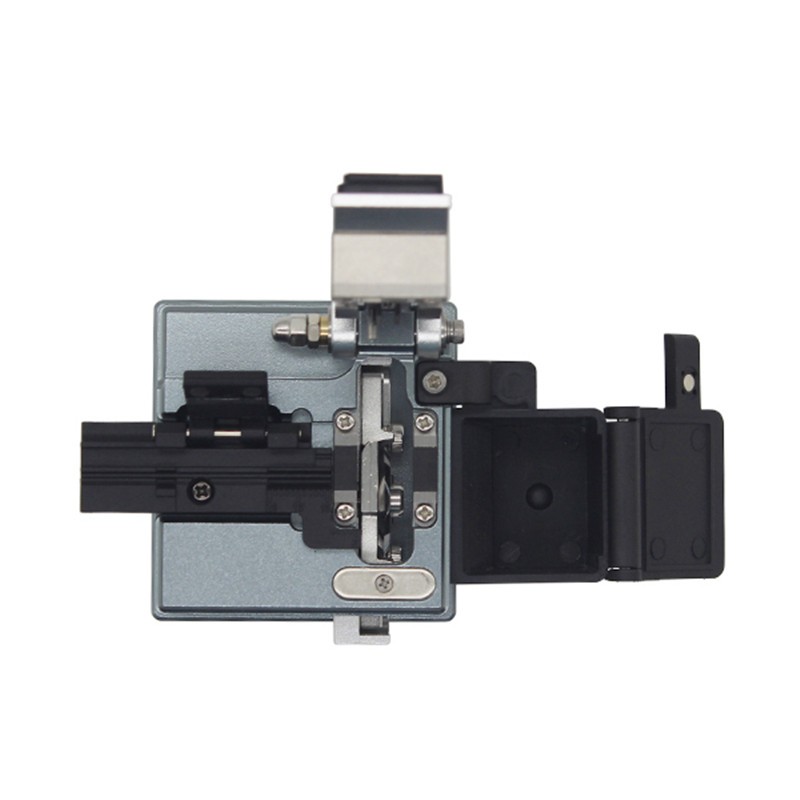

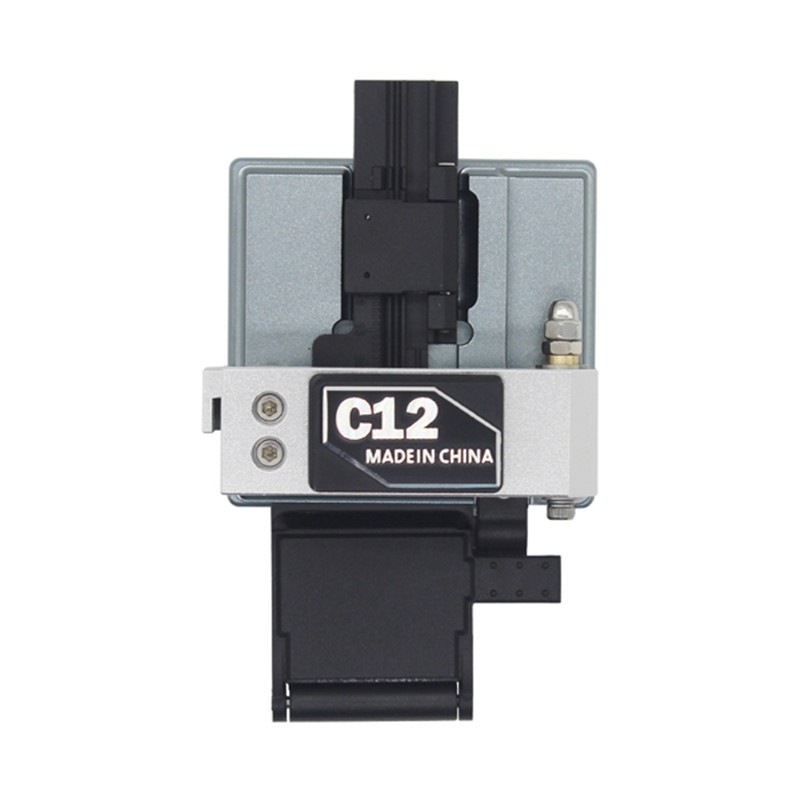

C12 High Precision Fiber Cleaver is a high precision single fiber cleaver. It is a reliable cleaver for fiber optic network and FTTx FTTH applications. It contains 16-position blade and performs 32,000 times single fiber cleaves. A hexagonal wrench allows you to adjust the cleaver blade flexibly.
Features:
· Two steps operation, when the cover is opened, the slider returns to cleaving position automatically.
· Compact design
· High reliability
· Good cleaving performance
· 32,000 times cleave per blade
· High stability and precision
Applications:
· FTTx construction
· Optical network construction
· LAN, WAN, and Metro networks
· CATV networks
Specifications:
|
Fiber Type |
single fiber |
|
Cladding Diameter |
125um |
|
Fiber Diameter |
250um/900um/2mm/3mm/2*3mm flat drop cable |
|
Cleave Angle Capability |
averagely ≤0.8˚ |
|
Cleave Length |
5~20mm |
|
Blade Lifetime |
32,000 fiber cleaves (1,000 times*16 positions*2 blade heights) |
|
Dimension |
67W*59D*55H (mm) |
|
Net Weight |
235g |
|
Plastic Box Size |
114W*102D*65H (mm) |
|
Gross Weight |
370g |

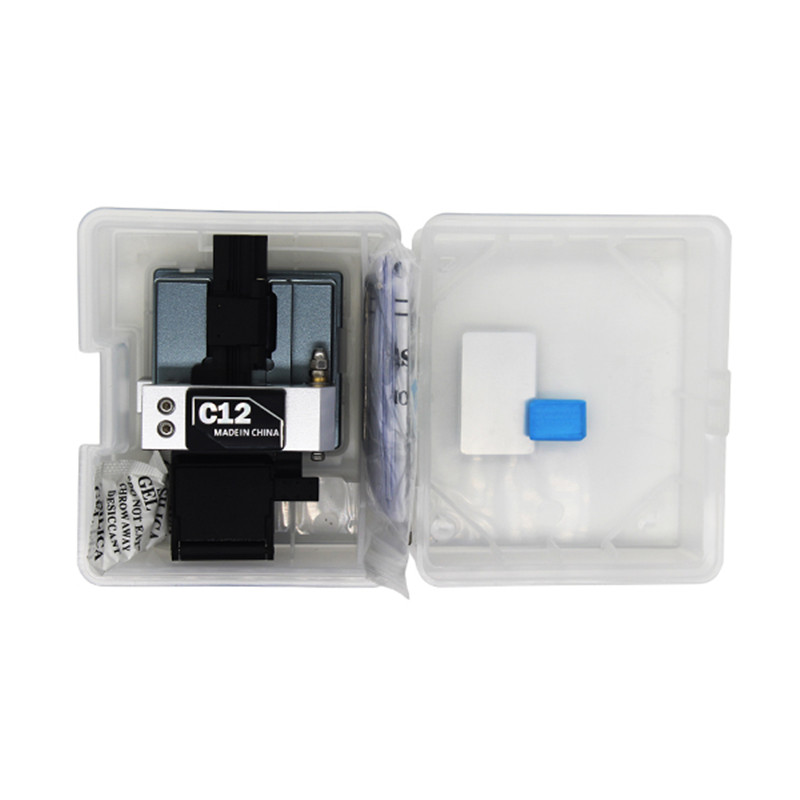

Standard Accessories:
|
Item |
Name |
Quantity |
|
1 |
C12 High Precision Fiber Cleaver with 1pc of Blade |
1pc |
|
2 |
Fiber Collector |
1pc |
|
3 |
Hexagonal Wrench |
1pc |
|
4 |
User Manual |
1pc |
|
5 |
Plastic Box |
1pc |
Ordering Information:
|
Model |
Name |
Description |
|
C12 |
High Precision Fiber Cleaver |
with fiber collector |
|
CB-11 |
Replacement Blade |
16 positions |
