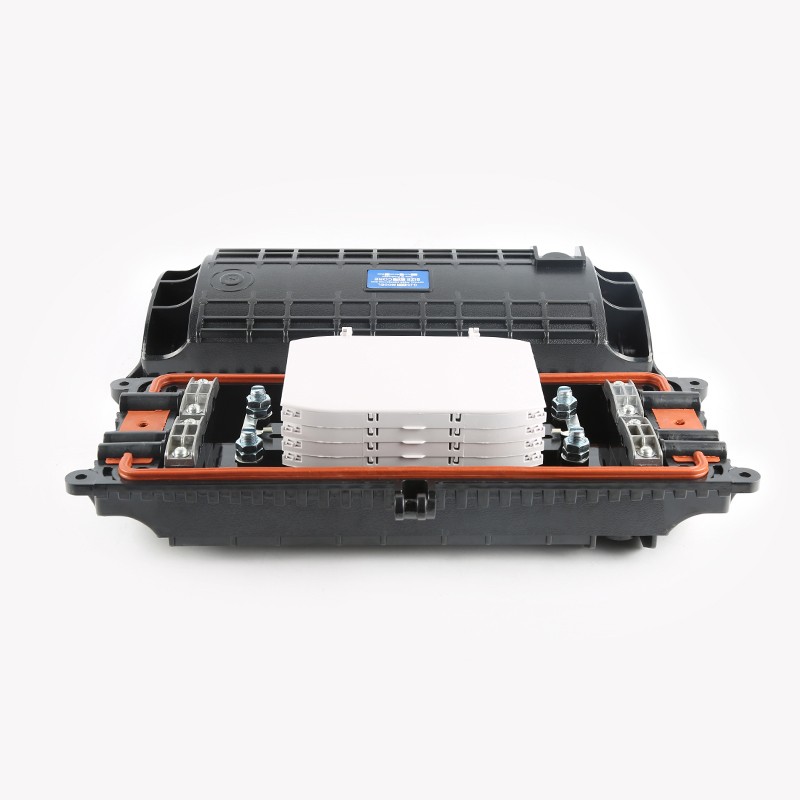

Main Features of H96C05 caja
Made of high quality engineer plastic material ,Good mechanical strength, Elegant appearance, sturdiness and durability.
Suitable for indoor or outdoor ,wall-mounted , pole installation.

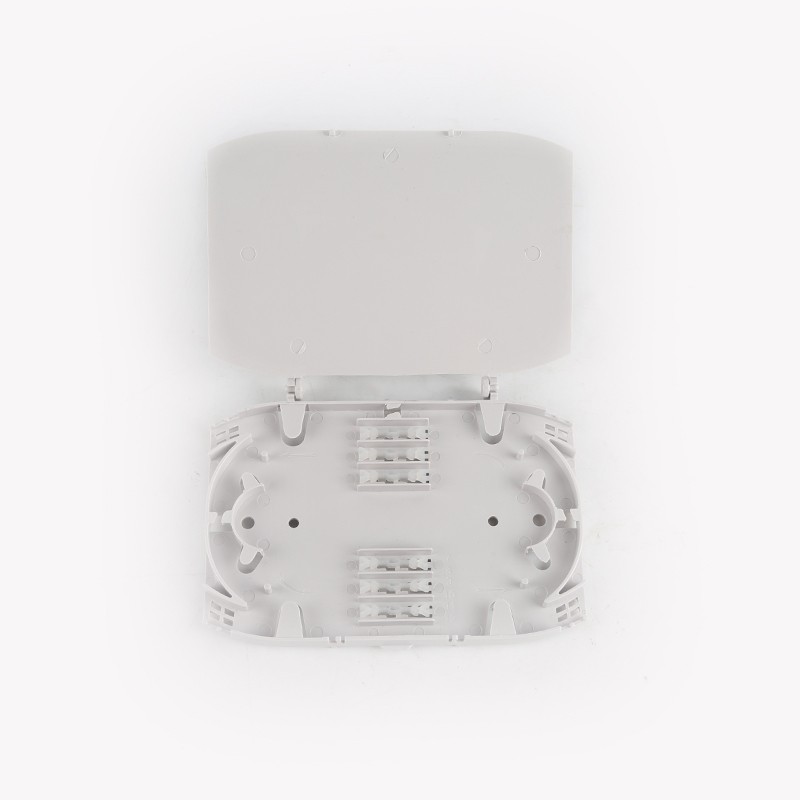

Built-in Stacked splice tray, easy for open, the splice tray can be taken down, easy for installation and maintenance.
Fiber routing is reasonable.
Clamping for fiber splicing, fixation, storage, distribution...etc all in one.
Applicable environment
Operating temperature：-40℃～+65℃
Relative humidity：≤85% (+30℃)
Atmospheric pressure：70Kpa～106Kpa
Protection class:IP68
Dimension and capacity
|
Outside dimension (LxWxH) |
390×210×120 |
|
Weight (excluding outside box) |
1900g-2100g |
|
Number of inlet/outlet ports |
6 ports |
|
Diameter of fiber cable |
Φ7—Φ16(mm) |
|
Capacity of FOSC |
Bunchy: 6—96(Cores) Ribbon: max. 144 (Cores) |
Main accessories
|
No. |
Name of accessories |
Quantity |
Usage |
Remarks |
|
1 |
Heat shrinkable protective sleeve |
|
Protecting fiber splices |
Configuration as per capacity |
|
2 |
Nylon tie |
|
Fixing fiber with protective coat |
Configuration as per capacity |
|
3 |
Insulation tape |
1 roll |
Enlarging diameter of fiber cable for easy fixing |
|
|
4 |
Seal tape |
1 roll |
Enlarging diameter of fiber cable which fits in with seal fitting |
Configuration as per specification |
|
5 |
Hanging hook |
1 set |
For aerial use |
|
|
6 |
Earthing wire |
1 piece |
Putting through between earthing devices |
To put through as per actual requirement |
|
7 |
Abrasive cloth |
1 piece |
Scratching fiber cable |
|
|
8 |
Labeling paper |
1 piece |
Labeling fiber |
|
|
9 |
Special wrench |
3 pieces |
Fixing bolts, tightening nut of reinforced core |
|
|
10 |
Measuring paper |
1 piece |
To measure perimeter of fiber cable, of which the diameter is enlarged with seal tape |
|
|
11 |
Buffer tube
|
To be decided by customers |
Hitched to fibers and fixed with FOST, managing buffer |
Configuration as per requirement |
|
12 |
Desiccant |
1 bag |
Put into FOSC before sealing for desiccating air. |
|
