Description
QH630 OTDR is a new generation of portable and intelligent measuring instrument for testing fiber optic communication system. It adopts 7 inch capacitive touch screen and integrates NINE major functional modules, which help customers effectively solve the field testing and maintenance.
It is mainly used to measure the length, loss and connection quality of optical fibers and cables, and can be widely used in engineering construction, network maintenance and testing, emergency repair, and the development and production of optical fibers and cables.
The highest 45dB dynamic range can penetrate optical splitters easily for PON network testing.
The design concept of multi-functional integration, precision testing and convenient operation makes the field testing simple.
Features:
Minimum 0.5m Event Dead Zone;
Online detection for APD protection;
Support fast charging protocol and power bank;
Support Ethernet test and Ethernet Remote Test;
Integrated design, smart and rugged;
Shockproof, outdoor enhancement;
Automatic and manual test function;
OTDR Viewer software for data analysis;
Support screen capature;
Mobile APP wireless operation;
Simultaneous testing of multi wavelengths;
Support Start fiber and End fiber setting.
Applications:
FTTX testing with PON networks;
CATV network testing;
Access network testing;
LAN network testing;
Metro network testing;
Laband Factory testing;
FTTA troubleshooting.

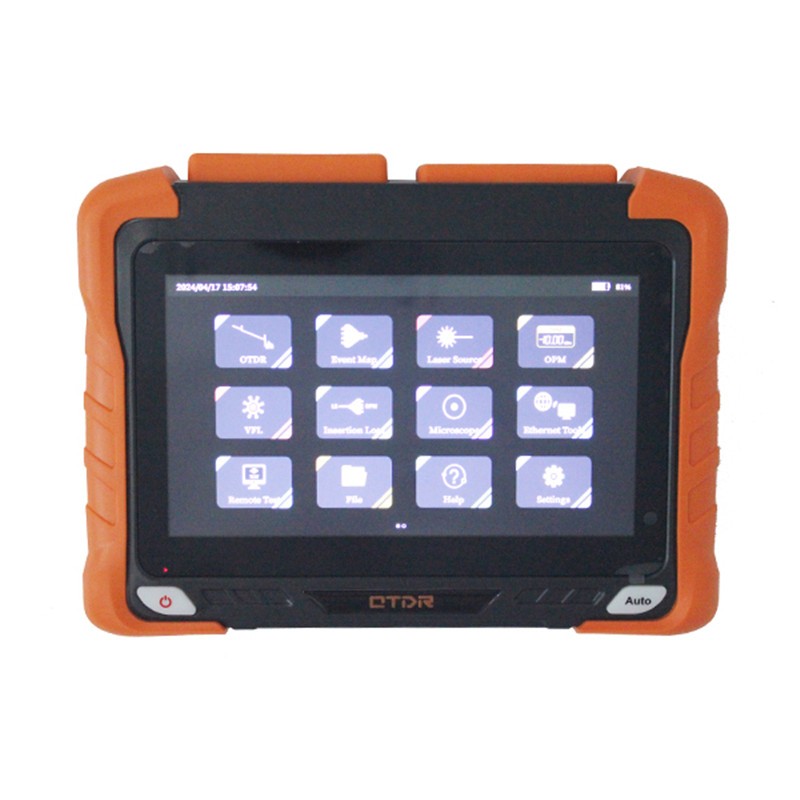

Multi-functions:
1. OTDR
2. Event Map:Event Map can display events in user-friendly icons.
3. Laser Source
4. Optical Power Meter (OPM)
5. Visual Fault Locator (VFL):Visual Fault Locator uses red laser of 650nm to locate broken fiber point and test fiber continuity.
6. Insertion Loss:OPM and OLS can be opened at the same time to test insertion loss.
7. Fiber Inspection:Fiber Inspection is used to check fiber optic connector endface. The inspection probe is sold seperately.
8. Ethernet Tools:It supports PING, PPPOE, and IP Scan.
9. Remote Test:Computer connects with OTDR via Ethernet and the software in the computer realizes remote control such as parameter distribution, start-up test and graphic display.
10. Report Print:PC software helps print out OTDR test reports. It supports files batch processing.
11. File Management:It can provide “computer-level” file management.
Specification:
1. OTDR
|
Model |
D32 |
D35 |
D38 |
D42 |
D45 |
MD28 |
MQ28 |
MQ29 |
|
Fiber Type |
SMF |
MMF |
SMF/MMF |
|||||
|
Wavelength |
1310/1550nm |
850/1300nm |
850/1300/1310/1550nm |
|||||
|
Dynamic Range |
32/30dB |
35/33dB |
38/36dB |
42/40dB |
45/43dB |
26/28dB |
26/28/35/33dB |
26/28/37/35dB |
|
Event Dead Zone |
0.8m |
0.8m |
0.5m |
0.5m |
0.5m |
1m |
1m |
1m |
|
Attenuation Dead Zone |
4m |
4m |
3.5m |
3.5m |
3.5m |
6m |
6m |
6m |
|
Measurement Range |
0.1/0.5/1.25/2.5/5/10/20/40/80/125/260/420km |
|||||||
|
Measurement Pulse Width |
3/5/10/20/30/50/80/100/200/300/500/800/1000/2000/3000/5000/8000/10000/20000ns |
|||||||
|
Ranging Accuracy |
±(0.75+Sampling interval+0.0025%*Test distance) |
|||||||
|
Loss Accuracy |
0.03dB/dB |
|||||||
|
Sampling Points |
≥256,000 points |
|||||||
|
Sampling Resolution |
0.015~16m |
|||||||
|
Reflection Accuracy |
±2dB |
|||||||
|
Loss Resolution |
±0.001dB |
|||||||
|
Loss Threshold |
0.01dB |
|||||||
|
File Format |
SOR standard file format |
|||||||
|
Loss Analysis |
4-point method / 5-point method |
|||||||
|
Laser Safety Level |
Class II |
|||||||
|
Refresh Rate |
4Hz (Typ.) |
|||||||
|
Adapter |
FC (Interchangeable SC adapter) |
|||||||
|
Language |
Chinese, English, Russian, Portuguese, Spanish, French (Select two languages) |
|||||||
2. Optical Power Meter
|
Wavelength Range |
800~1700nm |
|
Calibrated Wavelength |
850/1300/1310/1490/1550/1625/1650nm |
|
Test Range |
Type A: -50~+26dBm (standard); |
|
Resolution |
0.01dB |
|
Uncertainty |
±5% |
|
Connector |
Universal 2.5mm (FC/SC/ST) |
3. Optical Light Source
|
Laser Type |
FP-LD |
|
Working Wavelength |
Same as OTDR output wavelength |
|
Output Power |
≥-5dBm |
|
Mode |
CW/270Hz/1kHz/2kHz |
|
Accuracy |
CW, ±0.5dB/15min (Test after 15 minutes of boot-up preheating) |
|
Connector |
FC (SC interchangeable) |
4. Visual Fault Locator
|
Wavelength |
650nm±20nm |
|
Power |
≥10mW |
|
Mode |
CW/1Hz/2Hz |
|
Connector |
Universal 2.5mm (FC/SC/ST) |
5. Fiber Optic Microscope (FIM) (Optional):
|
Magnification |
400X |
|
Resolution |
0.5µm |
|
Focus Control |
manual |
|
Dimension |
210×56×50mm |
|
Weight |
500g |
|
Interface |
USB |
|
Adapter |
2.5-U-M (For 2.5mm connector, SC/PC, FC/PC, ST/PC, E2000/PC) |
Optional Tips for Fiber Optic Microscope (FIM):
|
Name |
Quantity |
|
FC-U-F (For FC/PC adapter) |
1pc |
|
ST-U-F (For ST/PC adapter) |
1pc |
|
2.5-A-M Tip (For 2.5mm APC connector, SC/APC, FC/APC, ST/APC, E2000/APC) |
1pc |
|
1.25-A-M (For 1.25mm APC connector, LC/APC) |
1pc |
|
FC-A-F Tip (For FC/APC adaptor) |
1pc |
|
SC-A-F Tip (For SC/APC adaptor) |
1pc |
|
LC-A-F Tip (For LC/APC adaptor) |
1pc |
Other Specification:
|
Display |
7 inch color LCD with capacitive touch screen, resolution: 800*480 |
|
Power Supply |
Type-C adapter, input: 100~240V, 50/60Hz, Output: 5V/3A, 9V/2A, 12V/1.5A, Lithium battery: 3.7V 10400mAh |
|

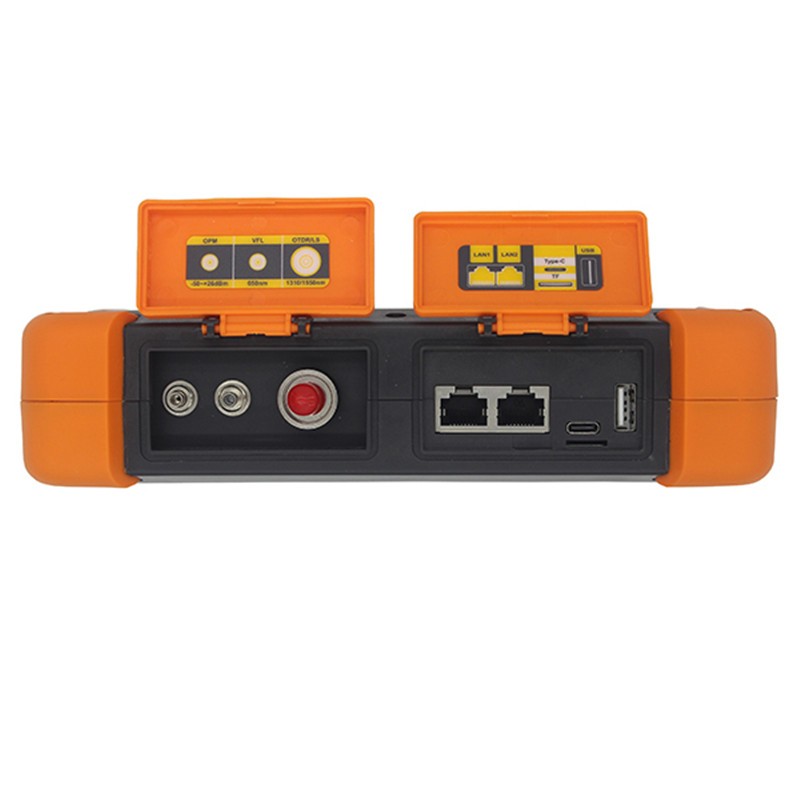

Data Interface |
USB-A, Type-C port, RJ45 LAN 10/100Mbit/s |
|
Data Storage |
Internal storage: 2GB, 20,000 curves; external storage: 64GB |
|
Weight |
1.2kg |
|
Size |
215*160*50mm |
|
Operating Temperature |
-10 ~ +50°C |
|
Storage Temperature |
-40 ~ +70°C |
|
Relative Humidity |
< 95% Non-condensation |

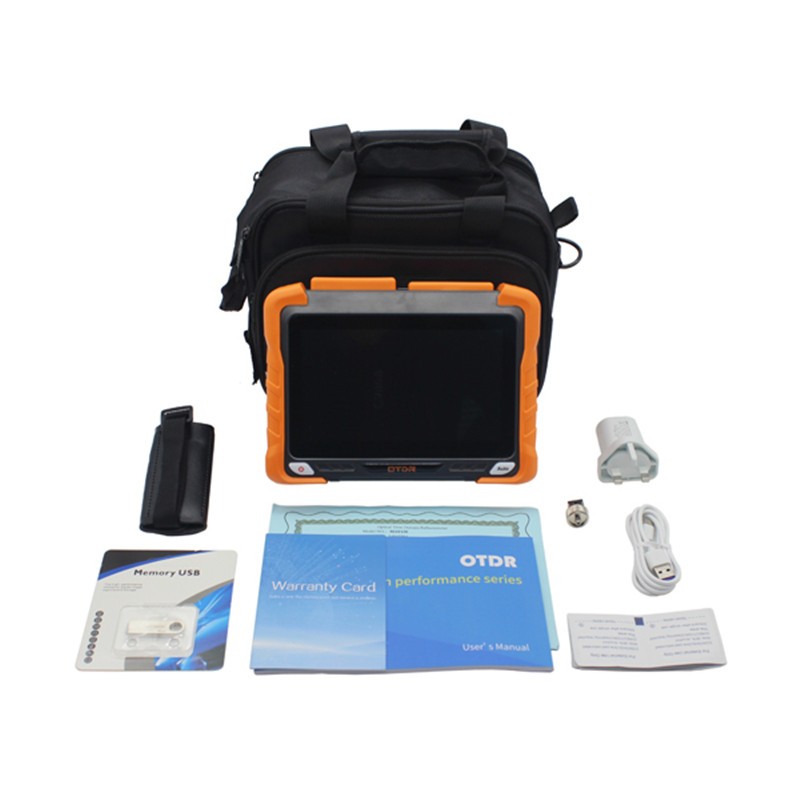

Accessories:
|
Item |
Name |
Quantity |
|
1 |
OTDR with FC adapter |
1pc |
|
2 |
AC/DC power adapter |
1pc |
|
3 |
Wrist Strap |
1pc |
|
4 |
U disk (including simulation analysis software and User manual) |
1pc |
|
6 |
Data line |
1pc |
|
7 |
OTDR SC adapter |
1pc |
|
8 |
User manual |
1pc |
|
9 |
Calibration Certificate |
1pc |
|
10 |
Carrying bag |
1pc |
Optional Accessories:
|
Item |
Name |
Quantity |
|
1 |
ST Adapter for OTDR Port |
1pc |
|
2 |
LC Adapter for OTDR Port |
1pc |
|
3 |
