Description

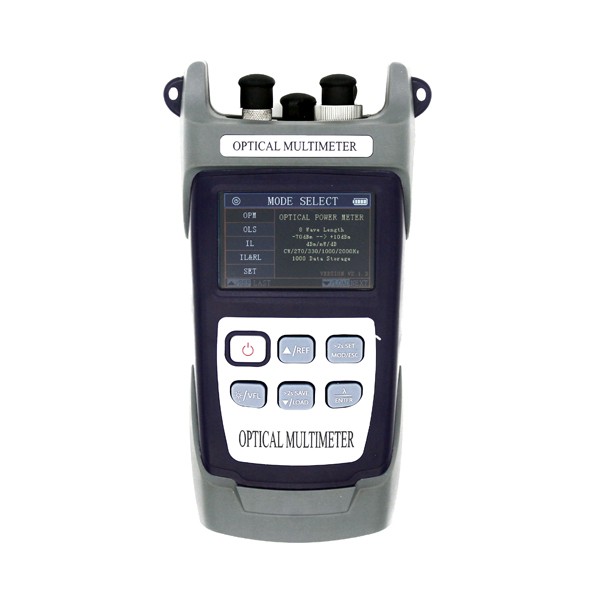

QH110 Insertion and Return Loss Tester is used for measuring optical power, outputing stabilizing light source, tesing insertion loss and return loss.
It can be used to test insertion loss and splitting ratio of passive components, like optical splitter, circulator, coupler and optical switch.
Features:
Automatic shutoff
Backlight switch, Support 4-level backlight
User calibration
Support simultaneous display of mW, dBm and dB
Automatic wavelength recogition (optional, specific LS required)
Support automatic frequency identification
Support 1,000 data storage
Support USB connection with PC for data transfer
Specification:
1. Optical Power Meter
|
Model |
QH110A |
|
Measuring Range |
-70 to +10dBm |
|
Calibrated Wavelength |
850/980/1300/1310/1490/1550/1625/1650nm |
|
Detector Type |
InGaAs |
|
Resolution |
Linear display: 0.1%, logarithmic display:0.01dBm |
|
Data Storage |
1,000 |
|
Tone Detection |
CW, 270, 330, 1k, 2kHz |
|
Uncertainty |
±5% |
|
Connector |
2.5mm universal adapter (FC/SC interchangeable) |
2. Optical Light Source
|
Wavelength |
1310/1550±20nm |
|
Emitter Type |
FP-LD |
|
Output Power |
≥-1dBm |
|
Output Stability |
±0.05dB/30min |
|
Output Frequency |
CW, 270, 330, 1k, 2kHz |
|
Power Regulation |
0~6dB, 1dB/step (-7 ~ -1dBm) |
|
Connector |
2.5mm universal adapter (FC/APC and SC/APC interchangeable) |
3. Insertion Loss Tester
|
Wavelength |
1310/1550±20nm |
|
Measuring Range |
0~70dB |
|
Accuracy |
±0.3dB |
|
Resolution |
0.01dB |
|
Connector |
FC/APC |
4. Return Loss Tester
|
Wavelength |
1310/1550±20nm |
|
Measuring Range |
0~70dB |
|
Accuracy |
±0.5dB |
|
Resolution |
0.01dB |
|
Connector |
FC/APC |
5. Visual Fault Locator
|
Wavelength |
650±30nm |
|
Output Power |
≥10mW |
|
Mode |
CW, 1Hz, 2Hz |
|
Connector |
2.5mm universal adapter (SC/FC/ST/E2000, etc.) |
Other Specification:
|
Display |
High definition color LCD |
|
Power supply |
2400mAh rechargeable battery |
|
Continuous Working Time |
12h |
|
Automatic Shutoff Time |
10min |
|
Dimension |
186*100*50mm |
|
Net Weight |
240g |
|
Operating Temperature |
-10 to +50°C |
|
Storage Temperature |
-40 to +70°C |
|
Relative Humidity |
0~95% (non-condensing) |
Standard Accessory:
|
Item |
Name |
Quantity |
|
1 |
Insertion and Return Loss Tester with FC adapters for OPM and OLS ports |
1pc |
|
2 |
User Manual |
1pc |
|
3 |
2400mAh Lithium Battery |
1pc |
|
4 |
Data Line |
1pc |
|
5 |

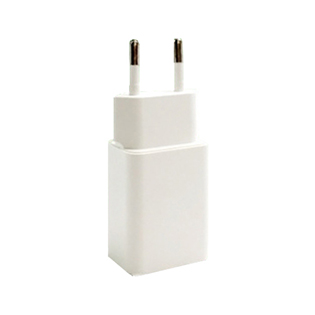

Power Adapter |
1pc |
|
6 |

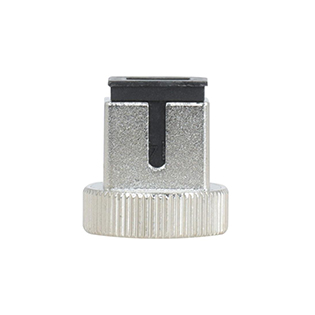

SC Adapter for OLS Port |
1pc |
|
7 |
SC Adapter for OPM Port |
1pc |
|
8 |
FC/APC-FC/UPC SM Reference Patchcord |
1pc |
|
9 |
CD with Software |
1pc |
|
10 |
Mandrel for Return Loss Testing (Stainless Steel Rod) |
1pc |
|
11 |
Soft Bag |
1pc |
