Description
Features:
Automatic shutoff
Backlight switch
User calibration
USB charging
Specification:
|
Output Wavelength |
1310/1550nm |
1310/1490/1550nm |
850/1300nm |
850/1300/1310/1550nm |
|
Fiber Type |
SM |
SM |
MM |
SM & MM |
|
Emitter Type |
FP-LD |
|||
|
Output Power |
≥-5dBm |
|||
|
Output Stability |
Short term (15 min): ±0.05dB@1310/1550nm, ±0.1dB@850/1300nm, ±0.1dB@1490nm Long term (8 hours): ±0.1dB@1310/1550nm, ±0.2dB@850/1300nm, ±0.2dB@1490nm |
|||
|
Output Frequency(Hz) |
CW, 270Hz, 1kHz, 2kHz |
|||
|
Power Regulation |
0~6dB, 1dB step |
|||
|
Automatic Shutoff Time |
10min |
|||
|
Continuous Working Time |
72h |
|||
|

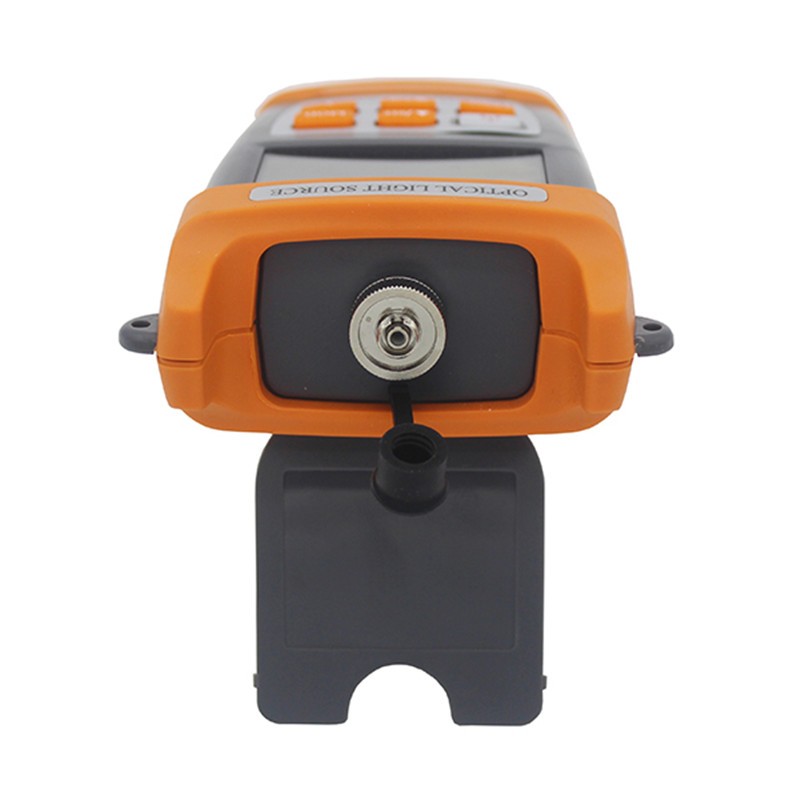

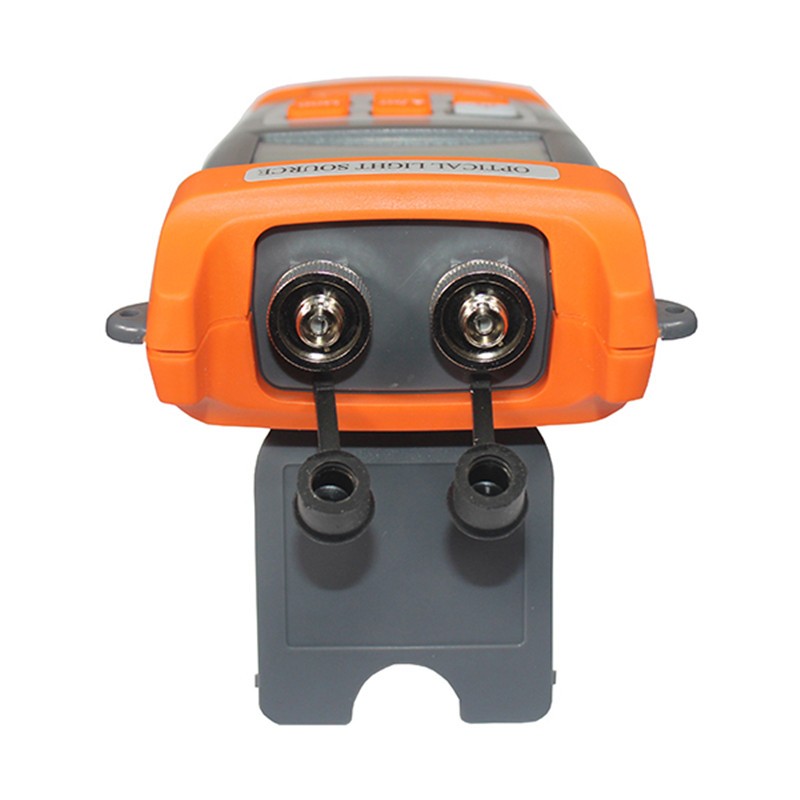

Connector |
FC/SC |
|||
|
Power supply |
3pcs*AA dry batteries or Rechargeable Lithium battery (2400mAh) |
|||
|
Dimension |
186*100*50mm |
|||
|
Net Weight |
140g |
|||
|
Operating Temperature |
-10 to +50°C |
|||
|
Storage Temperature |
-40 to +70°C |
|||
|
Relative Humidity |
0~95% (non-condensing) |
|||

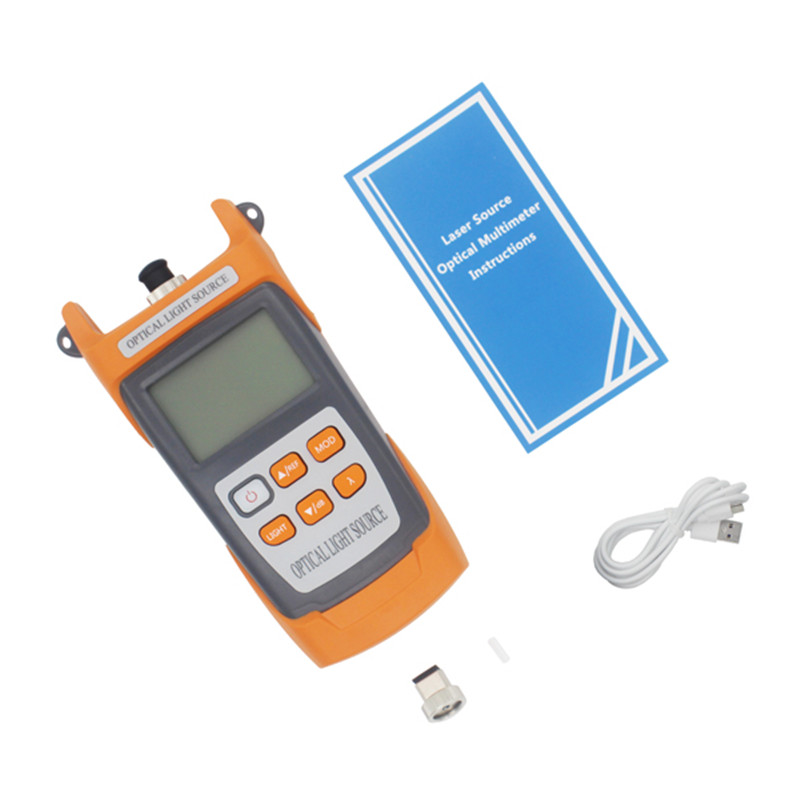

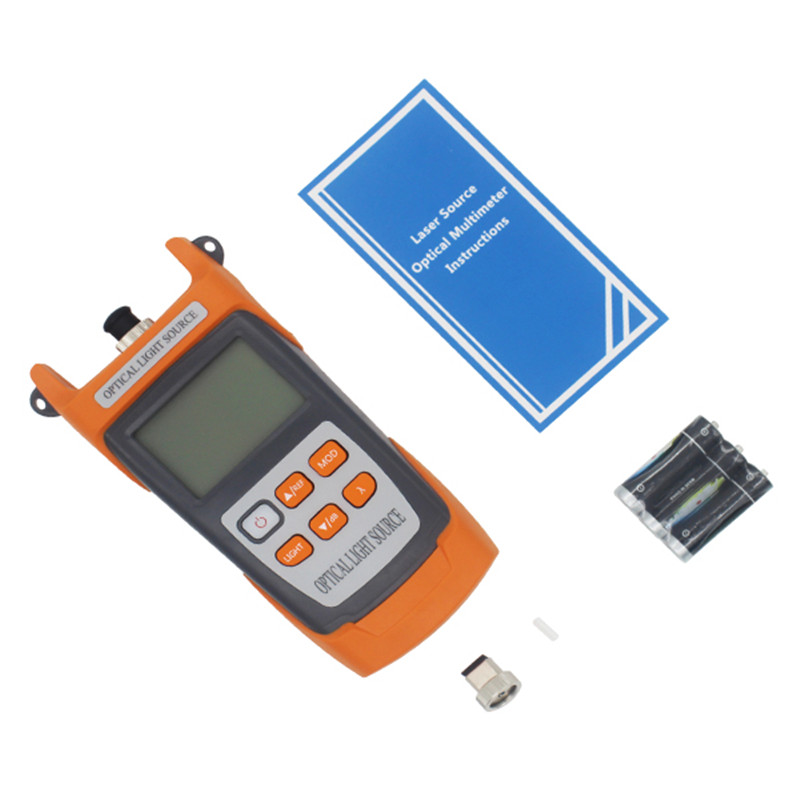

Standard Accessory for 1310/1550nm or 850/1300nm:
|
Item |
Name |
Quantity |
|
1 |
Optical Light Source |
1pc |
|
2 |
User Manual |
1pc |
|
3 |
FC Adapter |
1pc |
|
4 |
SC Adapter |
1pc |
|
5 |
AA Dry Battery |
3pcs (for dry battery model) |
|
6 |
2400mAh Lithium Battery |
1pc (for Lithium battery model) |
|
7 |
Data Line |
1pc (for Lithium battery model) |
Standard Accessory for 1310/1490/1550nm and 850/1300/1310/1550nm:
|
Item |
Name |
Quantity |
|
1 |
Optical Light Source |
1pc |
|
2 |
User Manual |
1pc |
|
3 |
FC Adapter |
2pcs |
|
4 |
SC Adapter |
2pcs |
|
5 |
AA Dry Battery |
3pcs (for dry battery model) |
|
6 |
2400mAh Lithium Battery |
1pc (for Lithium battery model) |
|
7 |
Data Line |
1pc (for Lithium battery model) |
Optional Accessory:
|
Item |
Name |
Quantity |
|
1 |
ST Adapter |
1pc |
|
2 |
Male FC to female LC adapter for LC connector |
1pc |
|
3 |
AC/DC Power Adapter |
1pc (for Lithium battery model) |
|
4 |
Soft Bag |
1pc |
Ordering Information:
Model: QH30X-X-X
|
Model |
X: Output Wavelength |
X: Battery |
X: Interface |
|
QH30 |
S: 1310/1550nm |
D: Dry Battery |
None: UPC (default) |
|
M: 850/1300nm |
L: Lithium Battery |
A: APC |
|
|
T: 1310/1490/1550nm |
|
|
|
|
Q: 850/1300/1310/1550nm |
|
|
Note: Optical port for 850/1300nm is UPC interface.
