English
Description
Description:

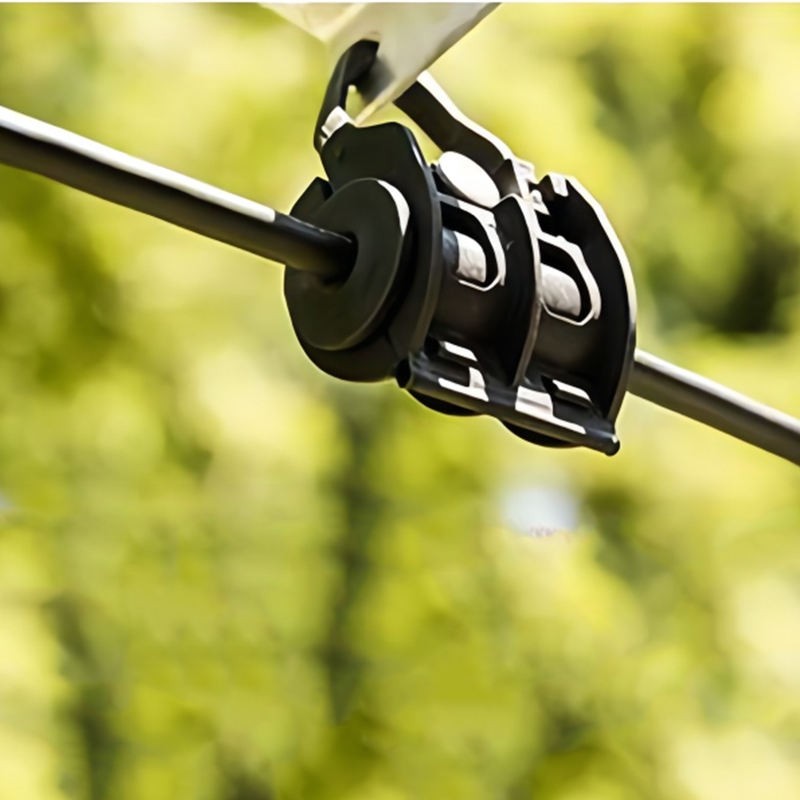

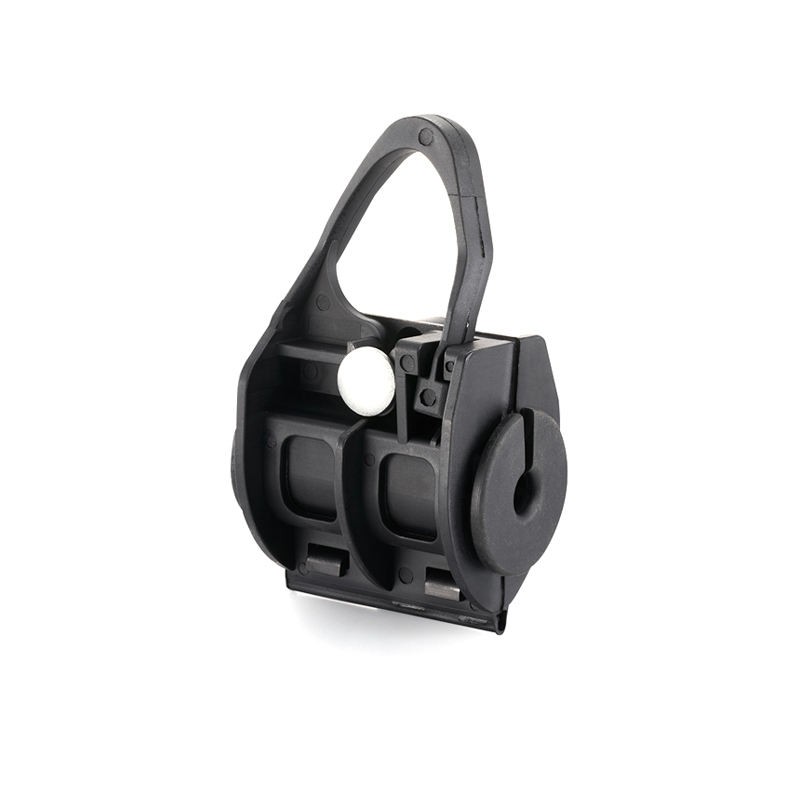

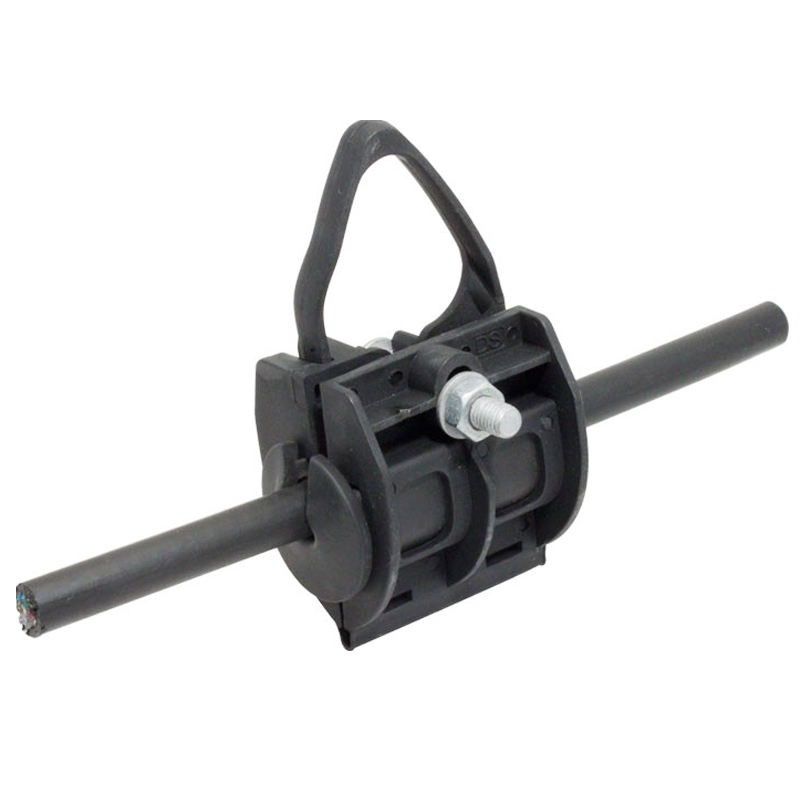

ADSS suspension clamp,D8 other called overhead support clamp is designed to suspension or support round ADSS cable during outdoor FTTX solutions.
This ADSS suspension clamp is made of high strength, UV resistant thermoplastic,reinforced by fiberglass. The manufacturing process is plastic injection technology. The installation of this drop wire clamp is very easy and convenient,it does not request additional tools.
The design of plastic loop allow simple installation on cross-arm, suspension brackets and FTTH hooks.
Features:
Dielectric and anti-drop design;
Easy installation, no request additional tools;
Applied outdoor on routes with angles-20 and short spans up to 100 meter;
UV resistant thermoplastic, galvanized steel material, durable;
Excellent environmental stability.
Specification:
|
Item No. |
Cable size, mm |
MBL,KN |
Weight, KG |
|
D8 |
8-12 |
1.5 |
0.12 |
|
D12 |
13-16 |
1.5 |
0.12 |
