Description
Description

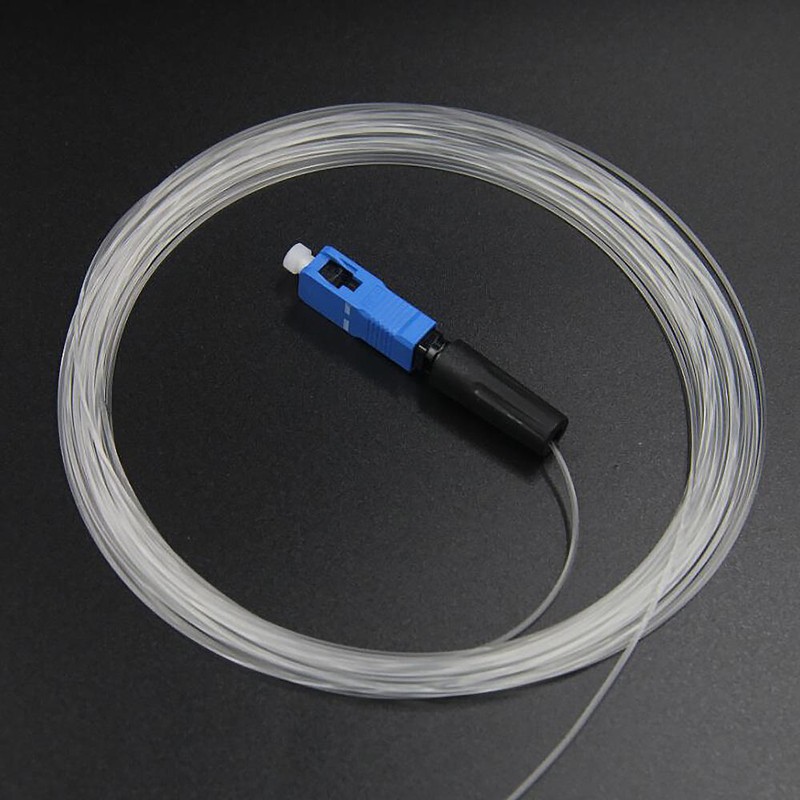

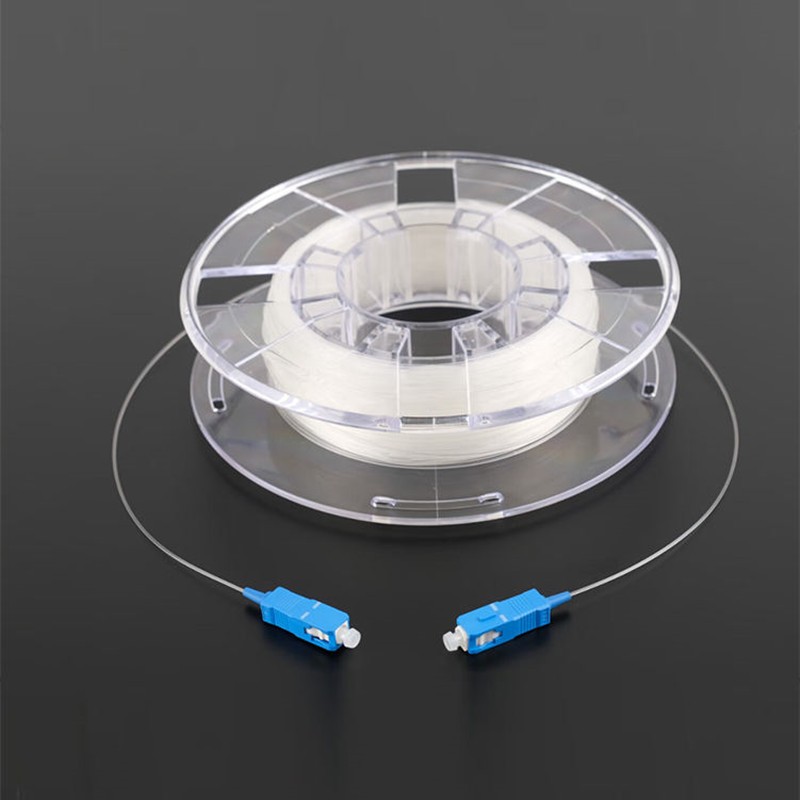

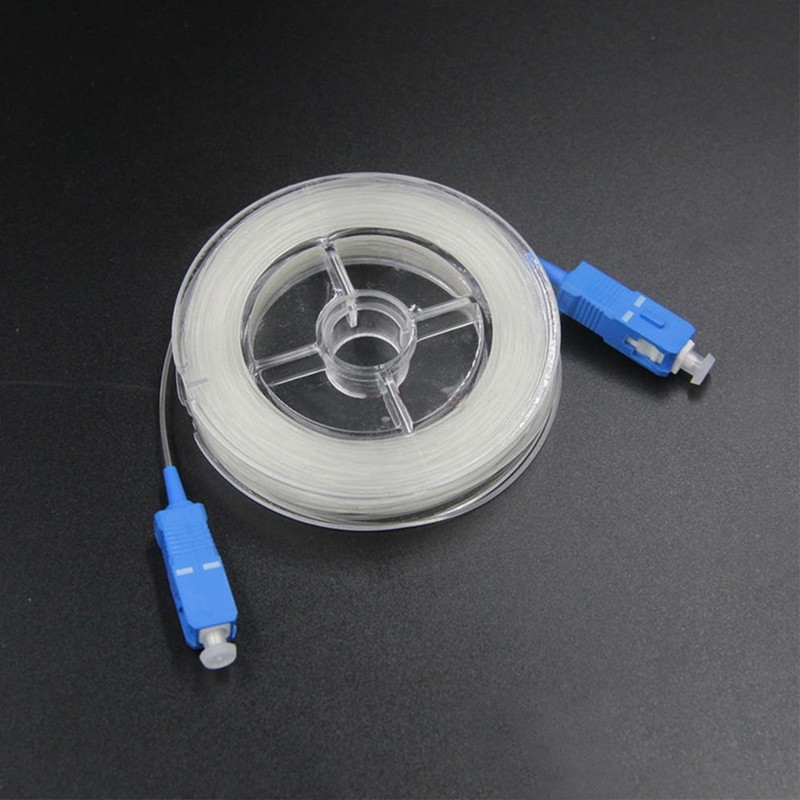

The Transparent Drop Cable is an innovative fiber optic solution that seamlessly blends into its surroundings, making it the perfect choice for discreet network deployments. Featuring a transparent outer sheath, this cable virtually disappears against common backgrounds, allowing for minimal visual impact. Despite its inconspicuous appearance, the Transparent Drop Cable delivers robust performance, supporting high-speed data transmission and reliable connectivity. Flexible and durable, the cable ensures easy routing and long-lasting use, even in challenging environments. Whether integrating into residential, commercial, or industrial settings, the Transparent Drop Cable provides a sleek and unobtrusive way to extend your fiber optic network. Unlock the power of invisibility and elevate your connectivity with this discreet fiber optic solution.
Features
* Low insertion loss high return loss
* Excellent mechanical endurance
* High credibility and stability
* Good in repeatability and exchangeability
Application
1. Fiber optic communication networks
2. Optical access network
3. Data processing networks
4. Premise installations
Technical Paramenters
|
Items |
Unit |
Parameters |
|
|
Mode Field Diameter |
1310nm |
um |
8.5~9.3 |
|
1550nm |
um |
9.4+0.4 |
|
|
Cladding Diameter |
um |
125.0+1.0 |
|
|
Cladding Non-Circularity |
% |
<0.7 |
|
|
Core-Cladding Concentricity Error |
um |
<0.5 |
|
|
Coating Diameter |
um |
250+5 |
|
|
Coating Non-Circularity |
% |
<6.0 |
|
|
Cladding-Coating Concentricity Error |
|
< 12.0 |
|
|
Cable Cut-off Wavelength |
nm |
Xcc <1260 |
|
|
Attenuation (max.) |
1310nm |
dB/km |
s0.5 |
|
1550nm |
dB/km |
S0.30 |
|
|
1625nm |
dB/km |
S0.40 |
|
|
Macro-Bending Loss |
1 turnx7.5mm radius @1550nm |
dB |
s0.5 |
|
1 turnx10mm radius @1550nm |
dB |
<0.1 |
|
