Description

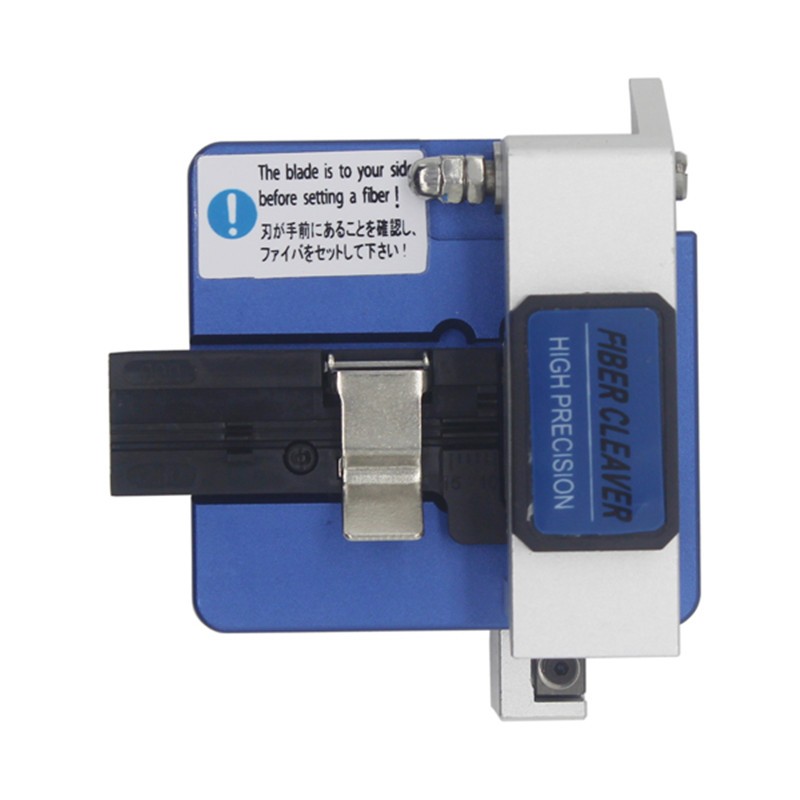

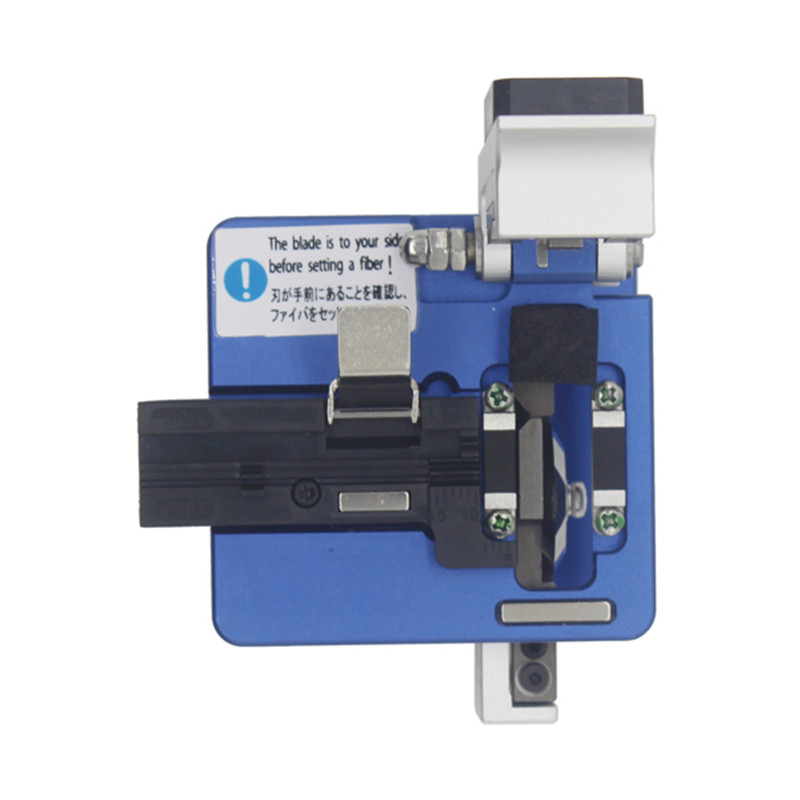

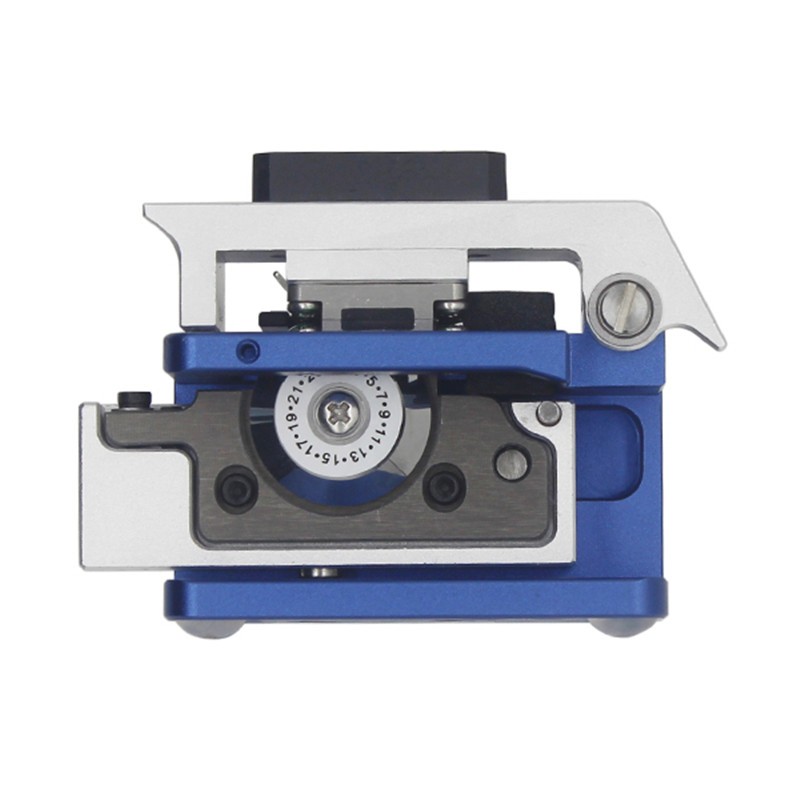

FC800 Fiber Cleaver is a high precision single fiber cleaver. It is a reliable cleaver for fiber optic network and FTTx FTTH applications. It contains 24-position blade and performs 48,000 times single fiber cleaves. A hexagonal wrench on the bottom of the cleaver allows you to adjust the cleaver blade flexibly.
Features:
· Internal hexagonal wrench placement design
· One step operation, no special skill is required
· Compact design
· High reliability
· Good cleaving performance
· 48,000 times cleave per blade
· High stability and precision
Applications:
· FTTx construction
· Optical network construction
· LAN, WAN, and Metro networks
· CATV networks
Specifications:
|
Fiber Type |
single fiber |
|
Cladding Diameter |
125um |
|
Fiber Diameter |
250um/900um/2mm/3mm/2*3mm flat drop cable |
|
Cleave Angle Capability |
typically <0.5˚, max. <1˚ |
|
Cleave Length |
fiber diameter 250um/900um: 9~16mm/10~16mm |
|
Blade Lifetime |
48,000 fiber cleaves (1,000 times*24 positions*2 blade heights) |
|
Dimension |
52W*52D*51H (mm) |
|
Weight |
260g |
Ordering Information:
|
Model |
Name |
Description |
|
FC800 |
High Precision Fiber Cleaver |
without fiber collector |
|
FC800C |
High Precision Fiber Cleaver |
with fiber collector |
|
CB-36 |
Replacement Blade |
24 positions |
