Description
Description:

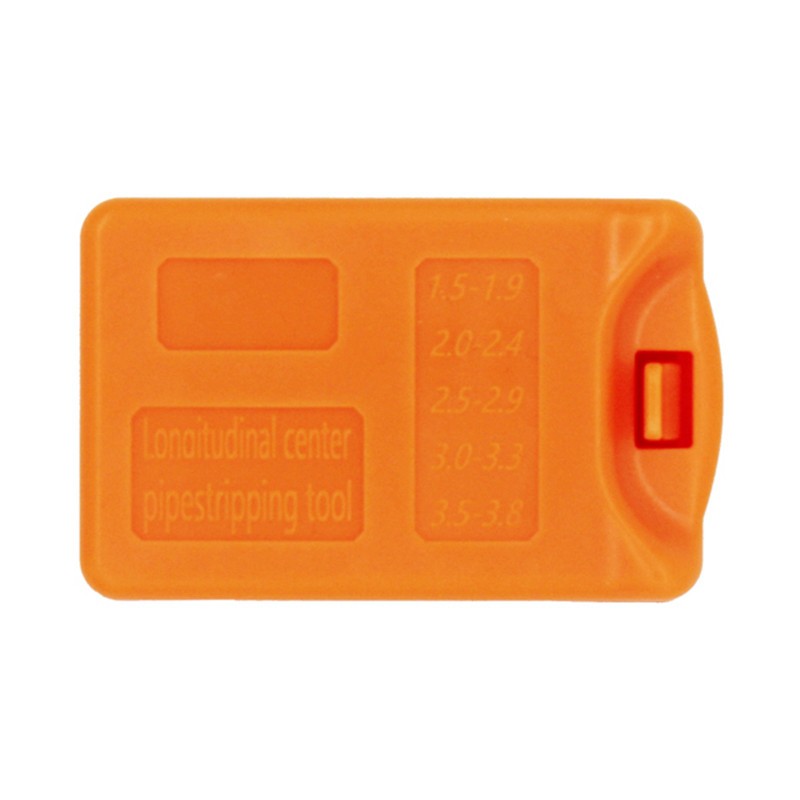

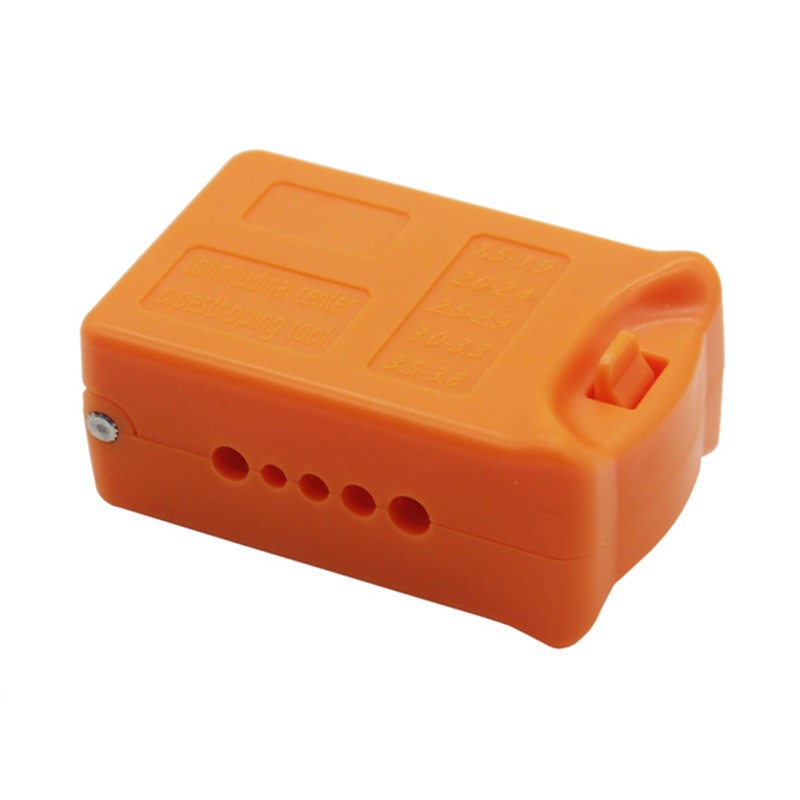

QH-19A Mid Span tool / Slitter is especially designed for stripping the outer jacket of a patchcord or a pigtail. It can slit loose tubes of ￠1.5mm~3.8mm longitudinally. It has 5 rails on the body and 10 sharp blades. Each rail is for the tube of specified diameter so that the stripping precision can be improved.
Features:
· Compact design, light weight, portable
· 5guide rails for tubes with different diameters
· Composed with high quality metal blades, more durable
· High precision rail design, ensure the integrality of the fiber
· Snap Lock to hold tool closed when it is not in use
Specifications:
|
Dimension (mm) |
64*40*28 |
||||
|
Net Weight (kg) |
About 0.046 |
||||
|
Packing |
Blister card |
||||
|
Packing Size (mm) |
155*76*31 |
||||
|
Gross Weight (kg) |
About 0.06 |
||||
|
Guide Rail Diameter (mm) |
φ1.5~1.9 |
φ2.0~2.4 |
Φ2.5~2.9 |
Φ3.0~3.3 |
φ3.5~3.8 |
