Description
Description

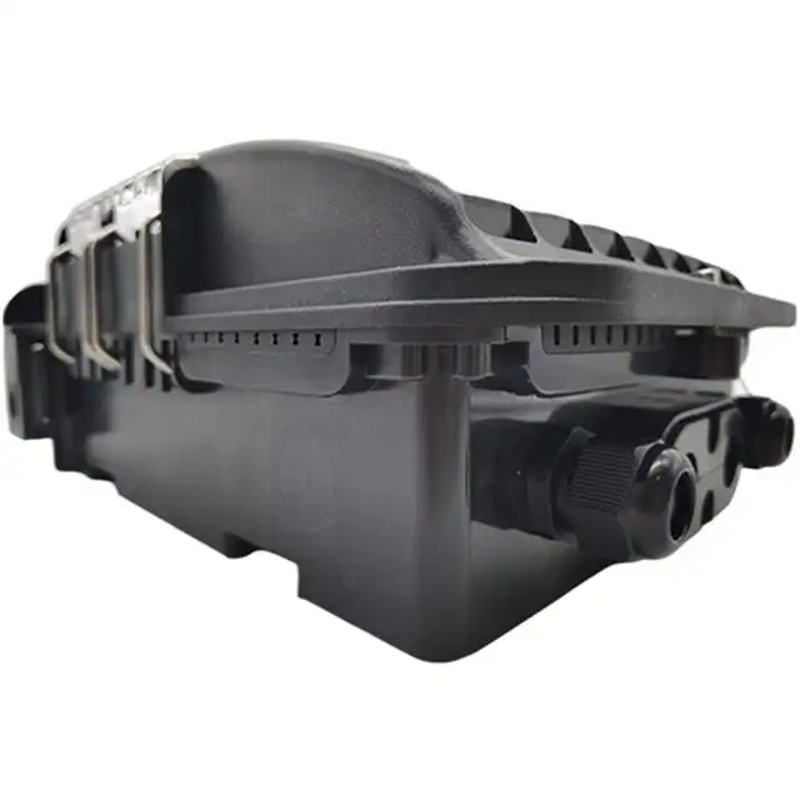

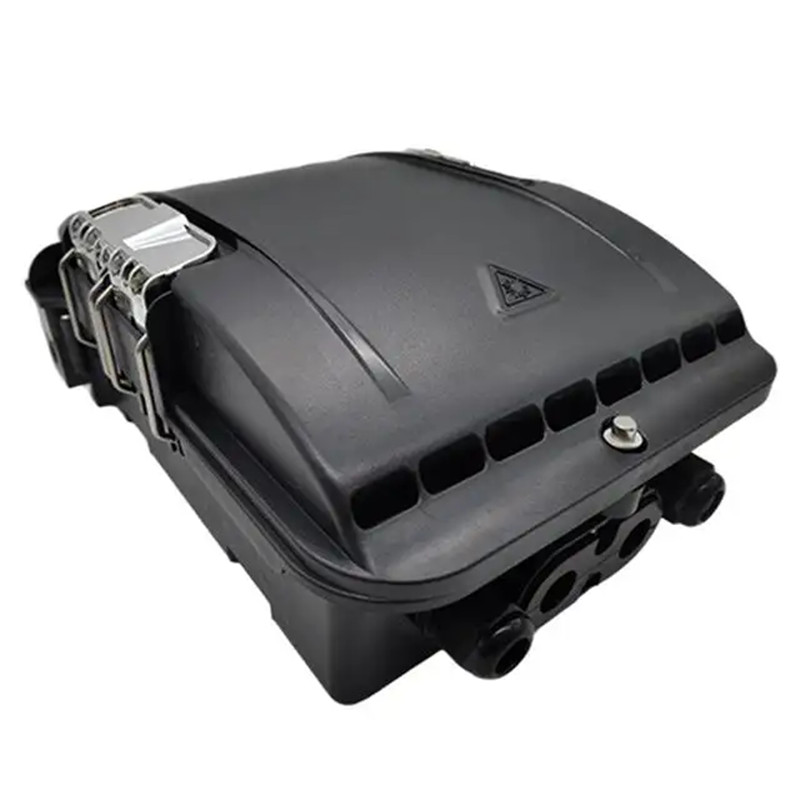

FDB-16D08 FDB/FDP is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTx network system.

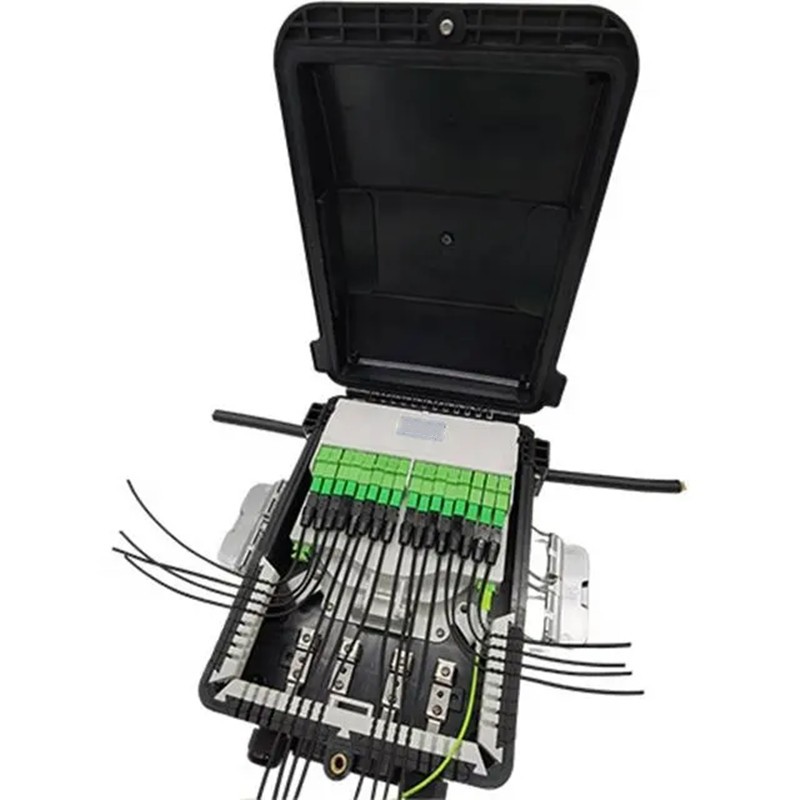

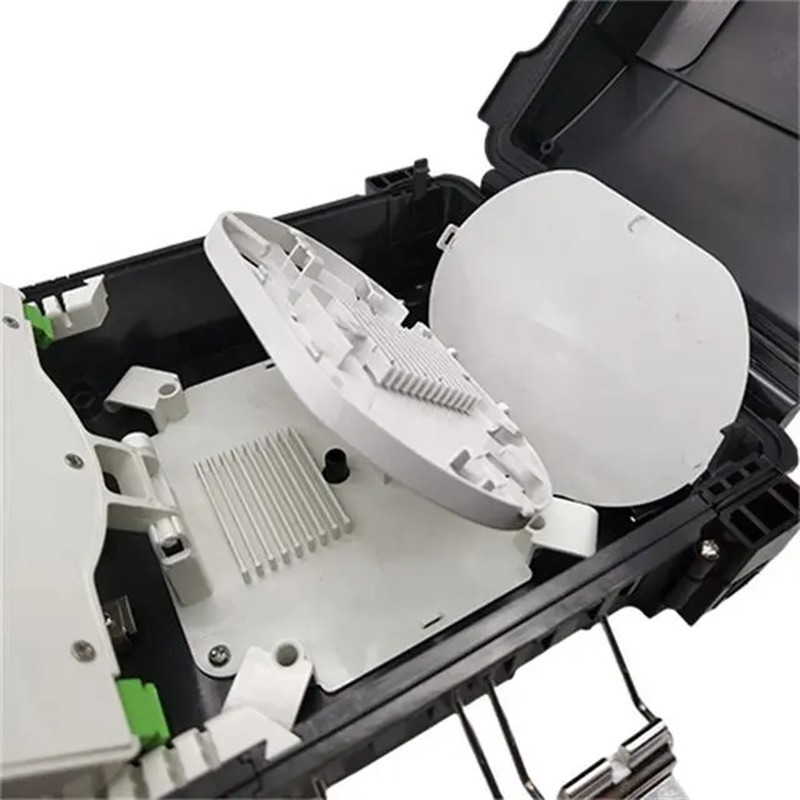

It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Features
Special Streamlined design.
Three-sided cable out-port design.
Application for both Wall mounting and Pole installation.
Outdoor application and good UV resistant.
With different options of interior configurations.
Maximum 96F splice capacity, stainless anti-rust bolts and nuts.
Easy for maintenance and expansion.
Fiber bend radius control more than 35mm.
180 degree access with 2pcs of buckled lock structure.
Designed position for max. 2pcs of 1x8 or 1pc of 1x16 PLC splitter.
1 mid-span cable entrance (10-14mm) for uncut cable and 4 reserved cable entrances for distribution cable gland (8-12mm)
Protection level: IP66
Specification
|
Item |
Description |
|
Part.No |
QH-FDB-16D08 |
|
Capacity of Splicing |
48 fibers |
|
Capacity of Splitter |
16 fibers |
|
No. of Adaptor |
16pcs of SC simplex adaptor |
|
Material |
PC+ABS (UV Resistant) |
|
Dimension |
293*221*113mm |
|
Weight |
1.40kgs |
|
Color |
Black or on request |
|
Working Temperature |
-40℃~+85℃ |
