QH400 MINI PRO Multi-functional OTDR

Product Item：QH400 MINI PRO Multi-functional OTDR

FC/SC/ST connectors interchangeable

Automatic and manual test function

Visual Fault Locator (VFL) function

OTDR Viewer software for data analysis

Description

QH400 MINI PRO Multi-functional OTDR integrates fiber cable and Ethernet cable testing in one unit. It is a powerful tester for installers of fiber cable and network cable.

Features:

Integrated design, smart and rugged

FC/SC/ST connectors interchangeable

Automatic and manual test function

Visual Fault Locator (VFL) function

OTDR Viewer software for data analysis

Applications:

CATV network testing

Access network testing

LAN network testing

Laband Factory testing

Live fiber troubleshooting

FTTA troubleshooting

Multi-functions:
1. OTDR
2. Optical Power Meter (OPM)
3. Optical Light Source (OLS)
4. Visual Fault Locator (VFL):Visual Fault Locator uses red laser of 650nm to locate broken fiber point and test fiber continuity.
5. Event Map:Event Map is similar to EXFO’s iOLM function, which can display events in user-friendly icons.

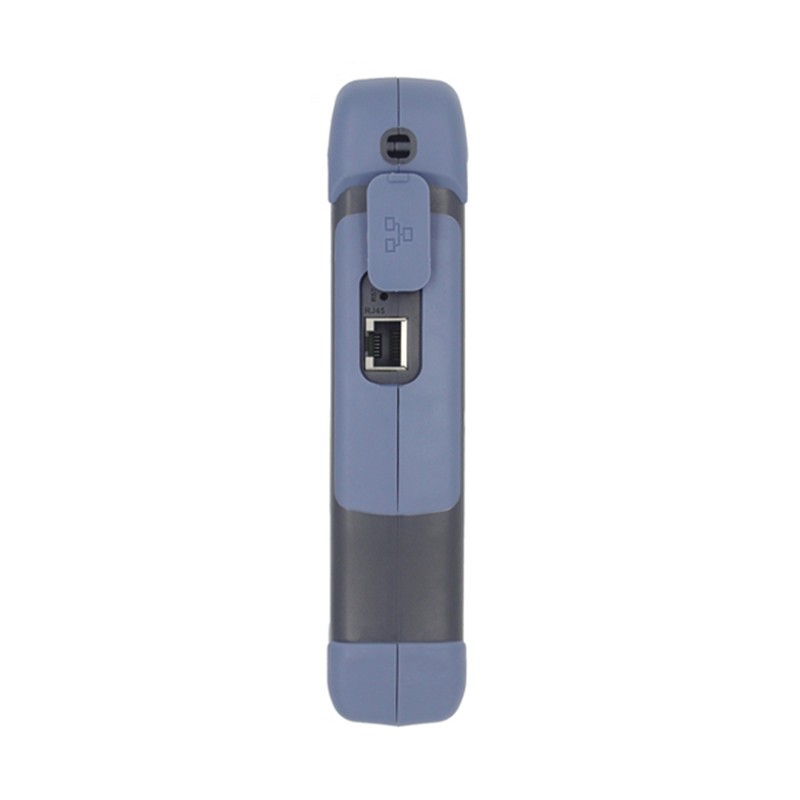

6. RJ45 Sequene, Length and Tracker:It can check wire map, measure the length of RJ45 cable, and trace and locate the RJ45 network cable.
7. Flashlight
8. Report Print:PC software helps print out OTDR test reports.

Specification:
1. OTDR

Model	QH400
Wavelength	1310/1550nm±20nm
Dynamic Range①	24/22dB
Fiber Type	SMF
Event Dead Zone②	3m
Attenuation Dead Zone	8m
Measurement Range	500m/1km/2km/4km/8km/16km/32km/64km
Pulse Width	3ns/5ns/10ns/20ns/30ns/50ns/80ns/160ns/320ns/500ns/800ns/1us/2us/3us/5us/8us/10us
Ranging Accuracy	±(1+Sampling interval+0.005%*Test distance)
Linearity	±0.2dB/dB
Sampling Resolution	0.05~8m
Samping Points	16~128K
Loss Resolution	0.001dB
Loss Threshold	0.2dB
Range Resolution	0.001m
Refractive Index	1.00000~2.00000
Reflection Accuracy	±3dB
File Format	SOR standard file format
Loss Analysis	4-point method / 5-point method
Laser Safety Level	Class II

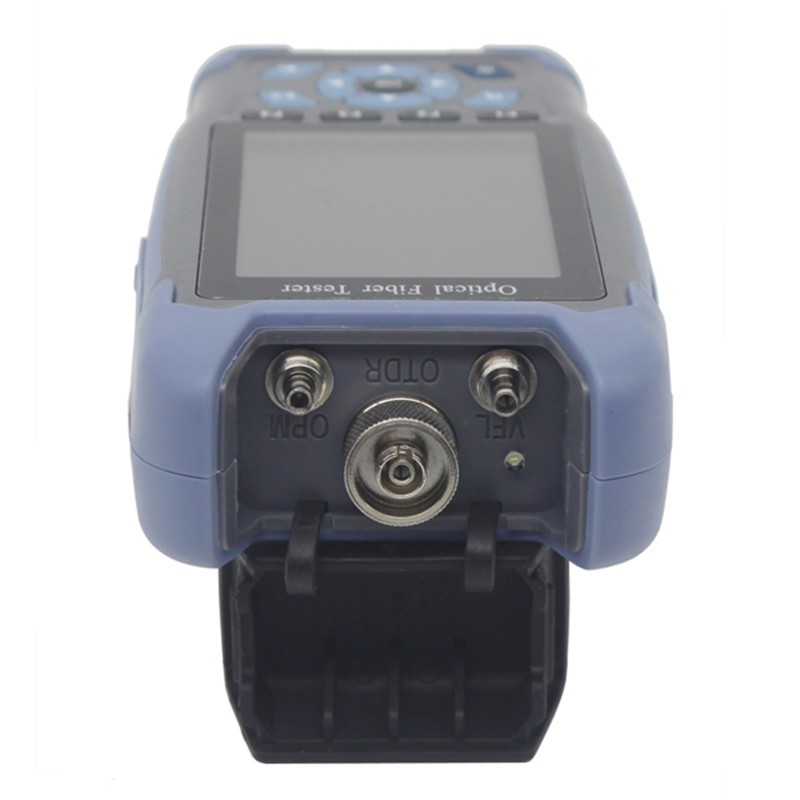

Adapter	FC (Interchangeable SC adapter)
Language	Chinese, English, Russian, Portuguese, Spanish, French, Korean, Vietnamese (Select one or two languages)

Note:
①Testing temperature is 25°C±2°C, maximum pulse width, average time is more than 3 minutes.
②Test conditions of Event Dead Zone are minimum range, minimum pulse width, reflection loss of optical fiber end surface (>45dB), typical value.

2. Optical Power Meter

Wavelength Range (±20nm)	800~1700nm
Calibrated Wavelength	850/980/1300/1310/1490/1550/1625/1650nm
Test Range	Type A: -50~+26dBm (standard);
Test Range	Type B: -70~+10dBm (optional)
Resolution	0.01dB
Uncertainty	±5%
Frequency Identification	CW/270/330/1k/2kHz
Connector	Universal 2.5mm (FC/SC/ST)

3.Optical Light Source

Emitter Type	FP-LD
Working Wavelength	1310/1550nm±20nm
Output Power	≥-5dBm
Modulation Frequency	CW/270Hz/330Hz/1kHz/2kHz
Accuracy	CW, ±0.5dB/15min (Test after 15 minutes of preheating)
Connector	FC (Interchangeable SC adapter)

Note:

· The wavelength of Optical Light Source is the same as OTDR wavelength.

· Optical Light Source shares the same fiber port as OTDR port.

4.Visual Fault Locator

Wavelength (±20nm)	650nm
Power	≥10mW
Mode	CW/1Hz/2Hz
Connector	Universal 2.5mm (FC/SC/ST)

5. RJ45 Sequene, Length and Tracker

Test Range

300m

Other Specification:

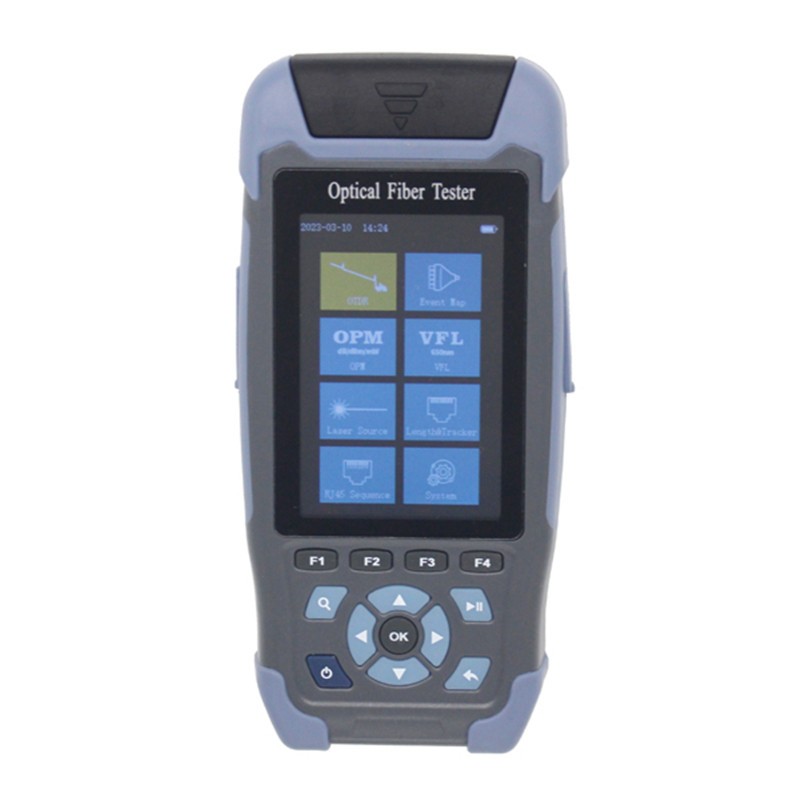

Display	3.5 inch color LCD
Power Supply	AC/DC adapter: Input: 100~240VAC, 50/60Hz, 0.4A; Output: 5V, 2.0A; Lithium battery: 3.7V, 4000mAh
Battery Standby Life	≥20h
Battery Working Hours	≥12h
Communication	Micro USB
Data Storage	Internal: 600 curves; External: TF card
Weight	0.35kg
Size	1738237mm
Operating Temperature	-10 ~ +50°C
Storage Temperature	-40 ~ +70°C
Relative Humidity	0~95% Non-condensing
Warranty	2 years

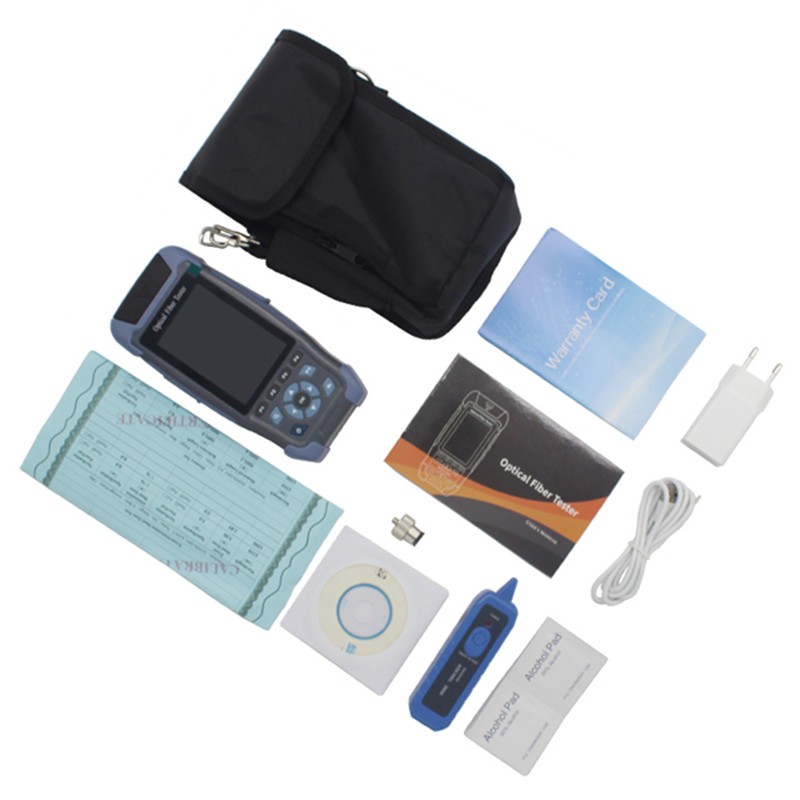

Standard Accessories:

Item	Name	Quantity
1	OTDR with FC Adapter	1pc
2	AC/DC power adapter	1pc
3	CD (including simulation analysis software)	1pc
4	Data line	1pc
5	SC adapter for OTDR port	1pc
6	User manual	1pc
7	Calibration Certificate	1pc
8	Carrying bag	1pc
9	Warranty Card	1pc
10	Network Cable Tracker	1pc
