Description
Description

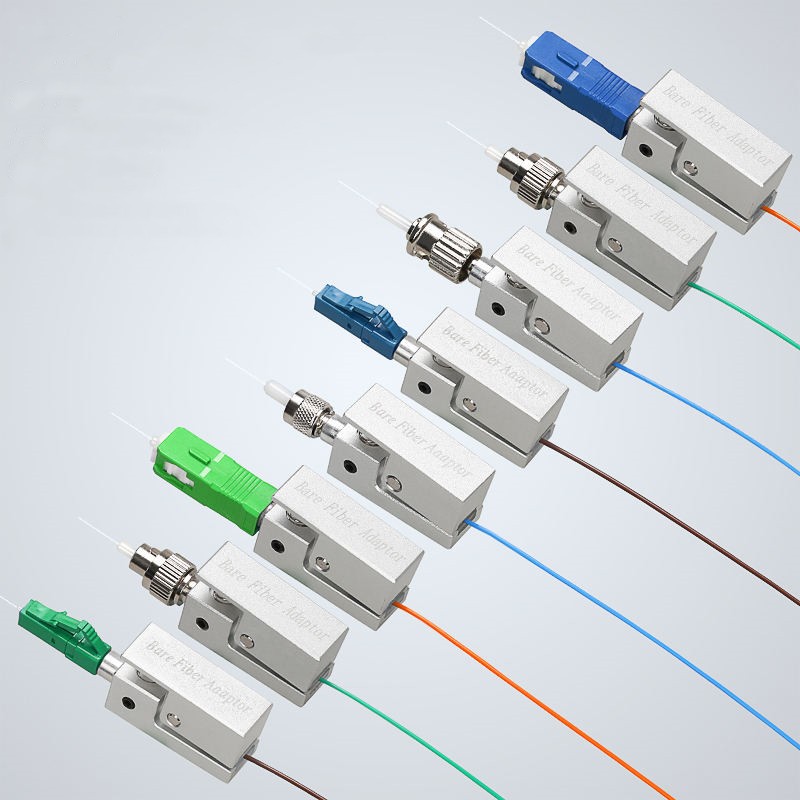

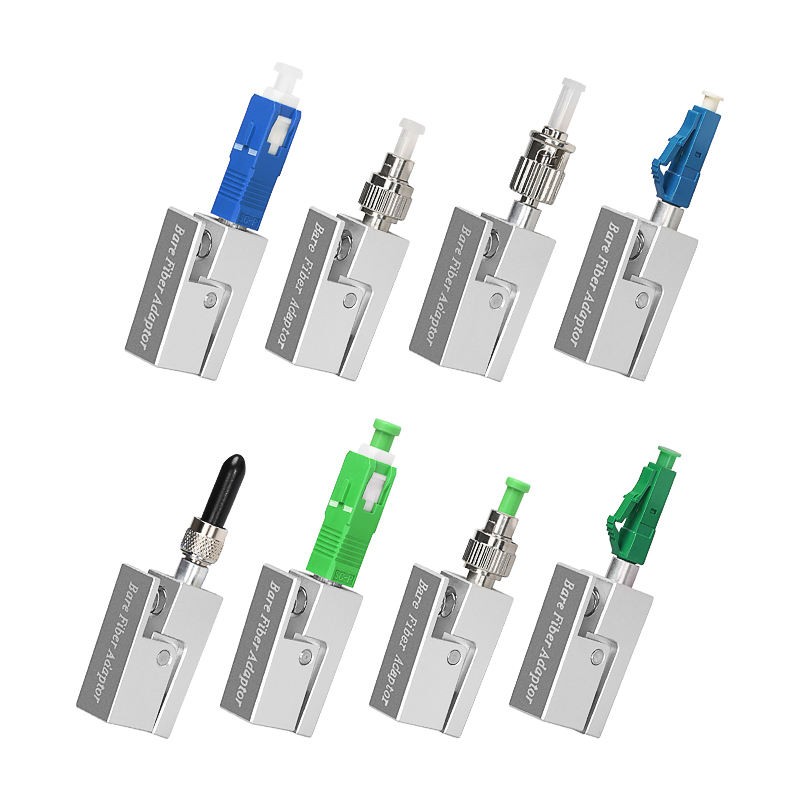

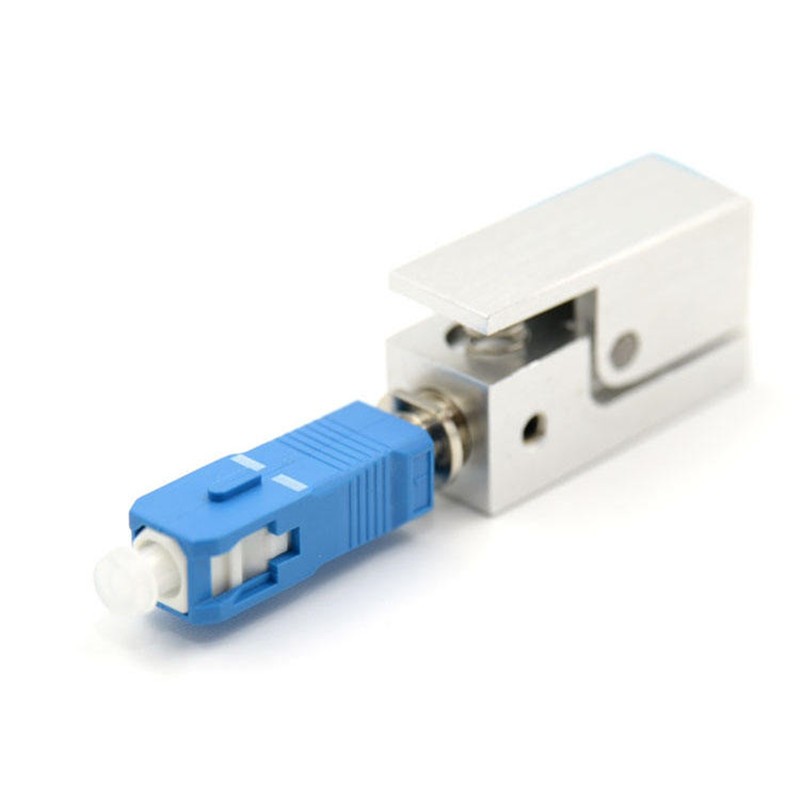

Bare fiber adapter are used as the medium to temporarily connect the bare fiber with fiber optic equipment. It's a very convenient way as well as a most affordable method to connect un-terminated fibers with standard FC, SC, ST, LC and SMA receptacles. They are recommended for power meter hook-ups, temporary system repairs or wherever a quick fiber connection is required.You only need to simply strip, cleave, clean and insert the fiber, without the hassle of epoxy and epoxy curing steps. Broken fibers are easily removed with piano wire. There are various types available: SC, FC, ST, LC, SMA, etc. Both single mode and multi-mode types are available.
|
Specifications |
Single mode / multi mode |
|
Insertion loss |
≤0.2db |
|
Plug and unplug force(g/f) |
200-600 |
|
Durability |
plug and unplug 1000 times |
|
Operating temperature |
-45 t +75°C |
Feature:
* Stable capability and high reliability;
* Precise connecting;
* Outstanding Mechanical characters;
* Human-centered Design;
* Suitable for fiber with coating diameters of 250um & 900um.
Applications:
* Emergency repairs of fiber optic cable, temporary fiber connection and fiber optic cable fast test;
* Bare Fiber Connection;
* Local Area Networks and Telecommunication Networks;
* Fiber optic testing, fiber optic cable repair;
* OTDRs, Power meters, Talk sets, etc;
* Fiber optic measurement in laboratory;
* Testing bare fiber, fiber on the reel, fiber before and after installation.
