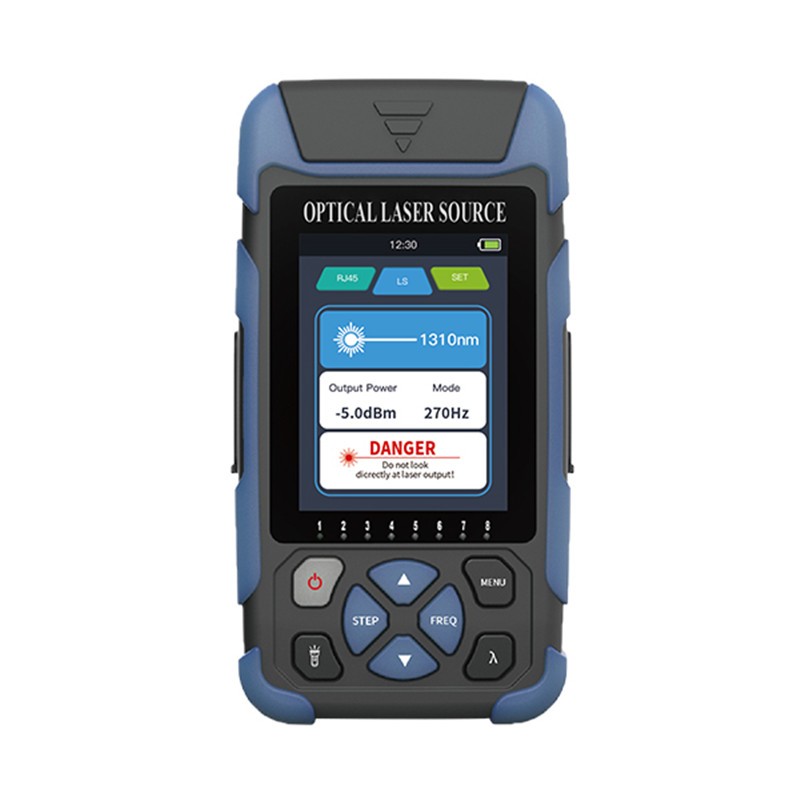

QH131 Series Optical Light Source adopts novel and ergonomic desgin, which is durable. The ports of Optical Power Meter and Visual Fault Locator adopts embedded detector, which can be well protected.
It supports SM/MM light source output, wave ID and TWINS mode output. The output power is adjustable.
Feature:
Output power is adjustable
Support modulated light
Support wavelength ID
Support 0.1dB/1dB step
Automatic wavelength recognition (TWINS mode output): QH131 Series Optical Light Source can transmit with a wavelength identification digital encrypted protocol, enabling QH130 Series Optical Power Meter to automatically switch to the proper calibration wavelength. This feature reduces the need for communication between two technicians and decreases the possibility of making mistakes.
Multi-functions:
1. Optical Light Source(OLS) (Standard)
2. RJ45 Sequene (Standard)
It can check wire map of RJ45 Ethernet Network Cable.
3. Flashlight (Standard)
4. RJ45 Tracking (Optional)
It can trace and locate RJ45 Ethernet Network Cable. (Network Cable Tracker is needed).
5. Laser RangeFinder (Optional)
It includes Single and Continuous measurement.
6. Bluetooth (Optional)
Specification:
1. Optical Light Source(Standard):
|
Output Wavelength |
1310/1550±20nm |
1310/1490/1550±20nm |
850/1300±20nm |
850/1300/1310/1550±20nm |
|
Fiber Type |
SM |
SM |
MM |
SM & MM |
|
Emitter Type |
FP-LD |
|||
|
Output Power |
≥-5dBm |
|||
|
Output Stability |
Short term (15 min): ±0.05dB@1310/1550nm, ±0.1dB@850/1300nm, ±0.1dB@1490nm Long term (8 hours): ±0.1dB@1310/1550nm, ±0.2dB@850/1300nm, ±0.2dB@1490nm |
|||
|
Output Frequency |
CW, 270Hz, 330Hz, 1kHz, 2kHz |
|||
|
Power Regulation |
0~6dB, 0.1dB/1dB step |
|||
|
Connector |
Interchangeable FC, SC |
|||
2. RJ45 Sequene (Standard):
|
Test Range |
300m |
3. RJ45 Tracking (Optional):
|
Test Range |
300m |
|
Tracking Mode |
Digital tracking |
|
Live/line to Line Search |
Support |
4. Laser RangeFinder (Optional):
|
Test Range |
0.05~40m |
|
Accuracy |
±2.0mm |
|
Test Mode |
Single and Continuous |
Other Specification:
|
Display |
2.8 inch color LCD, 240*320 |
|
Power Supply |
AC/DC adapter: Input: 100~240VAC, 50/60Hz, 0.4A; Output: 5V, 2.0A; Lithium battery: 2200mAh |
|
Wireless Interface |
Bluethoth |
|
Automatic Shutoff Time |
10min/30min/1 hour |
|
Continuous Working Time |
≥12h |
|
Charging Interface |
Type C USB |
|
Weight |
0.235kg |
|
Size |
140*32*73mm |
|
Operating Temperature |
-10 ~ +50°C |
|
Storage Temperature |
-40 ~ +70°C |
|
Relative Humidity |
0~95% Non-condensing |
Standard Accessory:
|
Item |
Name |
Quantity |
|
1 |
QH131 Optical Light Source |
1pc |
|
2 |
2200mAh Lithium Battery |
1pc |
|
3 |
Data Line |
1pc |
|
4 |
FC Adapter for OLS Port |
1pc |
|
5 |
SC Adapter for OLS Port |
1pc |
|
6 |
Warranty Card |
1pc |
|
7 |
User Manual |
1pc |
Optional Accessory:
|
Item |
Name |
Quantity |
|
1 |
ST Adapter for OLS Port |
1pc |
|
2 |
Male FC to female LC adapter for LC connector for OLS Port |
1pc |
|
3 |
AC/DC Power Adapter |
1pc |
|
4 |
Network Cable Tracker |
1pc |
|
5 |
Soft Bag |
1pc |
Ordering Information:
Model: QH131X-X-X-X-X
|
Model |
X: Output Wavelength |
X: Interface |
X: Network Cable Tracker |
X: Laser Range Finder |
X: Bluetooth |
|
QH131 |
S: 1310/1550nm |
None: UPC (default) |
None: without Network Cable Tracker (default) |
None: without Laser Range Finder (default) |
None: without Bluetooth (default) |
|
M: 850/1300nm |
A: APC |
T: with Network Cable Tracker |
F: with Laser Range Finder |
F: with Bluetooth |
|
|
T: 1310/1490/1550nm |
|
|
|
|
|
|
Q: 850/1300/1310/1550nm |
|
|
|
|
|
|
F: 850/1300/1310/1490/1550nm |
|
|
|
|
