Description
Description:

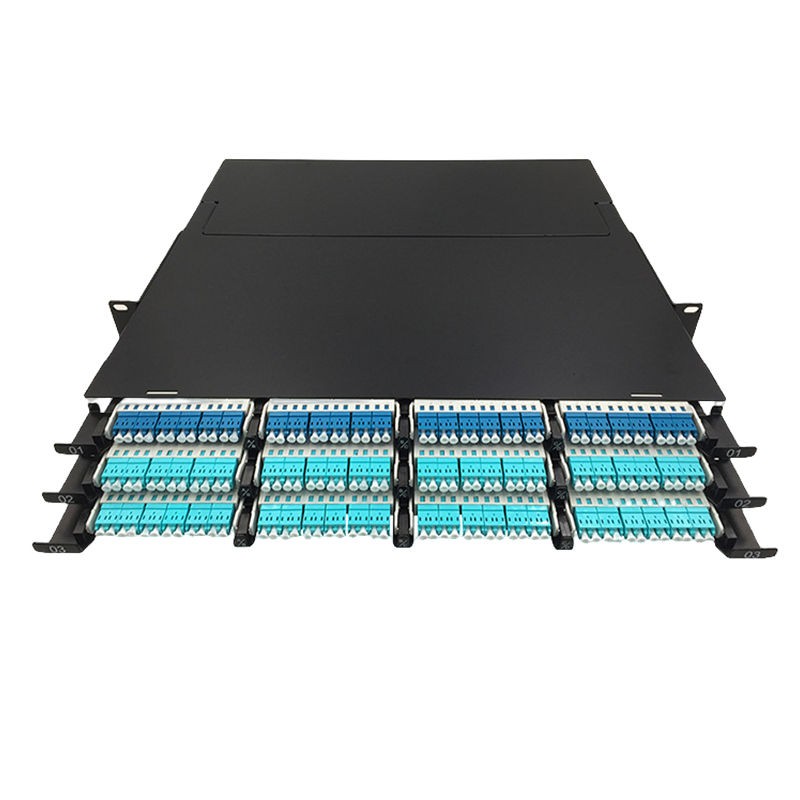

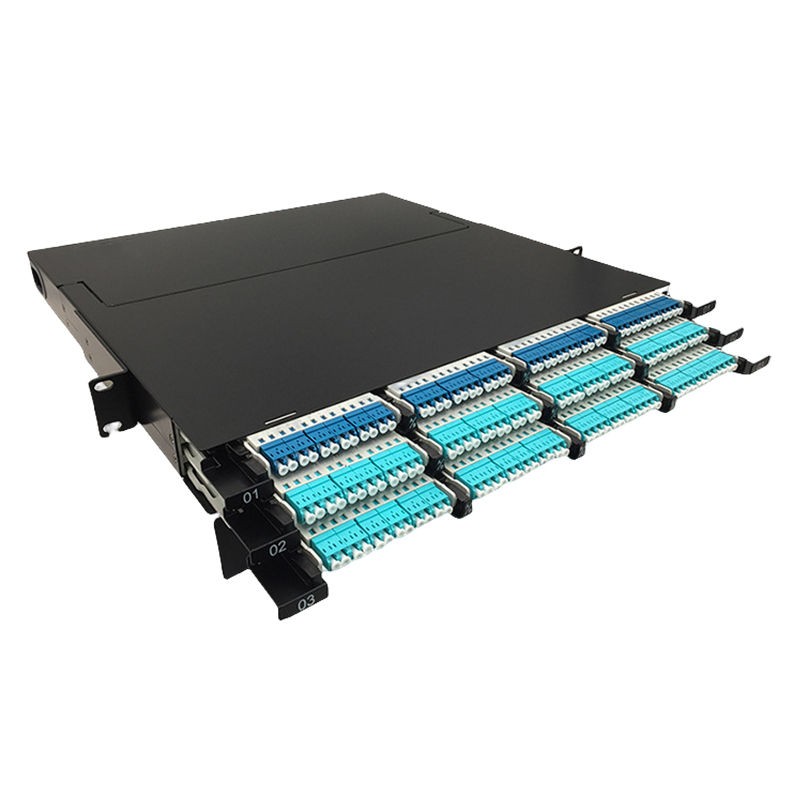

The high density, MPD, and configurable fiber optic MPO cassette patch panell is designed for backbone-to-backbone and backbone-to-horizontal fiber cabling and support 10G multimode MM fiber optic networks.

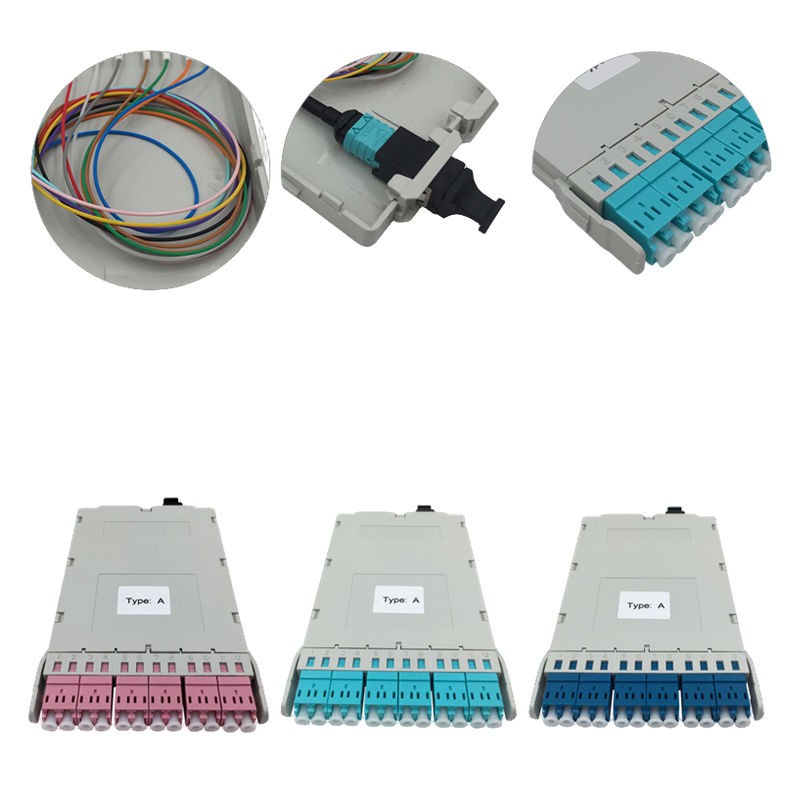

The LC-LC fiber patch panel can accommodate up to 96 fibers and is preloaded with 4 cassettes. Each cassette has 24 LC ports on front and two MPO ports on the rear for interconnecting from cassette to cassette. The cassette is made with tough ABS plastic to protect against wear, corrosion, impact, and weather.
The LC-MPO fiber cassette is factory terminated with multimode MM OM3 50/125 fiber. No splicing, polishing, field termination or testing is required. Cassettes can be removed using a flat head screwdriver and snapped back into the panel.
Equipped on the rear are male MPO adapters and require female MPO patch cords to be installed. The LC adapter and MPO adapter is made from durable UL 94V-0 and polyethermide material colored aqua, which is recommended for 10G Ethernet networking. Each LC coupler comes with a protective cap to prevent dust and debris from entering.
Feature:
19"rack mount, Color black.
Baffles are used where adapters are not installed.
Front cable management function:Cable can be routed to the front of the cable management bar, either from the left or the right side
Rear cable management function:Cable can be routed to the rear of the cable management bar, from both sides.
1U patch panel capacity comes up to 144F fully loaded , up to 12 MPO/MTP standard connectors.
Applications:
Data communication appications
Data Center infrastructure
Storage Area Network - Fiber Channel
