Description:

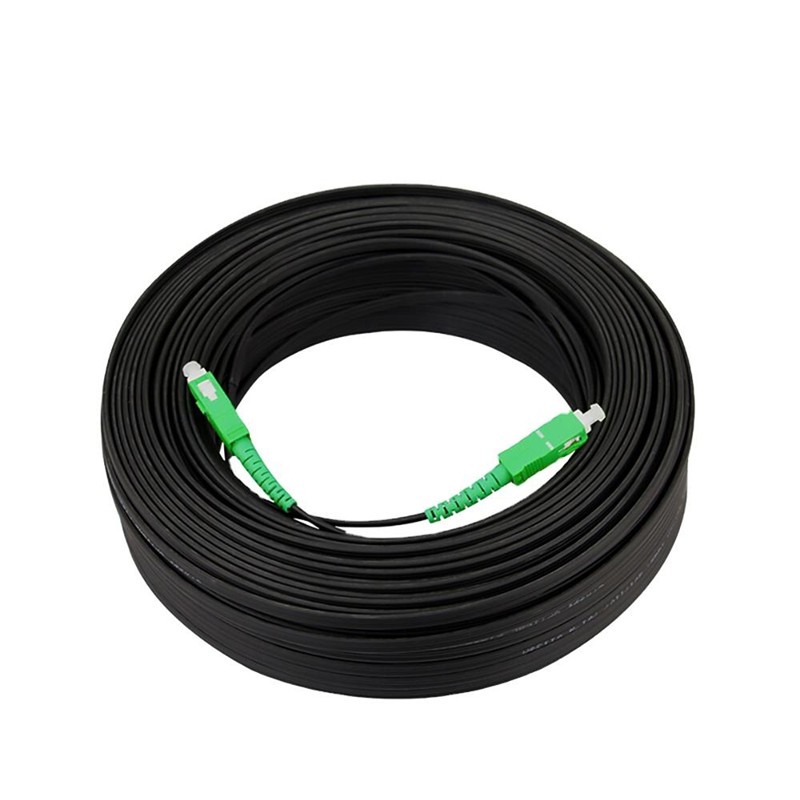

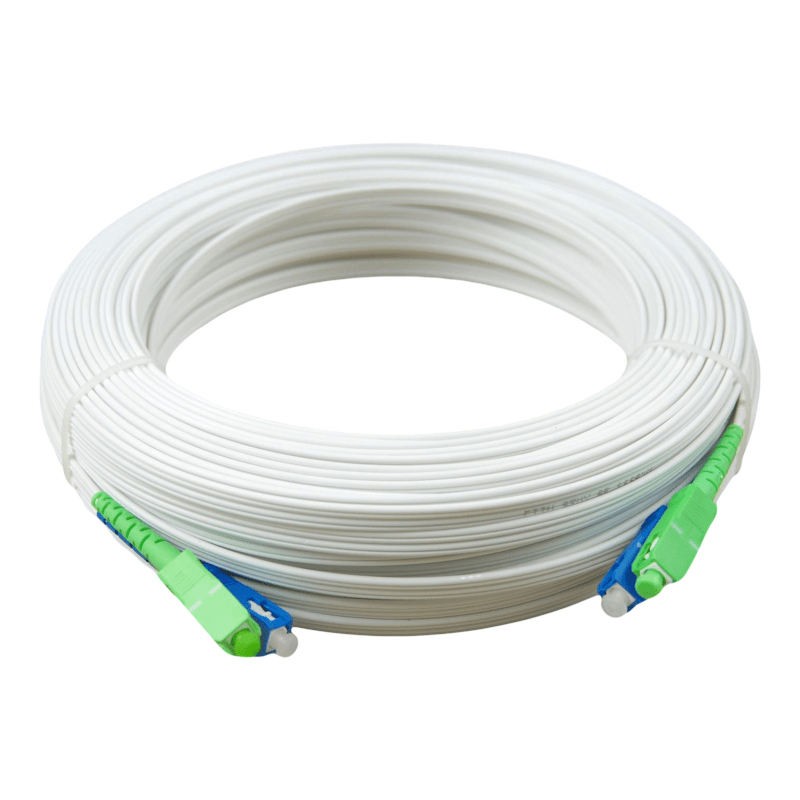

The FTTH outdoor Pre-terminated patch cable comes with FTTH flat aerial self- supported drop cable. It can be installed conveniently and operated simply.
Features:
Available FTTH Drop cable diameters:φ 2.0*5.0mm; φ 2.0*5.2mm;
FTTH Cable Self- Supported member: 1.0; 1 .2 mm Steel wire.
Connector Types: LC, FC, SC
Fiber Mode: Single mode G652D, G.657A1, G657A2
Ferrule Interface Type: UPC to UPC, APC to APC, APC to UPC .
Good exchangeability; Good Durability
High temperature stability
Specifications:
|
Parameters |
SC/PC |
SC/UPC |
SC/APC |
|
Working Temperature (℃) |
-25—+75 |
||
|
Insertion Loss (dB) |
≤0.25 |
||
|
Returm Loss( dB) |
≥45 |
≥50 |
≥60 |
|
Durability(Times) |
≥600 |
||
|
Tensile strength(N) |
≥55 |
||
