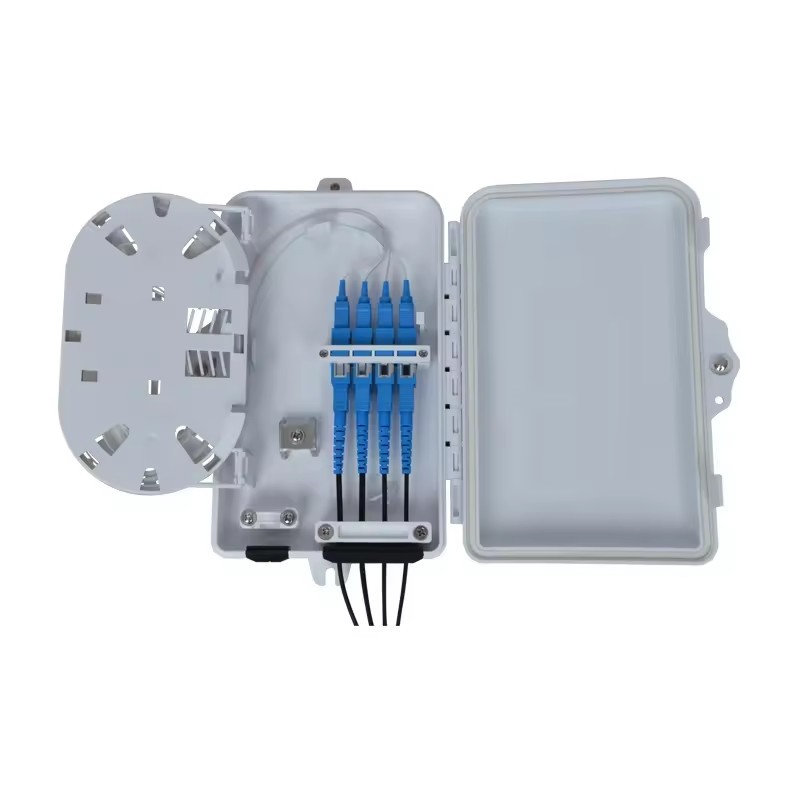

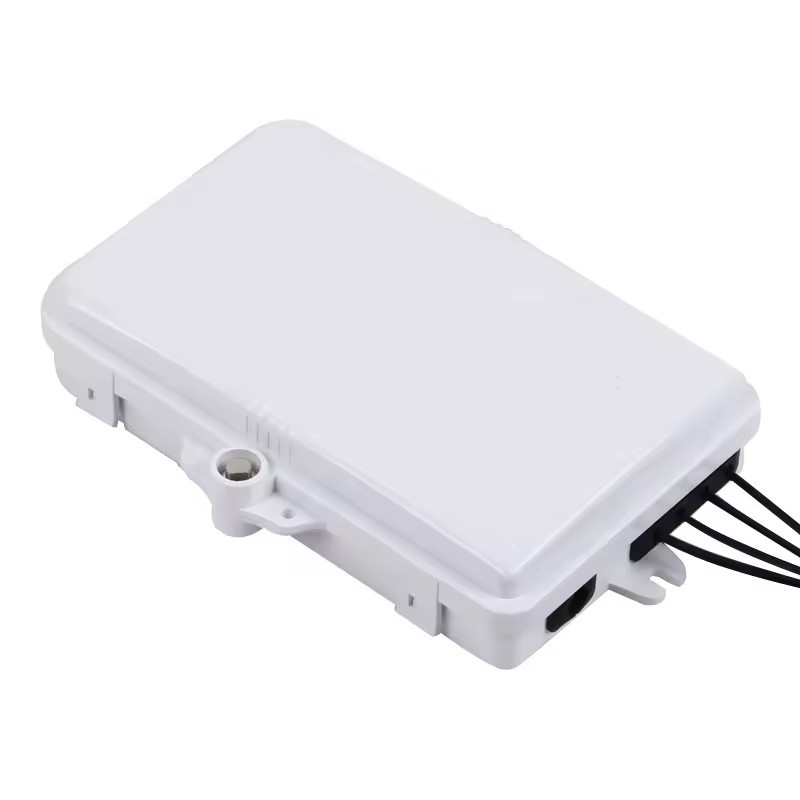

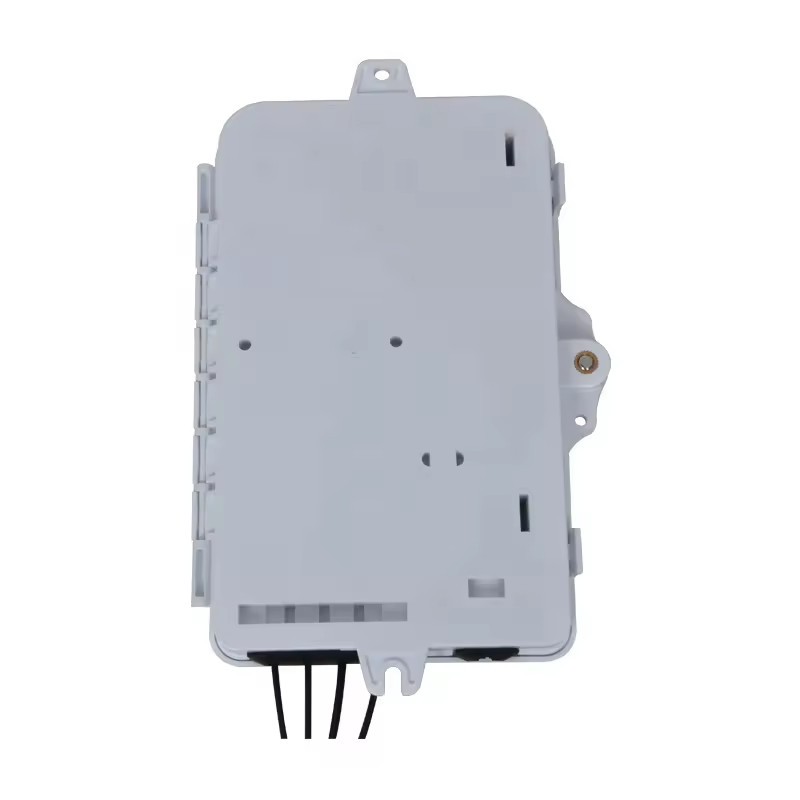

FTTH fiber optic terminal box

Product Item： QH-ATB-4C04

4 fiber terminal box

FTTH box

4 fiber wall mount box

4 fiber mini box

Description

Description:
QH-ATB-4C04 is suitable for FTTH, optical fiber splitting/splicing using.
ABS plastic, light weight.

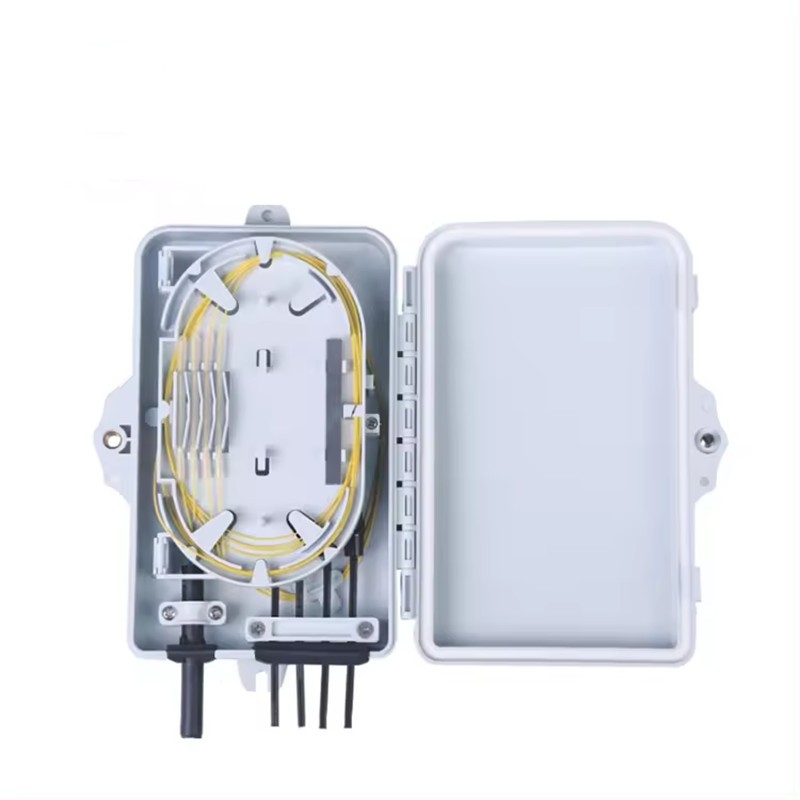

Reasonable design for fiber arrangement, bend radius more than 30mm

Suitable for 1pc 4 way splitter or 1pc 8 way splitter with LC connector (Steel tube type)

Main Parameters:
Operate temperature:-5℃+40℃
Relative humidity:≤90%(+30℃)
Atmospheric pressure: 70Kpa-106Kpa
Storage Temperature:-40℃+70℃
Optical parameter: Insertion loss≤0.3dB;
Excess loss:≤0.2B;
Return loss≥50dB
IP standard:IP55

Dimension:

212(H)mm×142(W)mm×40(D)mm
