Product information:

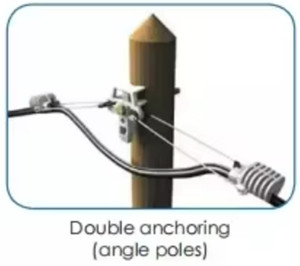

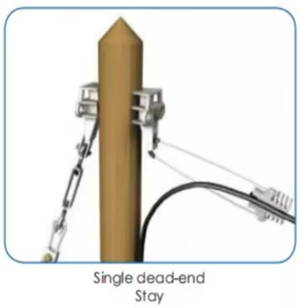

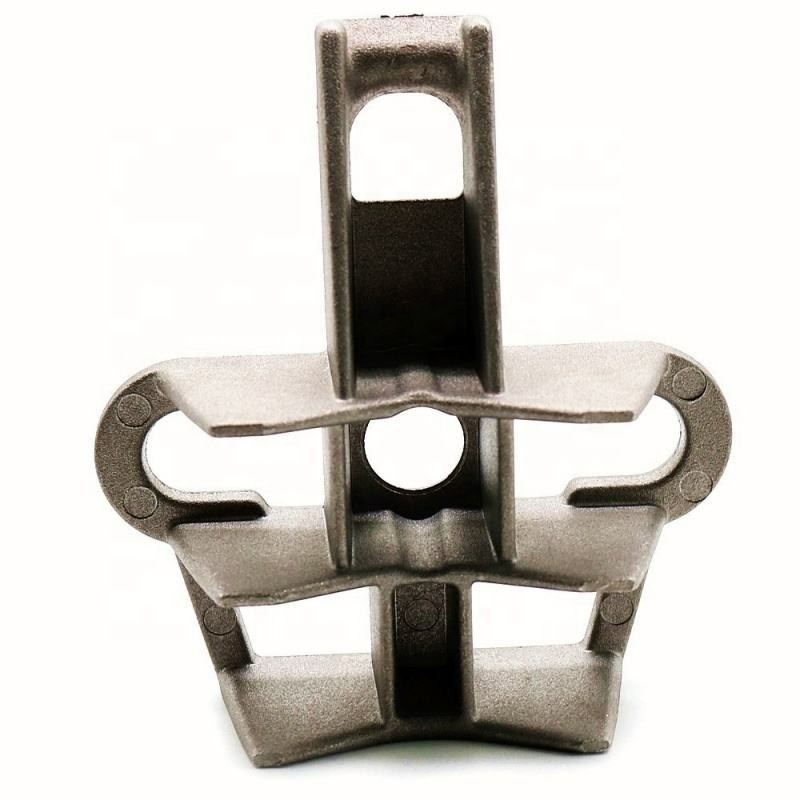

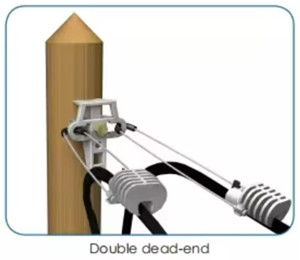

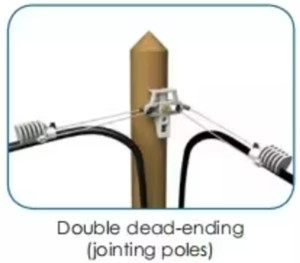

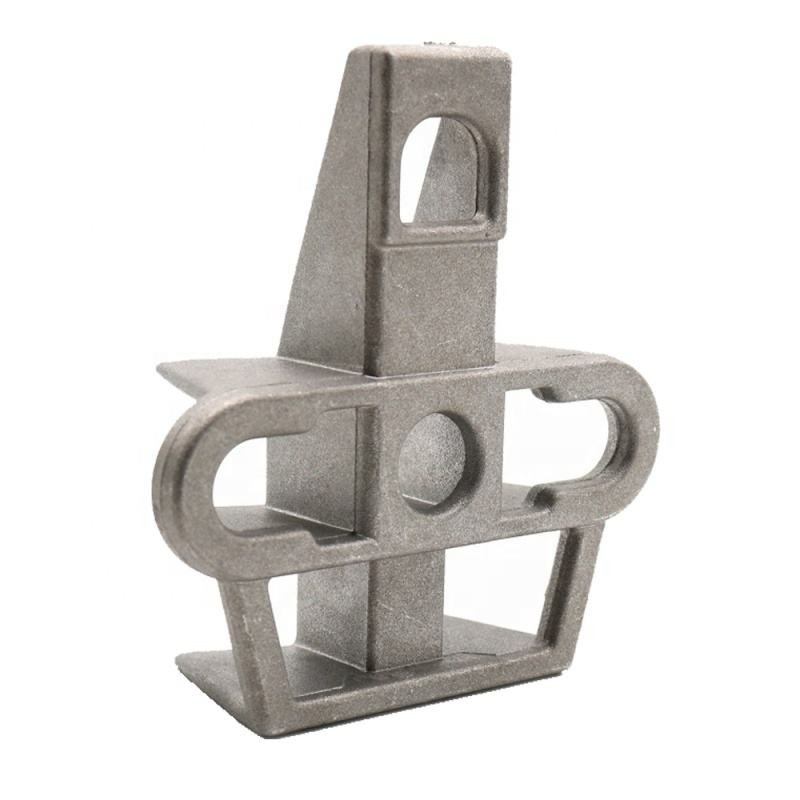

Universal pole bracket UPB other calls ADSS pole bracket is designed to tension and suspend adss tension clamps or figure 8 cable anchor clamps during outdoor aerial ftth network constructions.
Key features:

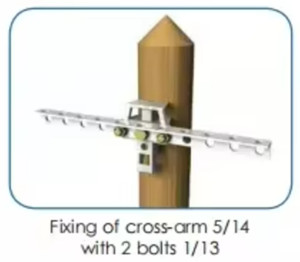

1. The installation can be proceed on the poles of walls, wooden, metal,concrete material by using stainless steel band or bolts.Stainless steel materials guarantee long time of usage. Fixed to the pole by 2 stainless steel band (20 mm) or 1 bolts 14 16 mm diameter

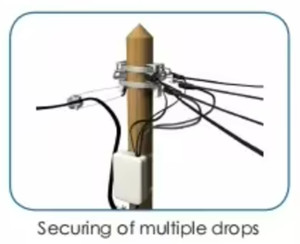

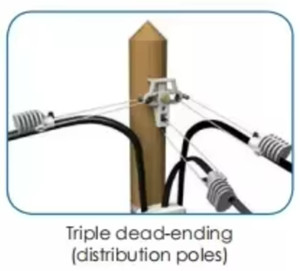

2. Provide the principal of all in one device, by offering up to 5 clamping points
3. Fiber optic bracket UPB's design allows withstand a sufficient load without anchor clamp slip or break.
4. Materials: High strength aluminum alloy, passivized.
Technical specification:
|
Product name |
ADSS universal pole bracket upb |
|
Model NO. |
UPB |
|
Color |
steel |
|
Material |
Aluminium alloy |
|
MBL,KN |
F1=5 |
|
Size |
120*112*45mm |
|
Weight |
0.21 kg |
