  • D001R-48 fiber optic splice closure
  • D001R-48 fiber optic splice closure
D001R-48 fiber optic splice closure D001R-48 fiber optic splice closure

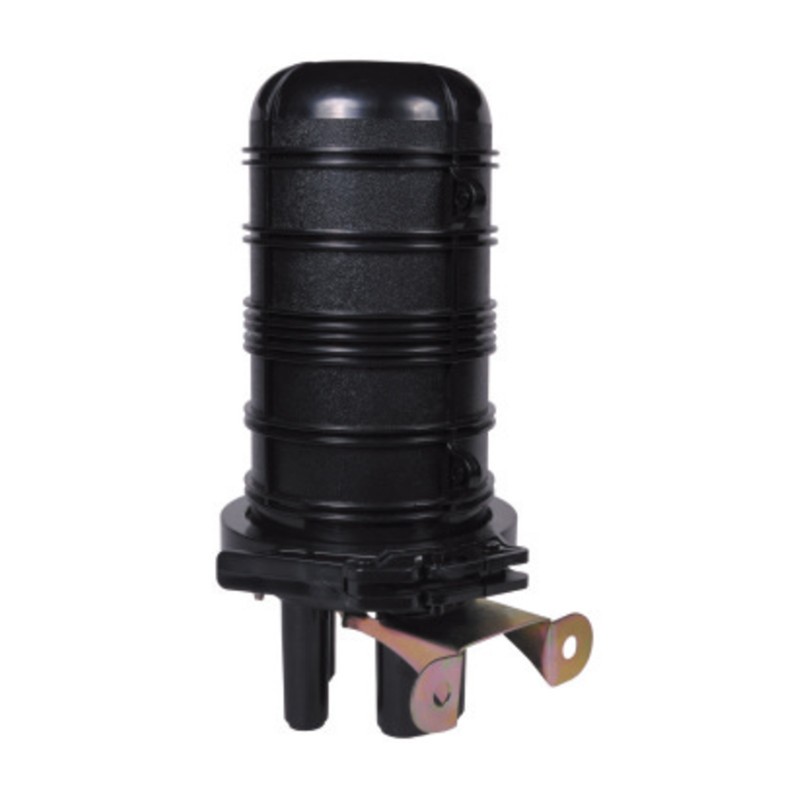

D001R-48 fiber optic splice closure

  • Product Item:D001R-48
  • Maximum capacity 48F
  • 5 cable ports
  • Φ8mm~Φ20 mm
  • Heat shrink sealing
  • Heat shrink fiber optic splice closure  , outdoor optical splice closure  , 48 fiber splice closure
    Inquiry Send Email

    Description

    Main Features

    D001R-48 fiber optic splice closure made of high quality engineer plastic material ,Good mechanical strength, Elegant appearance, sturdiness and durability.

    Suitable for indoor or outdoor ,wall-mounted , pole installation.

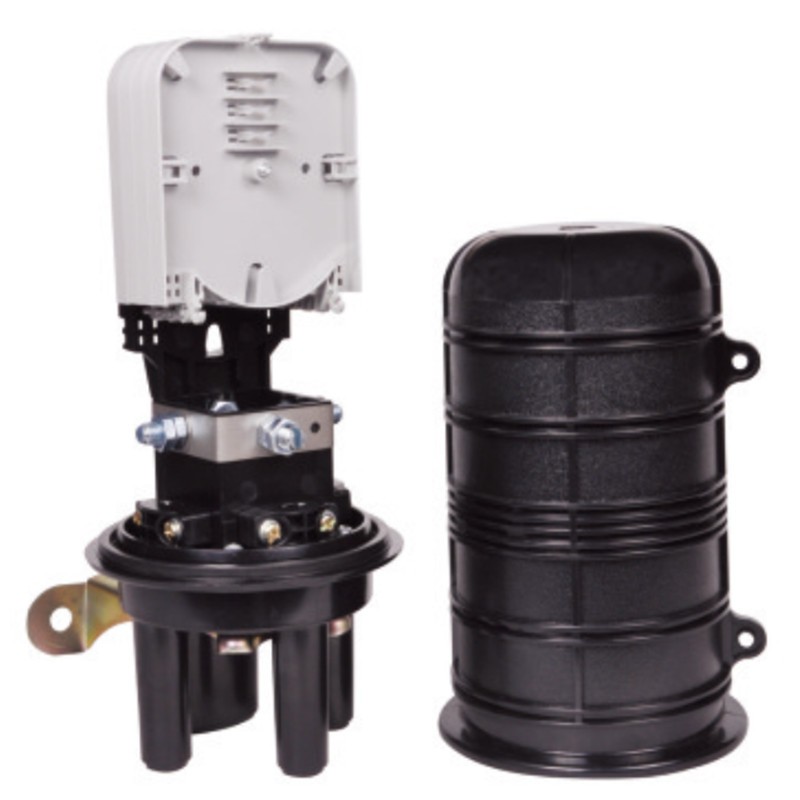

    Built-in Stacked splice tray, easy for open, the splice tray can be taken down, easy for installation and maintenance.

    Fiber routing is reasonable.

    Clamping for fiber splicing, fixation, storage, distribution...etc all in one.

    Dimension and capacity

    Outside dimension (Height x Diameter)

    288mm×178mm

    Weight (excluding outside box)

    1550 g— 1740g

    Number of inlet/out ports

    5 pieces in general

    Diameter of fiber cable

    Φ8mm~Φ20 mm

    Capacity of FOSC

    Bunchy: 4-48 (cores)

    Applicable environment

    Operating temperature:-40℃~+65℃

    Relative humidity:≤85% (+30℃)

    Atmospheric pressure:70Kpa~106Kpa

    Protection class:IP67

    Main accessories and special tools

    No.

    Name of accessories

    Quantity

    Usage

    Remarks

    1

    Heat shrinkable protective sleeve



    Protecting fiber splices

    Configuration as per capacity

    2

    Nylon tie



    Fixing fiber with protective coat

    Configuration as per capacity

    3

    Heat shrinkable fixing sleeve (single)



    Fixing and sealing single fiber cable

    Configuration as per requirement

    4

    Heat shrinkable fixing sleeve (mass)



    Fixing and sealing mass of fiber cable

    Configuration as per requirement

    5

    Branching clip



    Branching fiber cables

    Configuration as per requirement

    6

    Earthing wire

    1 piece

    Putting through between earthing devices



    7

    Desiccant

    1 bag

    Put into FOSC before sealing for desiccating air



    8

    Labeling paper

    1 piece

    Labeling fibers



    9

    Special wrench

    1 piece

    Tightening nut of reinforced core



    10

    Metal hoop

    1 set

    For wall mounting and pole hugging



    11

    Buffer tube



    decided by customers

    Hitched to fibers and fixed with FOST, managing buffer.

    Configuration as per requirement

    12

    Aluminum foil paper

     1 pc

    Protect the bottom of Fiber Optic Splice Closure and cable inlet/outlet tubes when heat the heat shrinkable sleeves.
