Description:

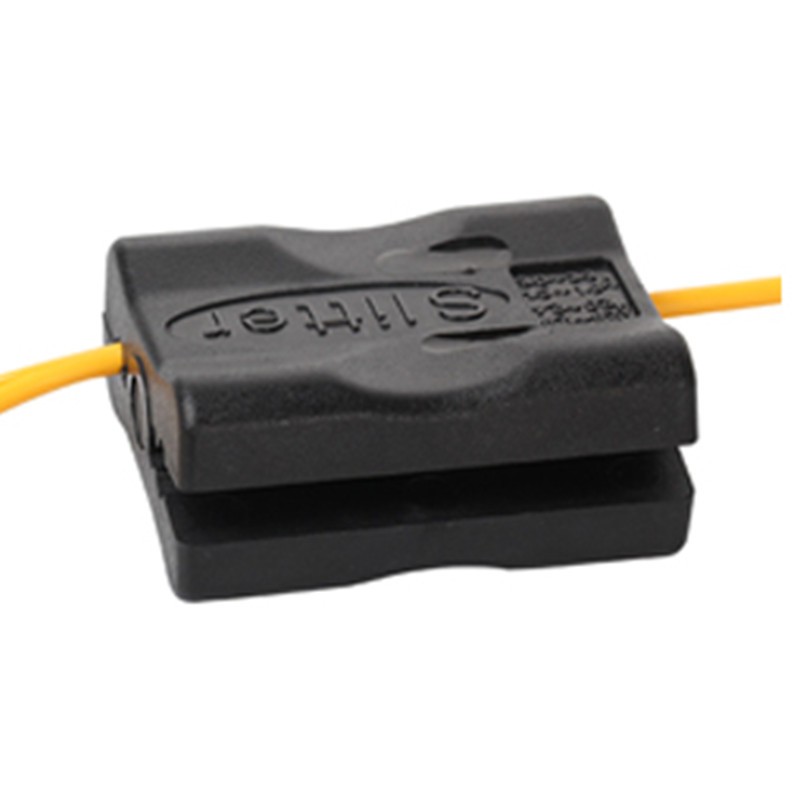

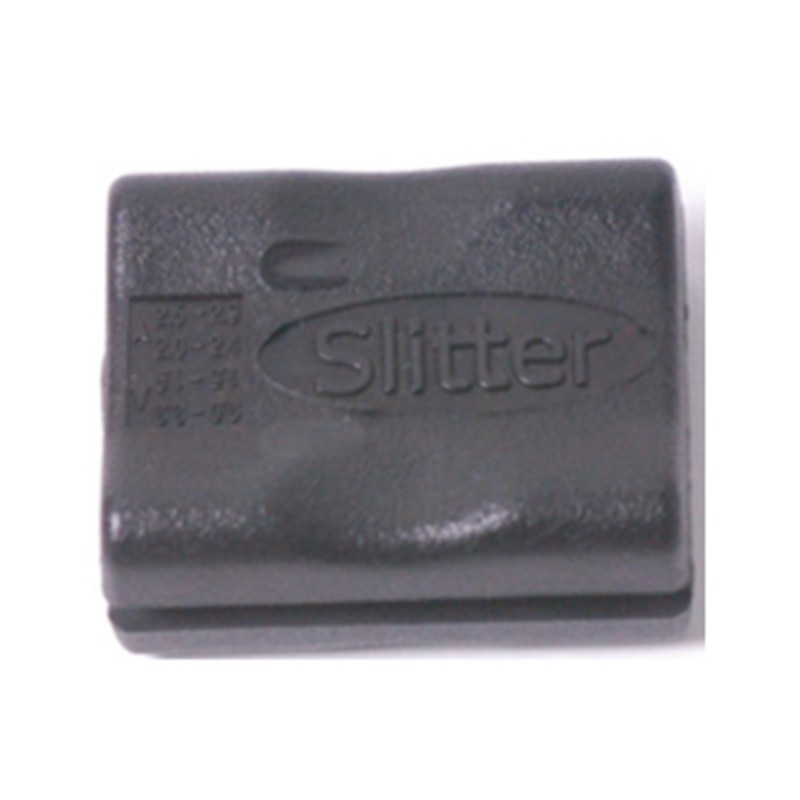

Buffer Tube Slitter is especially designed for stripping the outer jacket of a patchcord or a pigtail. It can slit loose tubes of ￠1.5mm~3.3mm longitudinally. It has 4 rails on the body. Each rail is for the tube of specified diameter so that the stripping precision can be improved.
Features:
· Compact design, light weight, portable
· 4 guide rails for tubes with different diameters
· Composed with high quality metal blades, more durable
· High precision rail design, ensure the integrality of the fiber
Specifications:
|
Dimension (mm) |
52*38*22 |
|||
|
Weight (kg) |
0.03 |
|||
|
Body Material |
Stainless steel |
|||
|
Stripping Cycles |
2*1000 cycles |
|||
|
Dimension (mm) |
52*38*22 |
|||
|
Guide Rail Diameter (mm) |
φ1.5~1.9 |
φ2.0~2.4 |
φ2.5~2.9 |
φ3.0~3.3 |
