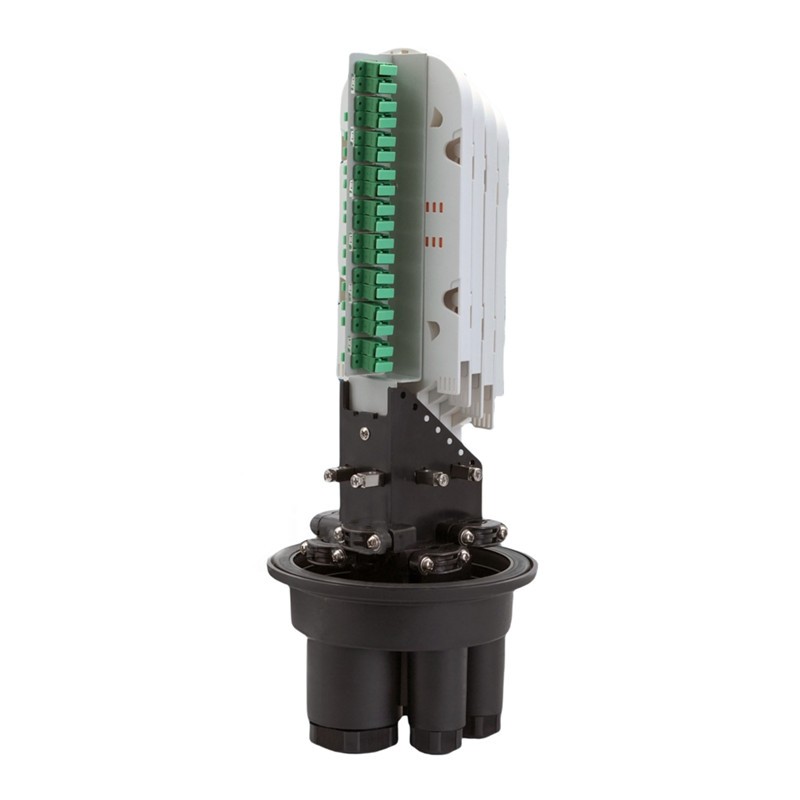

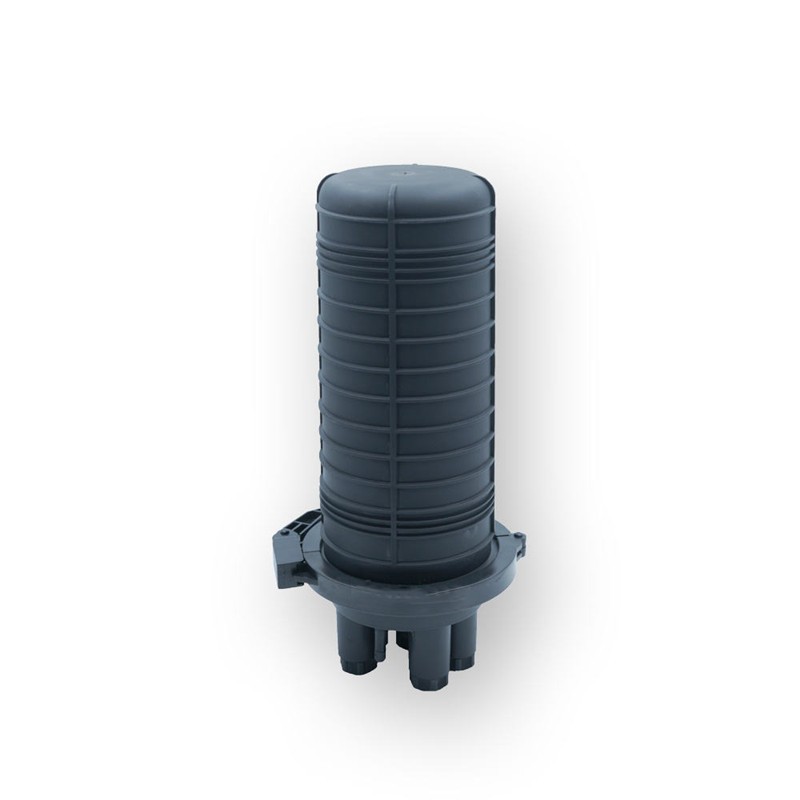

Description
Main Features
l All functional indicators are in line with the national YD/T814.1 standard for distribution box.
l 5 cable ports (4 small round and 1 large oval holes), the large one can be used for digging (suits for 1 cable in and 1 cable out).
l The outer box body is made of high-strength engineering plastics, it has features of light weight, high mechanical strength, anti aging, strong corrosion resistance, lightning resistance, and long service life.

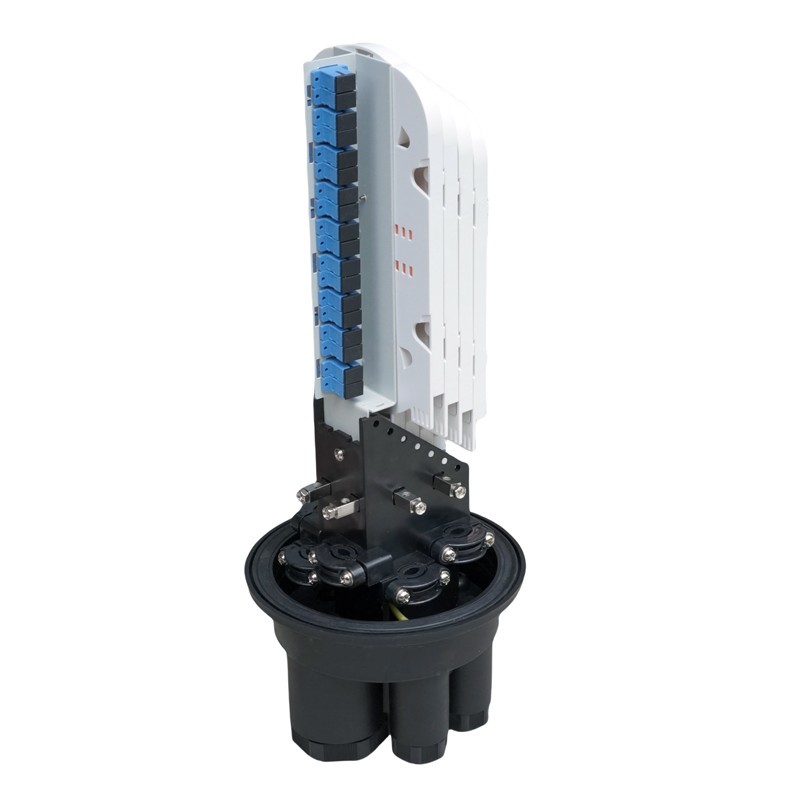

l Stacked structure splice tray and independent insulation grounding device make it flexible, convenient and safe for the optical fiber core configuration, expansion and the cable grounding.
Applicable environment
Operating temperature：-40℃～+65℃
Relative humidity：≤85% (+30℃)
Atmospheric pressure：70Kpa～106Kpa
Protection class:IP68
Dimension and capacity
|
Size (mm) |
￠230*445 |
|
Cable port |
1 oval hole, 4 round holes |
|
Cable diameter (mm) |
￠7～F18 |
|
Splice tray capacity |
24 (single core) |
|
Max splice tray number |
6 |
|
Max core capacity |
144 (single core) |
|
Max splitting |
1:16(2pcs), 1:32(1pc) |
|
Sealing type |
Threaded mechanical seal, silicon rubber |
Main accessories and special tools
|
Case body |
1 set |
Stainless steel wall mounting set |
1 set (optional) |
|
Splicing bag (12 pc/bag) |
according to the type |
Bare fiber protection tube (L=400mm) |
1～4 pcs (optional) |
|
Allen wrench |
1 pc |
Pole connector |
2pcs (optional) |
|
Plastic wrench |
Each 4 pcs |
Stainless steel hose hoop |
4 pcs (optional) |
|
￠27mm double layer plug(assembly) |
4 sets |
￠27mm plug for 8 cables (￠3mm) |
4 pcs (optional) |
|
Cable ring (2type) |
4pcs each |
￠27mm plug for 4 cables (￠7mm) |
4 pcs (optional) |
|
|
|
￠27mm plug for 6 drop cables (2×5mm) |
4 pcs (optional) |
|
|
|
￠27mm plug for 8 drop cables (2×3mm) |
4 pcs (optional) |
