Description
Features:
Simultaneous linnear (mW) and non-linear (dBm) display;
Automatic frequency identification;
Threshold setting;
Support 1,000 data storage;
Support USB connection with PC for data transfer;
Support Backlight Level 4;
Support user self-calibration;
Support FC/SC/ST interfaces;
Support USB Power Supply.
Specification:
1. Optical Power Meter:
|
Model |
QH22A |
QH22B |
|
Measuring Range |
-70 to +10dBm |
-50 to +26dBm |
|
Calibrated Wavelength |
850/980/1300/1310/1490/1550/1625/1650nm |
|
|
Working Wavelength |
800~1700nm |
|
|
Detector Type |
InGaAs |
|
|
Resolution |
Linear display: 0.1%, logarithmic display:0.01dBm |
|
|
Linearity |
±5% |
|
|
Data Storage |
1,000 |
|
|
Tone Detection |
270, 330, 1k, 2kHz |
|
|
Connector |
FC/SC |
|
2. Optical Light Source:
|
Wavelength |
1310/1550±20nm |
1310/1490/1550±20nm |
|
Emitter Type |
FP-LD |
|
|
Output Power |
≥-5dBm |
|
|
Output Stability |
Short term (15 min): ±0.05dB@1310/1550nm, ±0.1dB@1490nm |
|
|
Long term (8 hours): ±0.1dB@1310/1550nm, ±0.2dB@1490nm |
||
|
Output Frequency |
CW, 270Hz, 330Hz, 1kHz, 2kHz |
|
|
Power Regulation |
0~6dB, 1dB step |
|
|
Connector |
FC/SC |
|
3. Visual Fault Locator:
|
Wavelength |
650±30nm |
|
Output Power |
10mW |
|
Modulation Frequency |
CW/1Hz/2Hz |
|
Connector |
Universal 2.5mm adapter (FC/SC/ST) |
Other Specification:
|
Power supply |
Rechargeable Lithium battery (2400mAh) |
|
Automatic Shutoff Time |
10min |
|
Continuous Working Time |
12h |
|
Backlight |
Yes |
|
USB Interface |
Yes |
|
Dimension |
186*100*50mm |
|
Net Weight |
240g |
|
Operating Temperature |
-10 to +50℃ |
|
Storage Temperature |
-40 to +70℃ |
|
Relative Humidity |
0~95% (non-condensing) |
Standard Accessory:
|
Item |
Name |
Quantity |
|
1 |

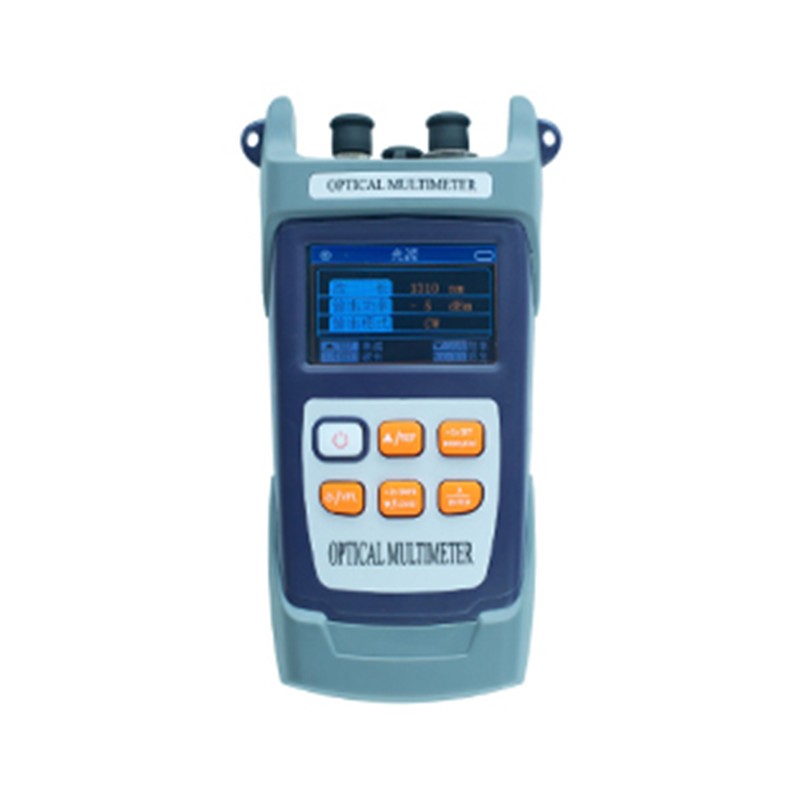

Optical Multimeter with FC Adapters |
1pc |
|
2 |
SC Adapter for OPM Port |
1pc |
|
3 |
SC Adapter for OLS Port |
1pc |
|
4 |
User Manual |
1pc |
|
5 |
2400mAh Lithium Battery |
1pc |
|
6 |
Data Line |
1pc |
|
7 |
CD with software |
1pc |
|
8 |
Soft Bag |
1pc |
Optional Accessory:
|
Item |
Name |
Quantity |
|
1 |
ST Adapter for OPM Port |
1pc |
|
2 |
ST Adapter for OLS Port |
1pc |
|
2 |
Male FC to female LC adapter for LC connector |
2pcs |
|
3 |
AC/DC Power Adapter |
1pc |
Ordering Information:
Model: QH22X-X-X
|
Model |
X: OPM Range |
X: OLS |
X: Interface |
|
QH22 |
A: -70~+10dBm |
S: 1310/1550nm |
None: UPC (default) |
|
B: -50~+26dBm |
M: 850/1300nm |
A: APC |
|
|
|
T: 1310/1490/1550nm |
|
Note: Optical port for 850/1300nm is UPC interface.
