Description
Description

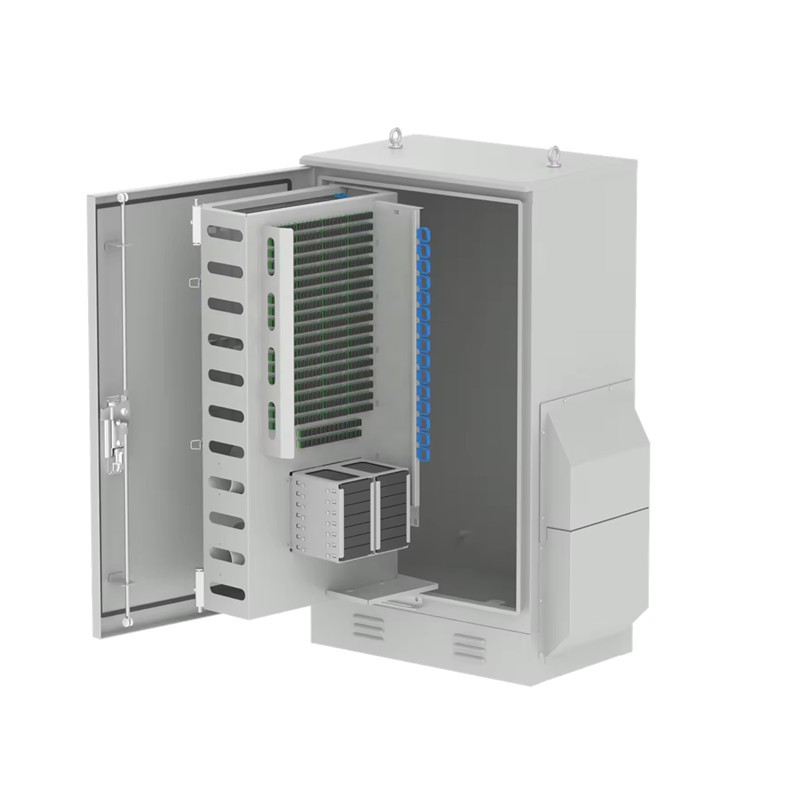

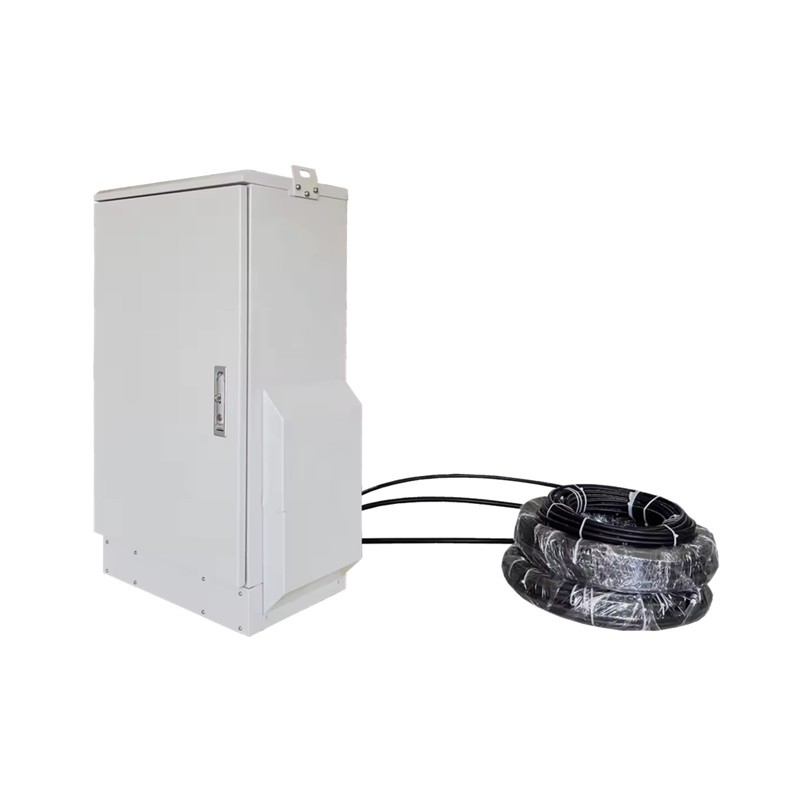

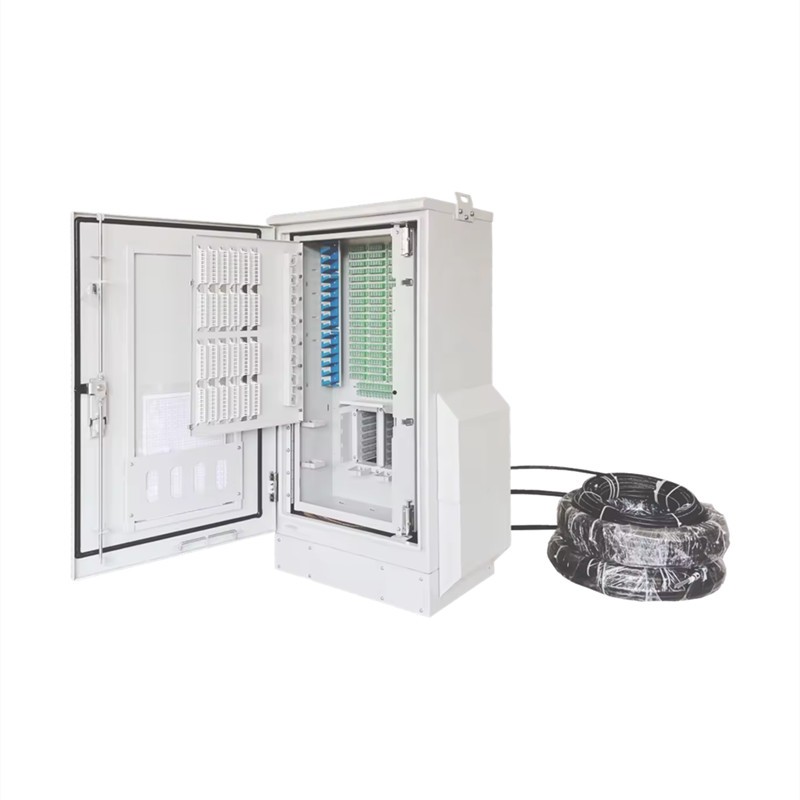

FDC-06-432 Optic Fiber Splitter Cabinet is used for optic splitting .Genrally 2 pcs 24 cores feeder cables come into this cabinet and 2 pcs 216 cores distribution cables go out of the cabinet.The input cable of splitters connect to the feeder cable and the output cable of splitters connect to the distribution cables.And usually there is a splicing closure locate not far away from the cabinet used to splice the cables with the others .The cabinet and the splicing closure usually used in pairs.
Paramenters
|
Model |
FDC-06-432 |
|
Material |
Stainless Steel |
|
Color |
Gray (Default RAL 7035) |
|
Adapter Type |
SC |
|
Adaptor Capacity |
460 Ports |
|
Splitter Capacity |
18 Pcs |
|
Splitter Type |
1:32 , Box Type |
|
Parking Lot Capacity |
192 Ports |
|
Installation Method |
Ground-mounted |
|
IP Grade |
IP 65 |
|

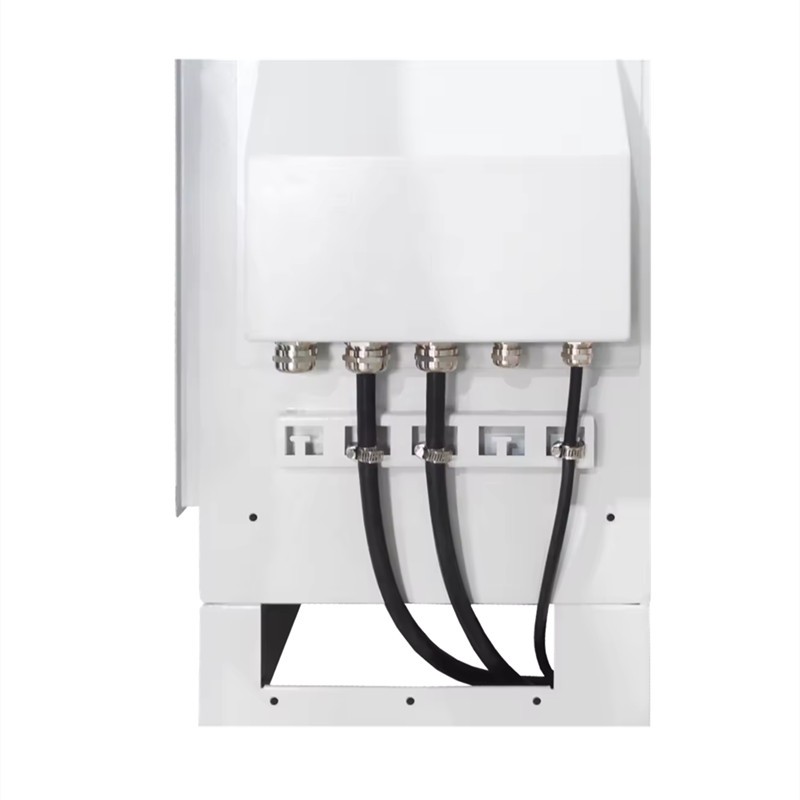

Cable Fixing Place |
5 Places |
|
Size |
H×W×D = 1020×585×355 (mm) |
