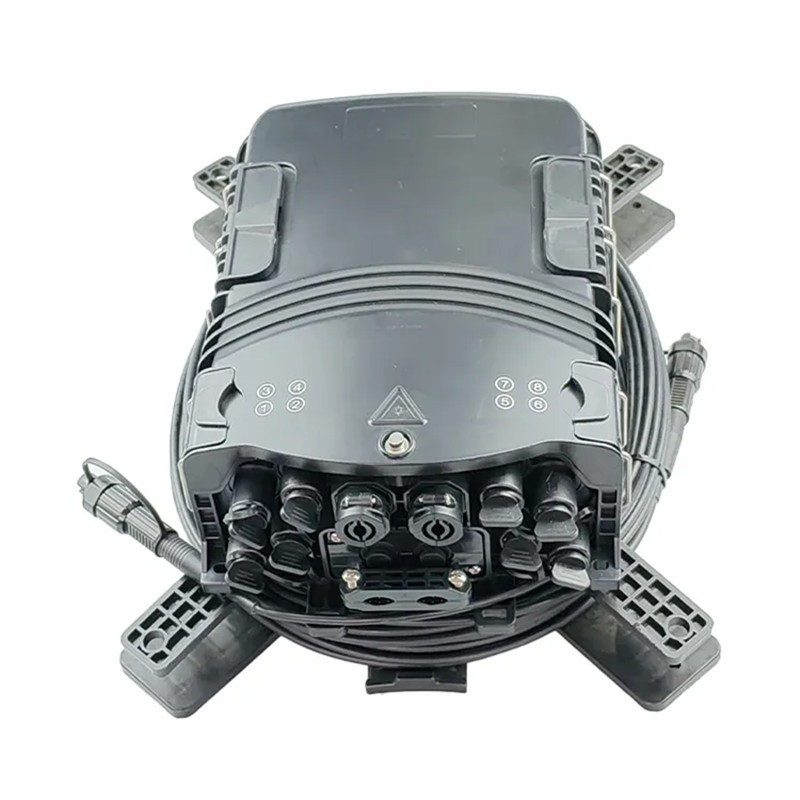

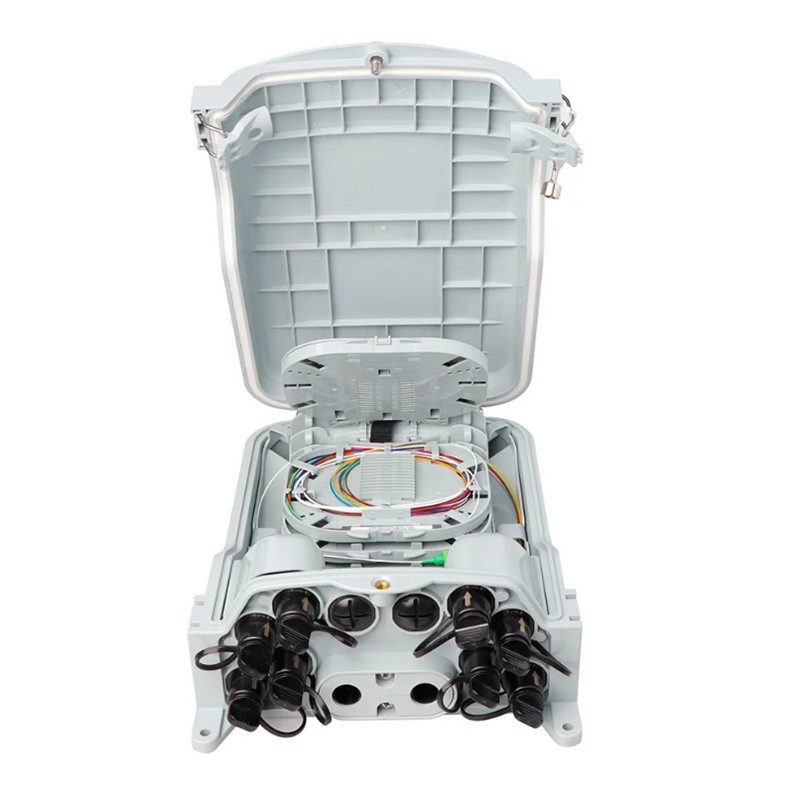

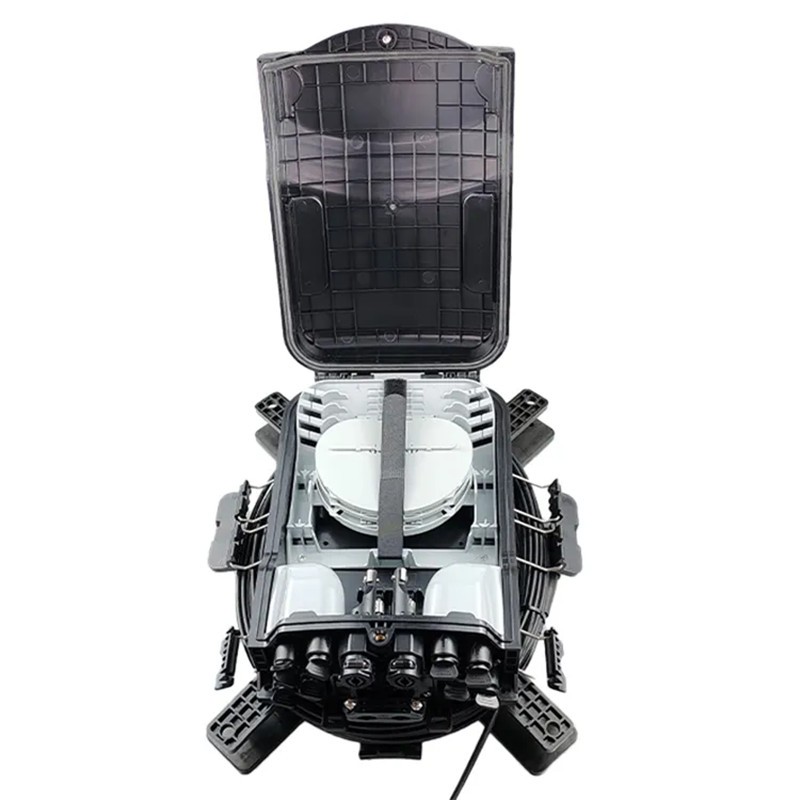

FAT-8C08 NAP box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features:
1. Total enclosed structure.
2. Material:PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
4. Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed by expression port,easy for maintenance and installation.
6. Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.
Specification:
1. Environmental requirement
Working temperature: -40℃～+85℃
Relative humidity: ≤85% (+30℃)
Atmospheric pressure: 70KPa~106Kpa
2. Main technical datasheet
Insertion loss: ≤0.3dB
UPC return loss: ≥50dB
APC return loss: ≥60dB
3. Thunder-proof technical datasheet
The insulation resistance between the grounding device and the metal parts of the box is no less than 210
4 MΩ/500V (DC); IR≥210
4 MΩ/500V.
The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V (DC)/min, no puncture, no flashover; U≥3000V
Configuration table:
| Model |
Size
A*B*C (mm)
|
Max Capacity |
Installation Size
D*E*F(mm)
|
Cable diameter
(mm)
|
Maximum size of
branch hole (mm)
|
Waterproof SC
adapter
|
| FAT-8C08 | 319.3*200*97.5 | 36 | 52*166*166 | ᴓ8~14 | ᴓ16 | 8 |

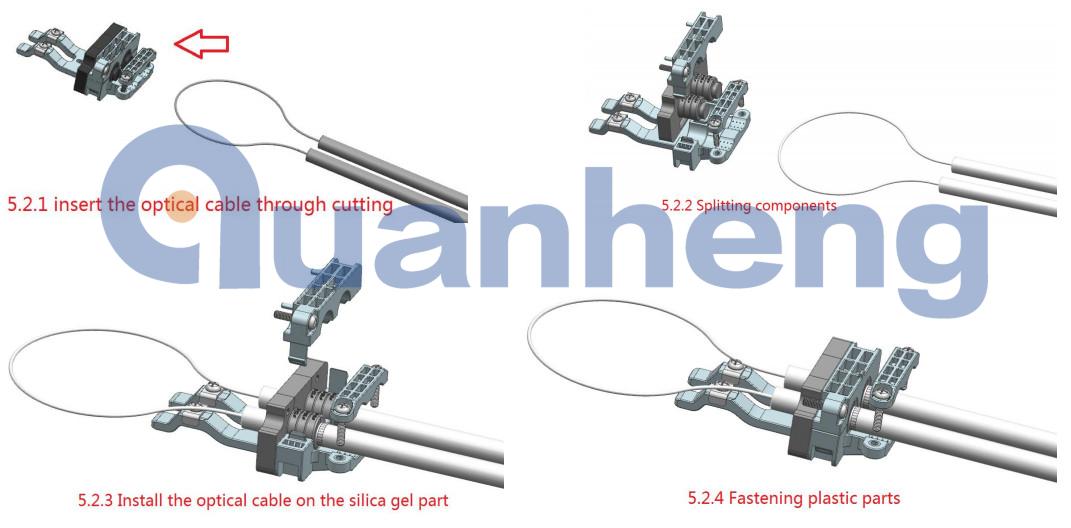

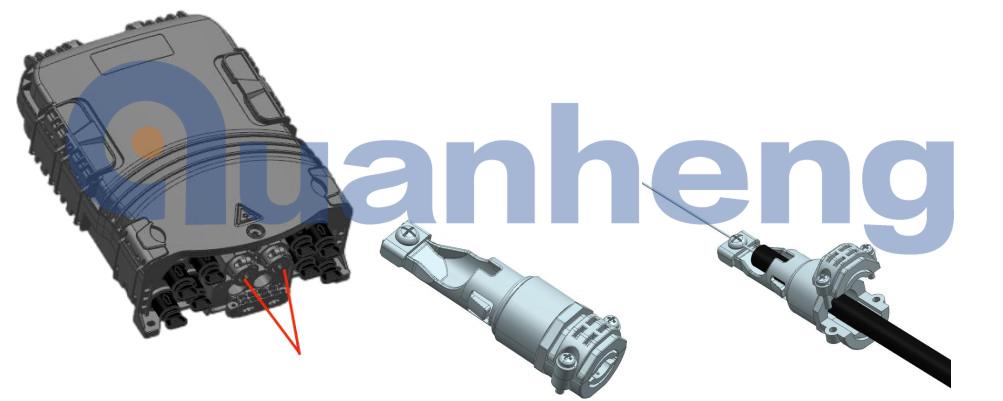

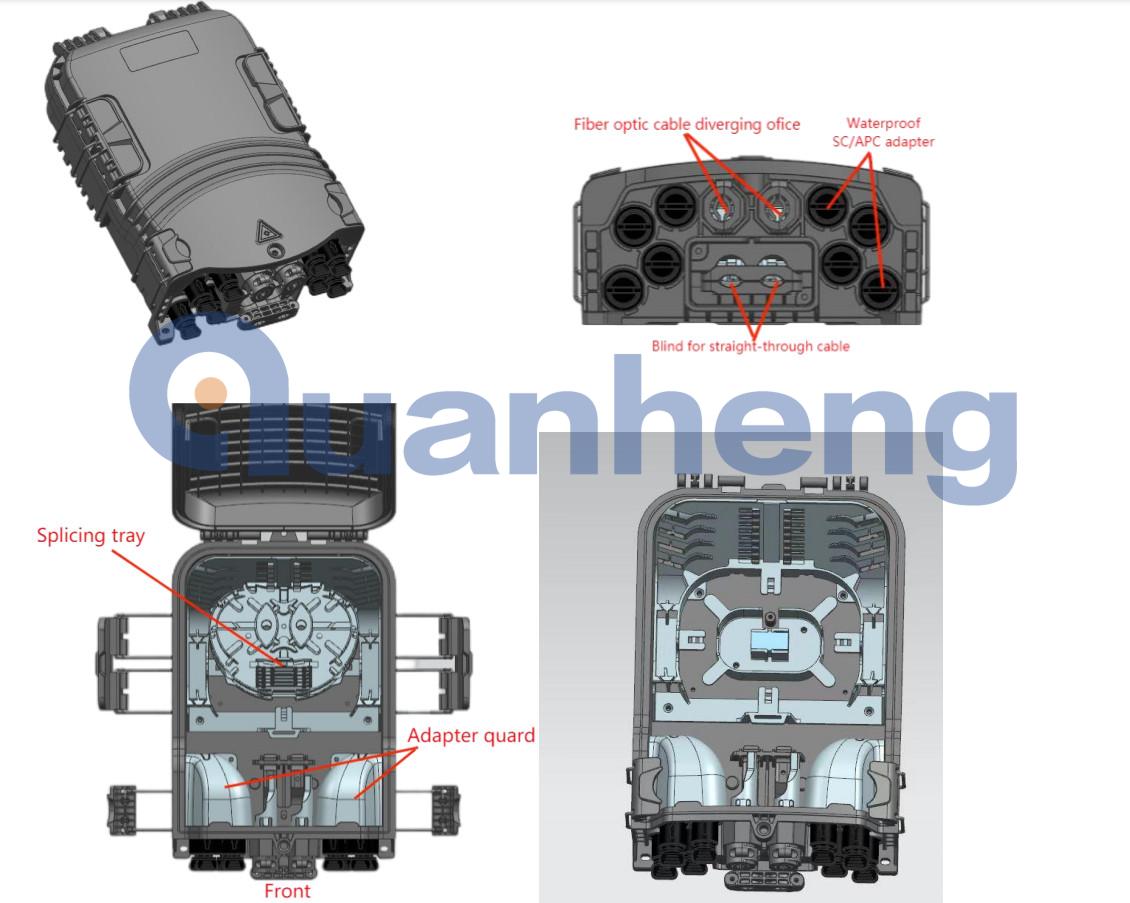

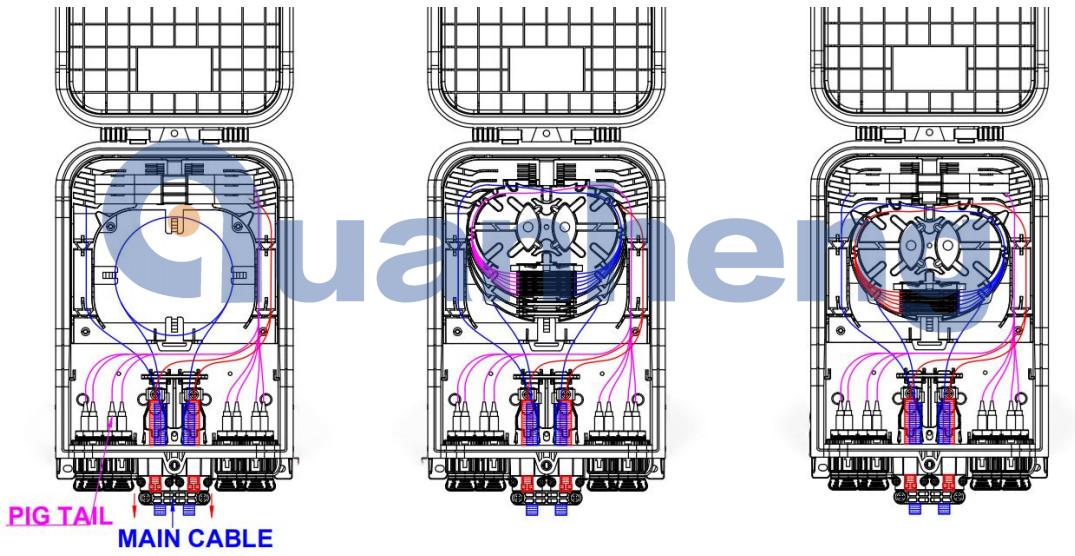

Product cable ways:
Fast Plug
Fast installation, fastening, and sealing of straight-through optical cable with the FastPlug.
Fiber optic cable bifurcation

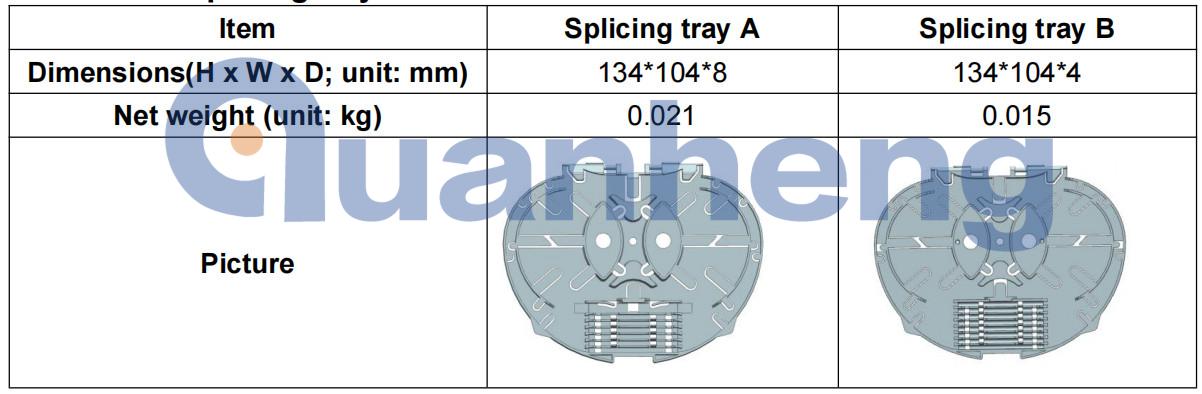

Splicing tray
Installation:
1. Wall-mounted installation
Drill 3 holes into the wall based on the size in table 1, place the expansion bolt Φ7.5*40,place the box to match up the holes and use bolt to fasten.

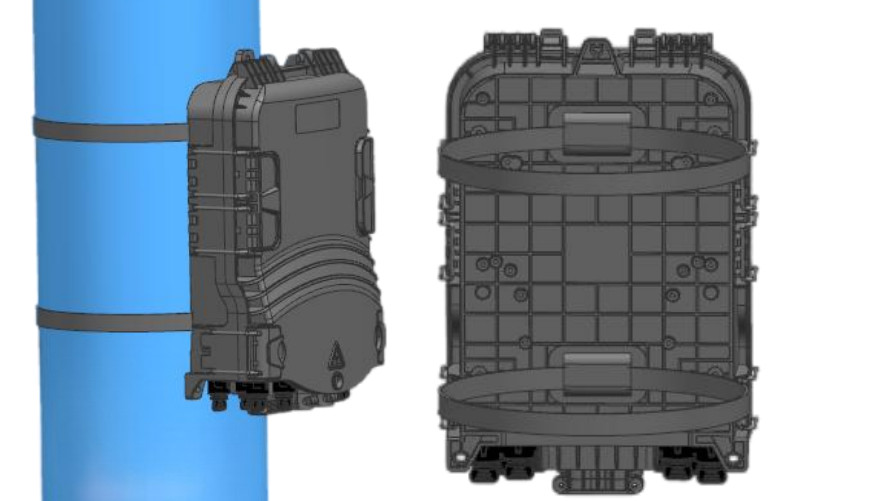

2. Pole-mounted installation Fix 1 set of the pole ring to the telecom pole.

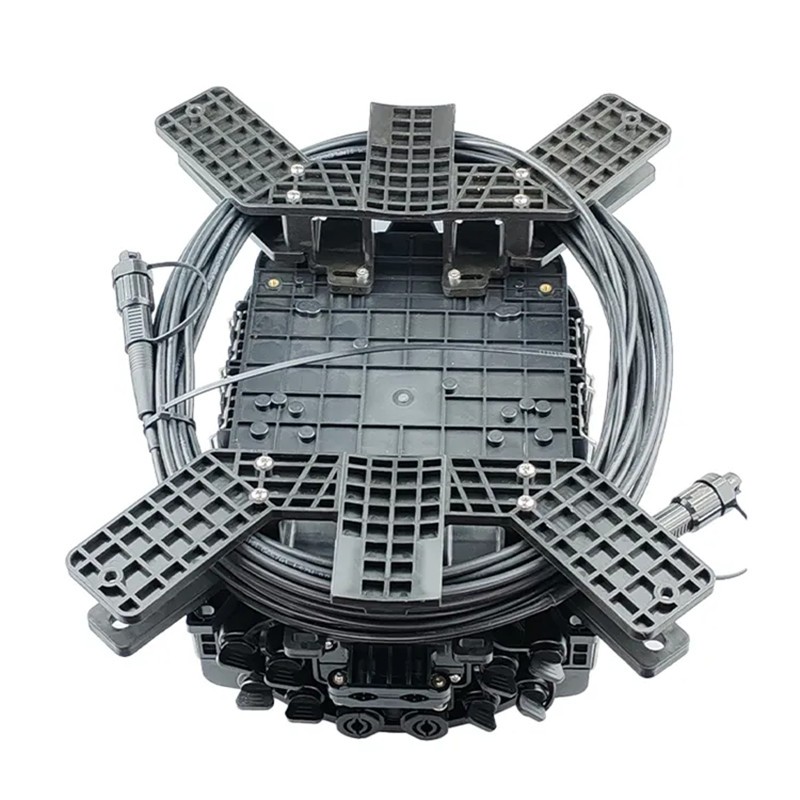

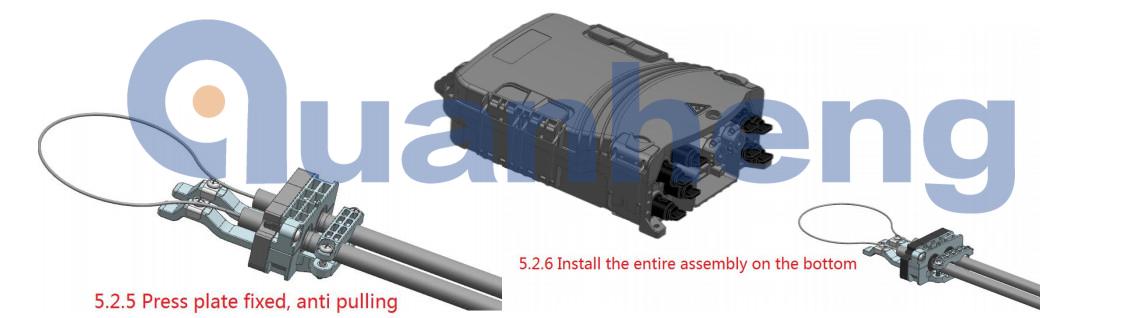

3. The overhead structure
Tie the two installed on the chassis of the overhead hung on the wire, and then bolted,prevent the case fall off.
