Description
Feature:
Both linnear (mW) and non-linear (dBm)
User calibration
Wavelength memory function
Specification:
|
Model |
QH10A |
QH10B |
|
Measuring Range |
-70 to +10dBm |
-50 to +26dBm |
|
Calibrated Wavelength |
850/980/1300/1310/1490/1550/1625/1650nm |
|
|
Detector Type |
InGaAs |
|
|
Resolution |
Linear display: 0.1%, logarithmic display:0.01dBm |
|
|
Linearity |
±5% |
|
|
Automatic Shutoff Time |
10min |
|
|
Continuous Working Time |
12h |
|
|

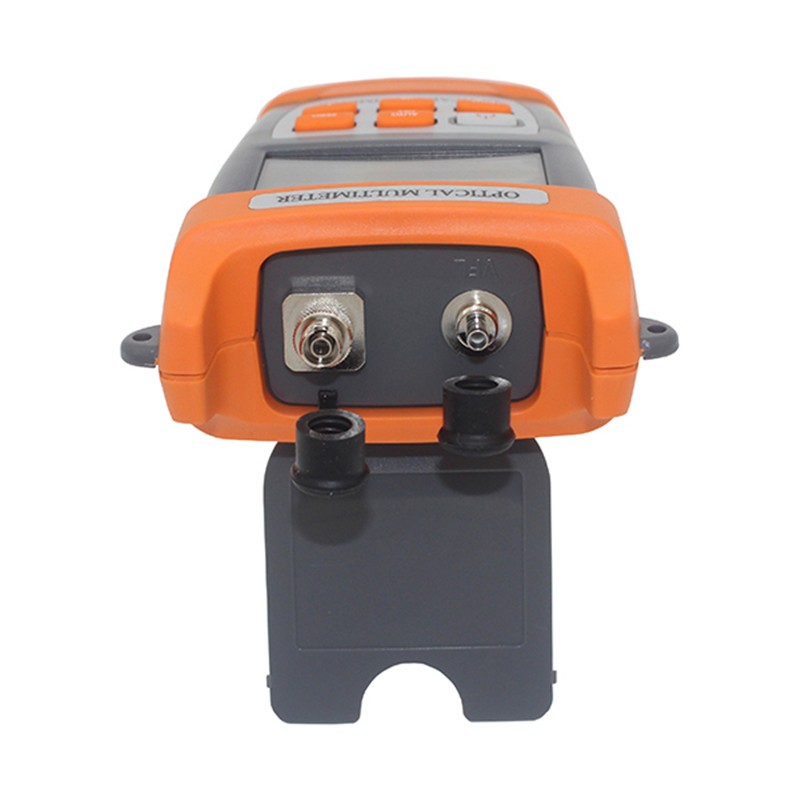

Connector |
Interchangeable FC, SC, ST |
|
|
Tone Detection |
270, 330, 1k, 2kHz |
|
|
Power supply |
3*AA dry batteries or Rechargeable Lithium battery (1500mAh) |
|
|
Backlight |
Yes |
|
|
Dimension |
186*100*50mm |
|
|
Net Weight |
140g |
|
|
Operating Temperature |
-10 to +50℃ |
|
|
Storage Temperature |
-40 to +70℃ |
|
|
Relative Humidity |
0~95% (non-condensing) |
|
Visual Fault Locator:
|
Wavelength |
650±30nm |
|
Output Power |
2, 10, 30mW for option |
|
Modulation Frequency |
CW/1Hz/2Hz |
|
Connector |
Universal 2.5mm adapter (FC/SC/ST) |

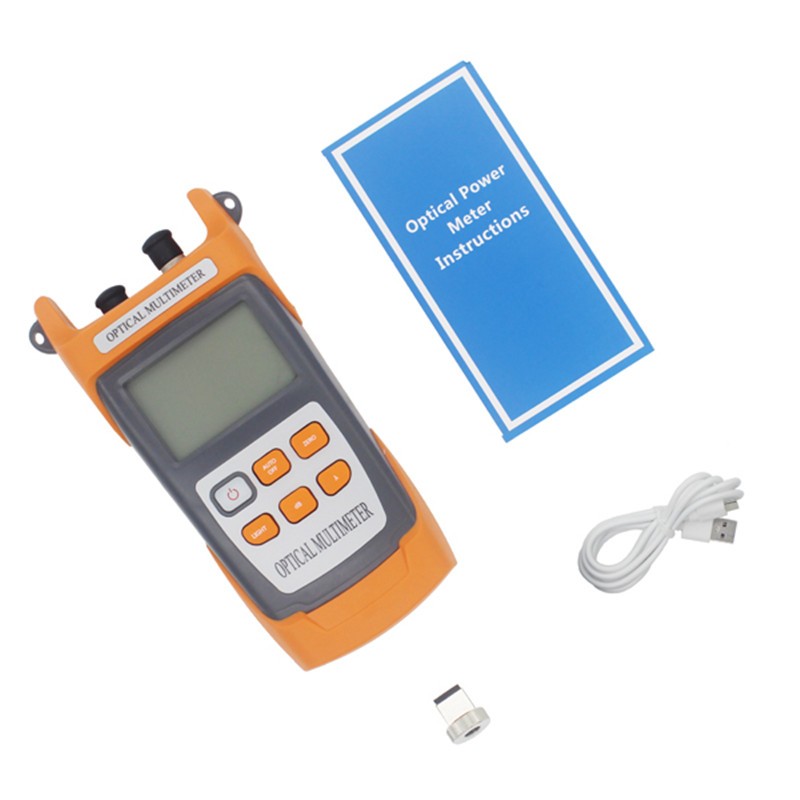

Standard Accessory:
|
Item |
Name |
Quantity |
|
1 |
Optical Power Meter |
1pc |
|
2 |
User Manual |
1pc |
|
3 |
AA Dry Batteries |
3pcs (for dry battery model) |
|
4 |
1500mAh Lithium Battery |
1pc (for Lithium battery model) |
|
5 |
Data Line |
1pc (for Lithium Battery model) |
|
6 |
FC Adapter for OPM Port |
1pc |
|
7 |
SC Adapter for OPM Port |
1pc |
Optional Accessory:
|
Item |
Name |
Quantity |
|
1 |
ST Adapter for OPM Port |
1pc |
|
2 |
Male FC to female LC adapter for LC connector for OPM or VFL Port |
1pc |
|
3 |
AC/DC Power Adapter |
1pc (for Lithium Battery mode |
Ordering Information:
Model: QH10X-X-X
|
Model |
X: OPM Range |
X: Battery |
X: VFL |
|
QH10 |
A: -70~+10dBm |
D: Dry Battery |
2: 2mW |
|
B: -50~+26dBm |
L: Lithium Battery |
10: 10mW |
|
|
|
|
30: 30mW |
