Description
Main Features
Made of high quality engineer plastic material ,Good mechanical strength, Elegant appearance, sturdiness and durability.
Suitable for indoor or outdoor ,wall-mounted , pole installation.

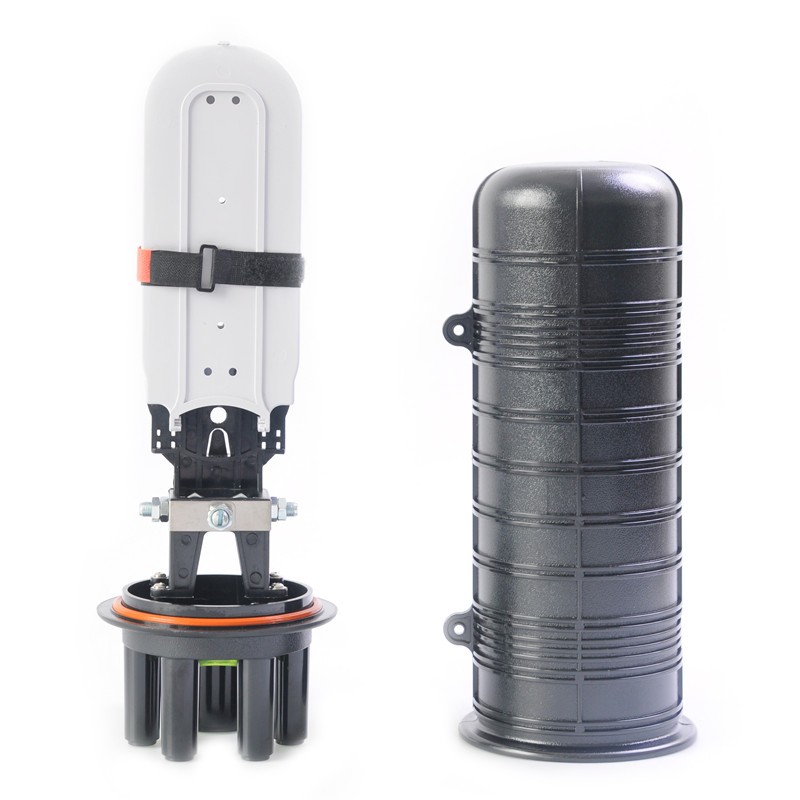

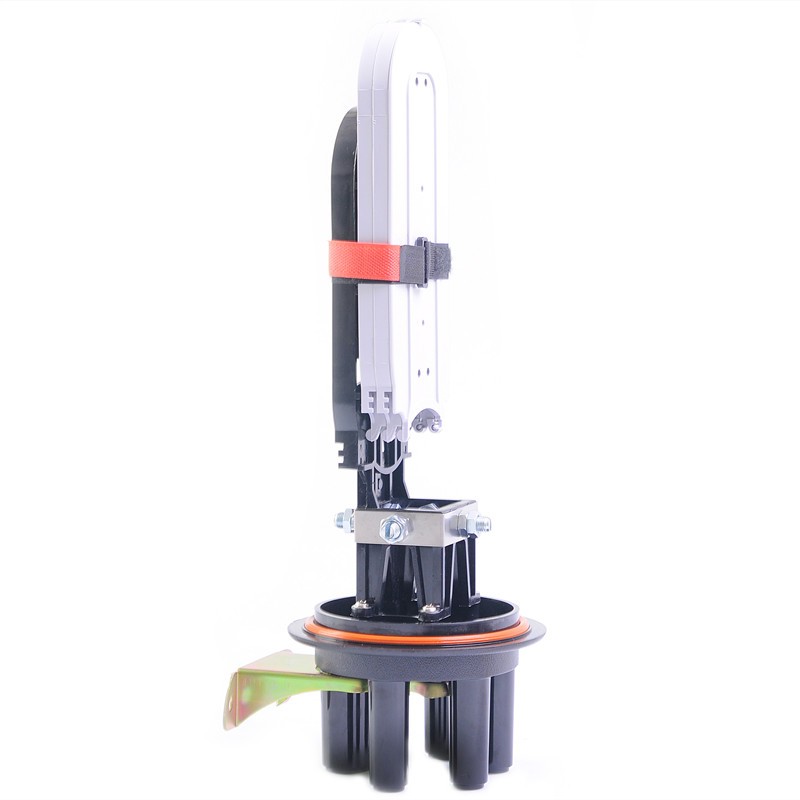

Built-in Stacked splice tray, easy for open, the splice tray can be taken down, easy for installation and maintenance.
Fiber routing is reasonable.
Clamping for fiber splicing, fixation, storage, distribution...etc all in one.
Applicable environment
Operating temperature：-40℃～+65℃
Relative humidity：≤85% (+30℃)
Atmospheric pressure：70Kpa～106Kpa
Protection class:IP67
Dimension and capacity
|
Outside dimension (Height x Diameter) |
435mm×190mm |
|
Weight (excluding outside box) |
2350 g— 2600g |
|
Number of inlet/out ports |
6 pieces in general |
|
Diameter of fiber cable |
Φ8mm～Φ25 mm |
|
Capacity of FOSC |
Bunchy: 12-96 (cores), Ribbon: up to 288 (cores) |

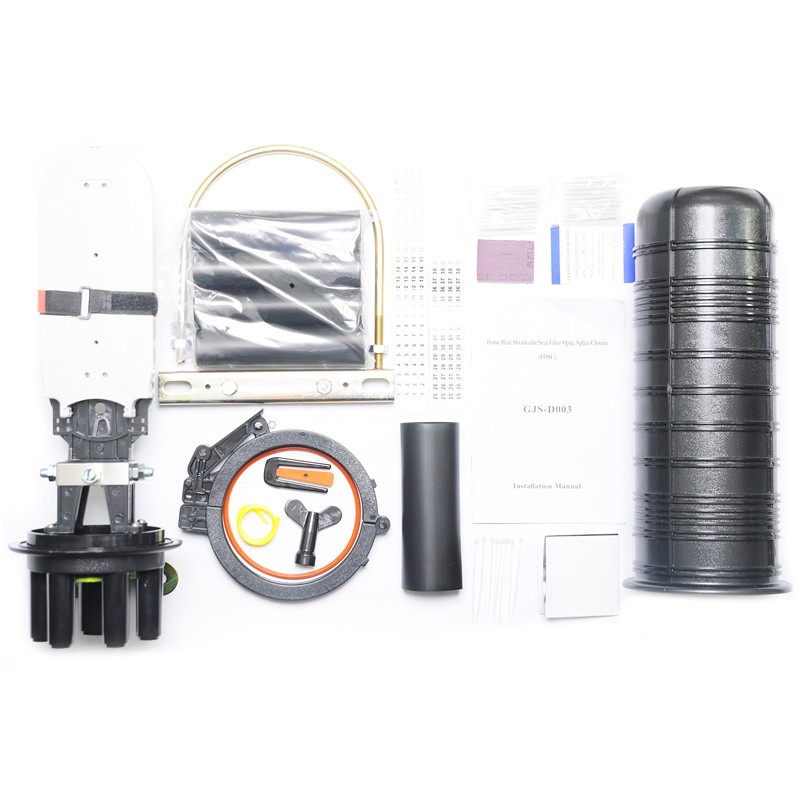

Main accessories and special tools
|
No. |
Name of accessories |
Quantity |
Usage |
Remarks |
|
1 |
Heat shrinkable protective sleeve |
|
Protecting fiber splices |
Configuration as per capacity |
|
2 |
Nylon tie |
|
Fixing fiber with protective coat |
Configuration as per capacity |
|
3 |
Heat shrinkable fixing sleeve (single) |
|
Fixing and sealing single fiber cable |
Configuration as per requirement |
|
4 |
Heat shrinkable fixing sleeve (mass) |
|
Fixing and sealing mass of fiber cable |
Configuration as per requirement |
|
5 |
Branching clip |
|
Branching fiber cables |
Configuration as per requirement |
|
6 |
Earthing wire |
1 piece |
Putting through between earthing devices |
|
|
7 |
Desiccant |
1 bag |
Put into FOSC before sealing for desiccating air |
|
|
8 |
Labeling paper |
1 piece |
Labeling fibers |
|
|
9 |
Special wrench |
1 piece |
Tightening nut of reinforced core |
|
|
10 |
Metal hoop |
1 set |
For wall mounting and pole hugging |
|
|
11 |
Buffer tube
|
decided by customers |
Hitched to fibers and fixed with FOST, managing buffer. |
Configuration as per requirement |
|
12 |
Aluminum-foil paper |
1 piece |
Protect the bottom of FOSC |
|
