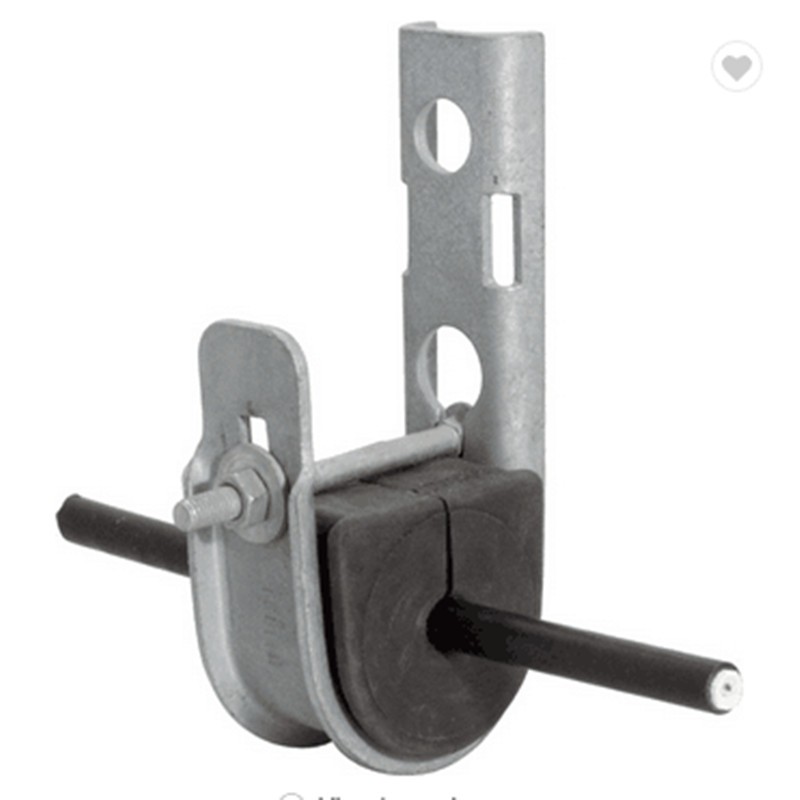

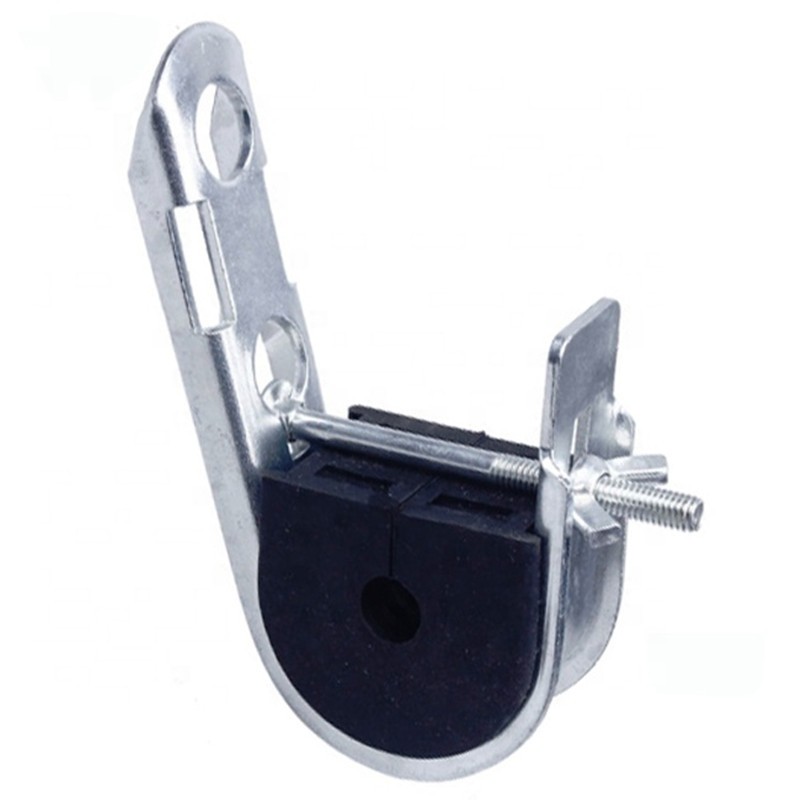

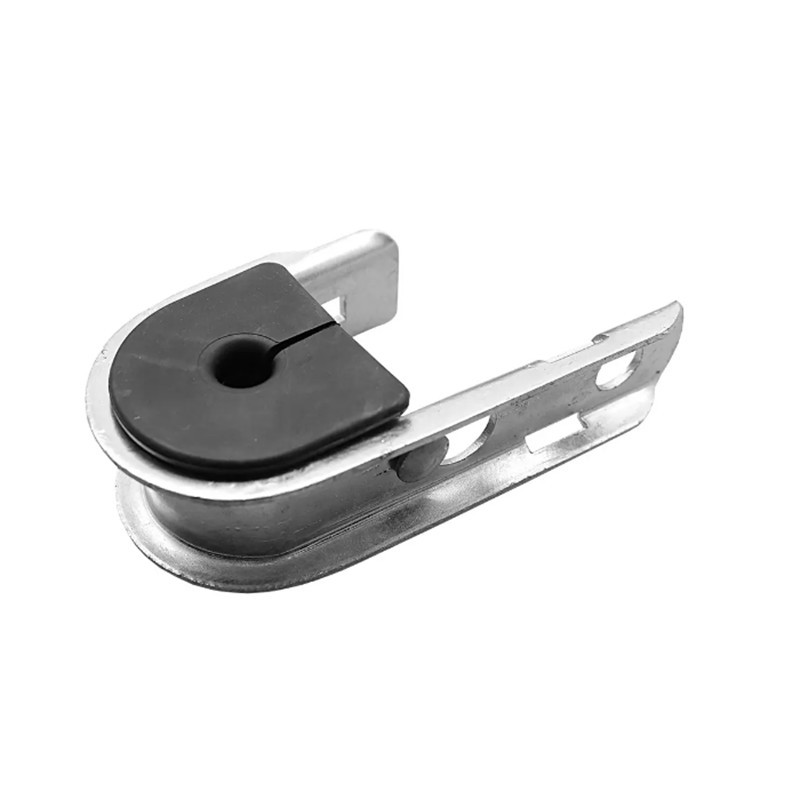

FTTH J hook ADSS Suspension Clamp

Product Item：FTTH J hook ADSS Suspension Clamp

Range of ADSS cables from 5 to 20mm

The shape of the J hook suspension clamp allows a running out of the cable directly in the hook

The suspension clamps can be directly secured to the poles using bolts or bandings

Hook clamps also can be installed on hook bolts to provide some flexible suspension point

Description

Description

J hook suspension clamp / Suspension clamp are designed to provide a suspension for 5 to 20mm aerial ADSS cables at intermediate poles on cable routes with angle < 20° on access networks (spans up to 100m).
The suspension clamp J hook consist with J hook,screw and sleeve.

Features

1. Range of ADSS cables from 5 to 20mm;

2. The shape of the J hook suspension clamp allows a running out of the cable directly in the hook;

3. The suspension clamps can be directly secured to the poles using bolts or bandings;

4. Hook clamps also can be installed on hook bolts to provide some flexible suspension point and give extra protection to the cable against wind induced vibrations.

Application

Widely applied in cable connecting fittings, to support wire, conductor, cable in transmission line fittings.

Local Area Networks.

Suit for ADSS Fiber Optic Round Cable.

Telecommunication Networks.

Fiber to the Home (FTTH).

Other applications in Fiber optical systems.

Specification

Product Name	FTTH J hook ADSS Suspension Clamp
Material	UV resistant plastic and galvinized steel
Suitable Cable OD	HC 5-8:5~8mm HC 8-12:8~12mm HC 10-15:10~15mm HC 15-20:15~20mm
Breaking Load (KN)	4 KN
Color	Black and silver
