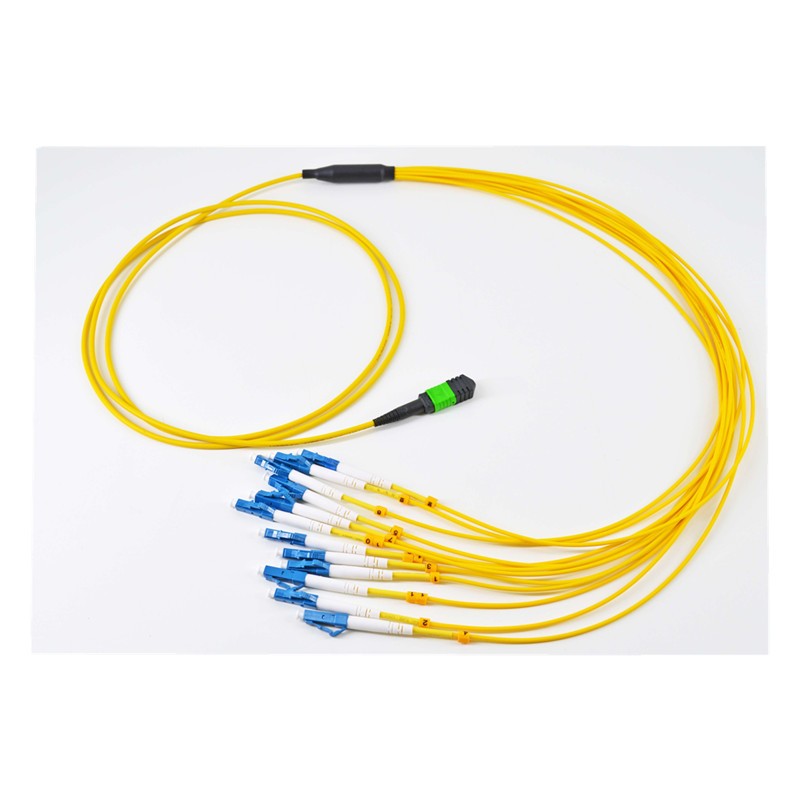

MPO - LC patchord

Description

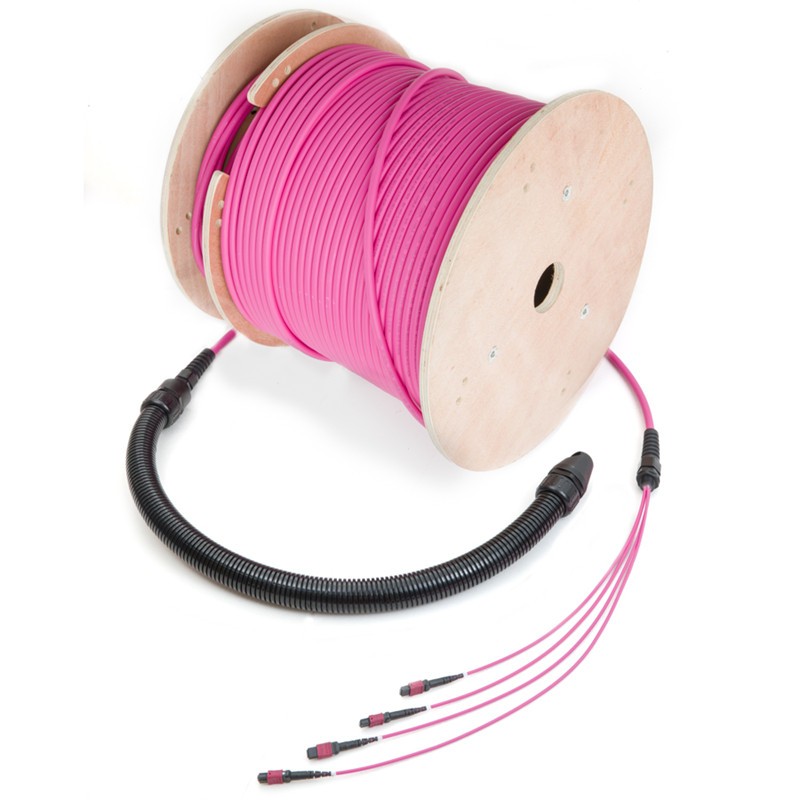

Quanheng's MTP / MPO harness assemblies are used to fanout the 8-, 12-or 24-fiber MTP connectors terminated on trunk cables into LC connectors. It is used to transitioning from trunk backbone assemblies to fiber rack system. The ruggedized 2mm or 3mm furcation legs provide a more rugged solution than products with 900um legs, in turns provide excellent installation convenience and longer lifespan.

FEATURES AND APPLICATIONS
Deploy into the transition between trunk backbone assemblies and fiber rack system
- Wide employment of high density infrastructure
MTP/MPO on one end in 8-, 12-or 24-fiber interface, with LC single-fiber connectors on another end
- Provides an efficient pathway space in operation
LC Single-fiber connector available in forms of Simplex or Duplex channeling
- High Flexibility with reducing installation time and cost
Customized furcation length to cater for different installation situations
- Enhances installation convenience
Ruggedized furcation legs: Round fanoutkit with 2.0 mm or 3.0 mm legs to single-fiber connectors
- For space saving installation and longer lifespan
Available in different fiber modes including singlemode(OS2) & multimode (OM1 ~ OM5) with customized length and structure
- Satisfies client's needs in different industries
Optical perfprmance
MTP / MPO Termination
