Description
Features:
User calibration;
Wavelength memory function;
LED light for dark environment;
Suitable for SM and MM fibers;
Auto power-off;
Support Backlight;
Support frequency detection;
Low battery indication;
Both linnear (mW) and non-linear (dBm);
High capacity rechargeable lithium battery;

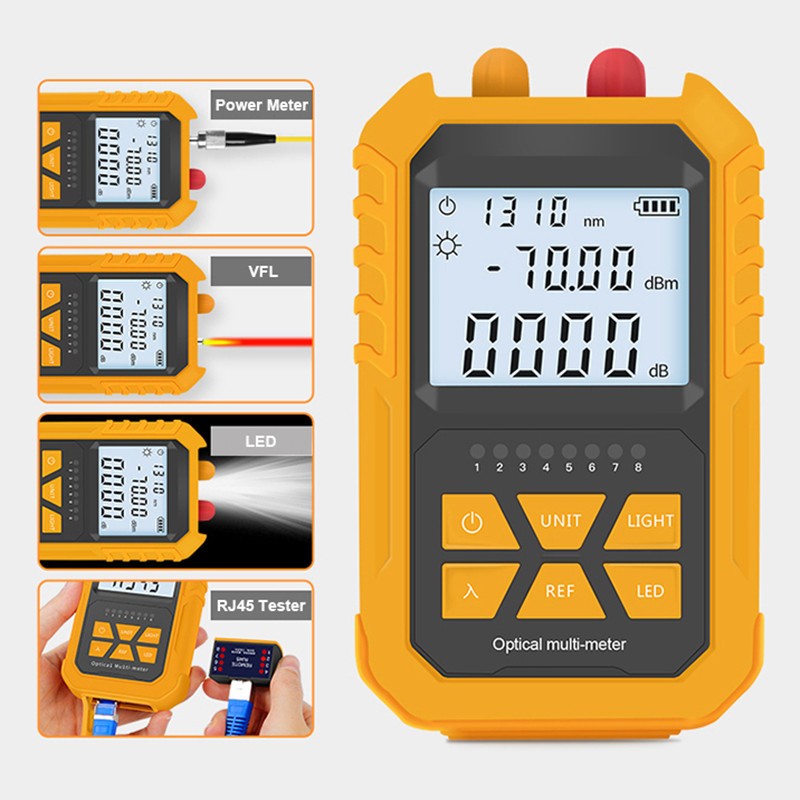

VFL and RJ45 Cable Tester are included.
Specification:
|
Model |
QH13A |
QH13B |
|
Measuring Range |
-70 to +3dBm |
-50 to +20dBm |
|
Calibrated Wavelength |
850/980/1300/1310/1490/1550/1625nm |
|
|
Detector Type |
InGaAs |
|
|
Resolution |
Linear display: 0.1%, logarithmic display:0.01dBm |
|
|
Linearity |
±5% |
|
|
Automatic Shutoff Time |
10min |
|
|
Continuous Working Time |
48h |
|
|
Connector |
Universal 2.5mm adapter (FC/SC/ST) |
|
|
Power supply |
Rechargeable Lithium battery |
|
|
Backlight |
Yes |
|
|
Dimension |
118*68*30mm |
|
|
Net Weight |
140g |
|
|
Operating Temperature |
-10 to +60℃ |
|
|
Storage Temperature |
-20 to +70℃ |
|
|
Relative Humidity |
0~95% (non-condensing) |
|
Visual Fault Locator:
|
Wavelength |
650±30nm |
|
Output Power |
10mW |
|
Connector |
Universal 2.5mm adapter (FC/SC/ST) |
Standard Accessory:
|
Item |
Name |
Quantity |
|
1 |
Optical Power Meter |
1pc |
|
2 |
User Manual |
1pc |
|
3 |
RJ45 Cable Tester |
1pc |
|
4 |
Rechargeable Lithium Battery |
1pc |
|
5 |
USB cable |
1pc |
