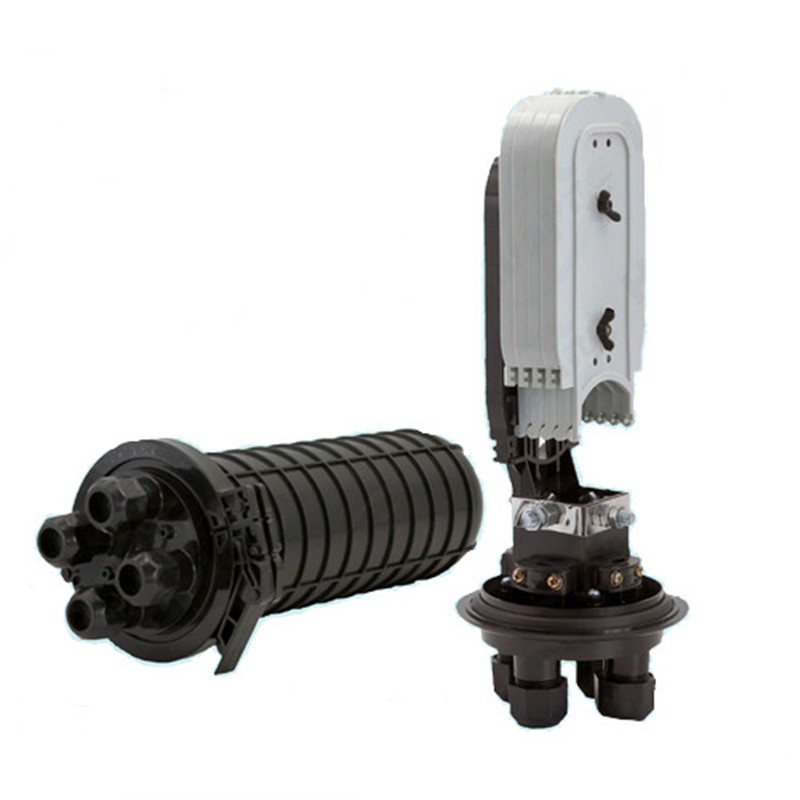

Description
Main Features
Made of high quality engineer plastic material ,Good mechanical strength, Elegant appearance, sturdiness and durability.
Suitable for indoor or outdoor ,wall-mounted , pole installation.
Built-in Stacked splice tray, easy for open, the splice tray can be taken down, easy for installation and maintenance.
Fiber routing is reasonable.
Clamping for fiber splicing, fixation, storage, distribution...etc all in one.
Applicable environment
Operating temperature：-40℃～+65℃
Relative humidity：≤85% (+30℃)
Atmospheric pressure：70Kpa～106Kpa
Protection class:IP68
Dimension and capacity
|
Outside dimension |
410mm×190mm |
|
Weight (excluding outside box) |
2400g-3000g |
|
Number of Inlet/outlet ports |
4 ports |
|
Diameter of fiber cable |
φ7mm-φ22mm |
|
Capacity of FOSC |
Bunchy 6-96cores Ribbon within 288 cores |
Main accessories and special tools
|
Item |
Name |
Quantity |
Use |
Remarks |
|
1 |
Heat shrinkable protective sleeve |
|
protecting fiber splices |
Configuration as per requirement |
|
2 |
Nylon tie |
|
Fixing fiber with protective coat |
Configuration as per requirement |
|
4 |
Abrasive cloth |
1 piece |
scratching fiber cable |
|
|
5 |
Labeling paper |
1 piece |
label fibers |
|
|
6 |
Special wrench |
2 pieces |
tighten reinforced nut and locking nut |
|
|
7 |
Adhesive tape |
1 roll |
enlarge diameter of fiber cable, which fits in with seal fitting |
Configuration as per capacity |
|
8 |
Insulation tape |
1strip |
enlarge diameter of fiber cable for easy fixing |
|
|
9 |
Fiber buffer tube |
|
hitched to fibers and fixed with FOST, managing buffer |
disposition according to need |
|
10 |
Metal hoop |
1 piece |
Used for wall mounting and pole hugging application. |
|
