Description
Features:
Red laser at 650nm
Pulsed and CW operation
Standard AAA alkaline batteries
Suitable for SM and MM fibers
Long battery life (up to 60 hours)
Drop resistant and dust-proof design of laser head
Meets CE standards including EMC, EMI, ROHS

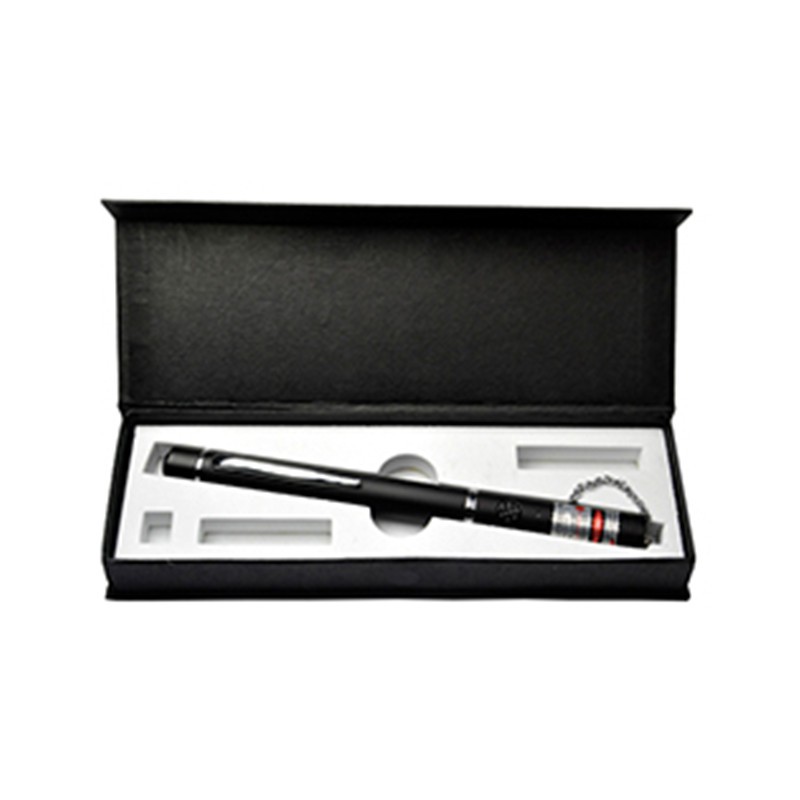

Luxurious by using DFB-LD as the emitting component, copper housing and gift packing box
Applications:
Maintenance in telecom and CATV
Test Lab of optical fibers
Fiber routing and continuity checking in optical networks
Specification:
|
Model |
QH61-5 |
QH61-10 |
QH61-20 |
QH61-30 |
|
Output Power |
>5mW |
>10mW |
>20mW |
>30mW |
|
Distance |
>8km |
>12km |
>16km |
>20km |
|
Wavelength |
650nm ± 10nm |
|||
|
Emitter type |
FP-LD |
|||
|
Operation Mode |
Pulsed (3Hz to 9Hz) and CW |
|||
|
Connector |

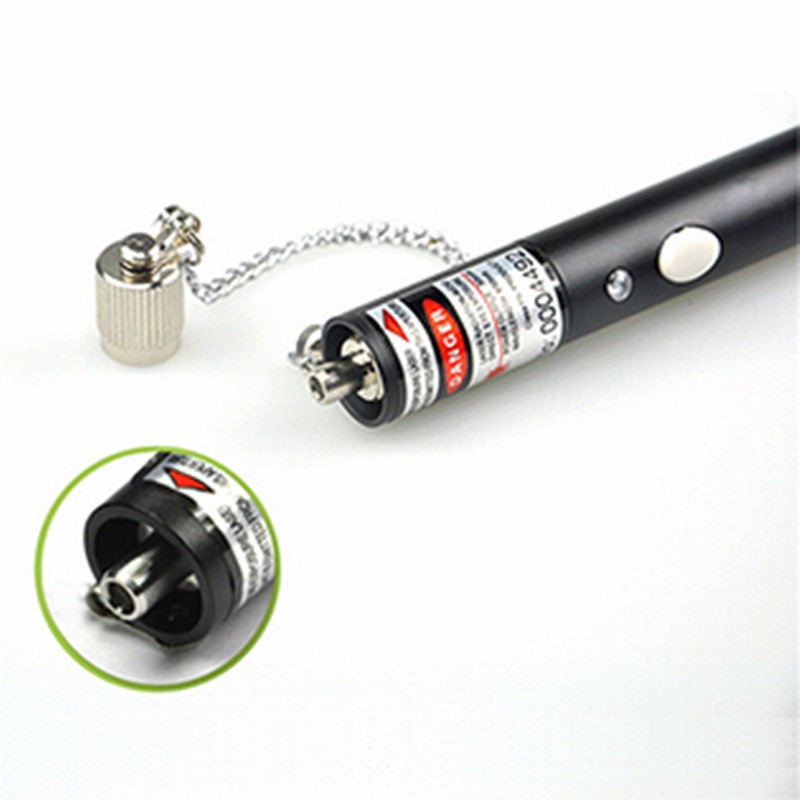

2.5mm universal adapter (SC/FC/ST/E2000, etc.) |
|||
|
Power supply |
2*AAA alkaline batteries |
|||
|
Size (L*D) |
167*13mm |
|||
|
Weight |
113g (without battery) |
|||
|
Standard Accessories: User manual, packing box |
||||
|
Optional Accessories: 1.25mm conversion adapter for LC connector |
||||
