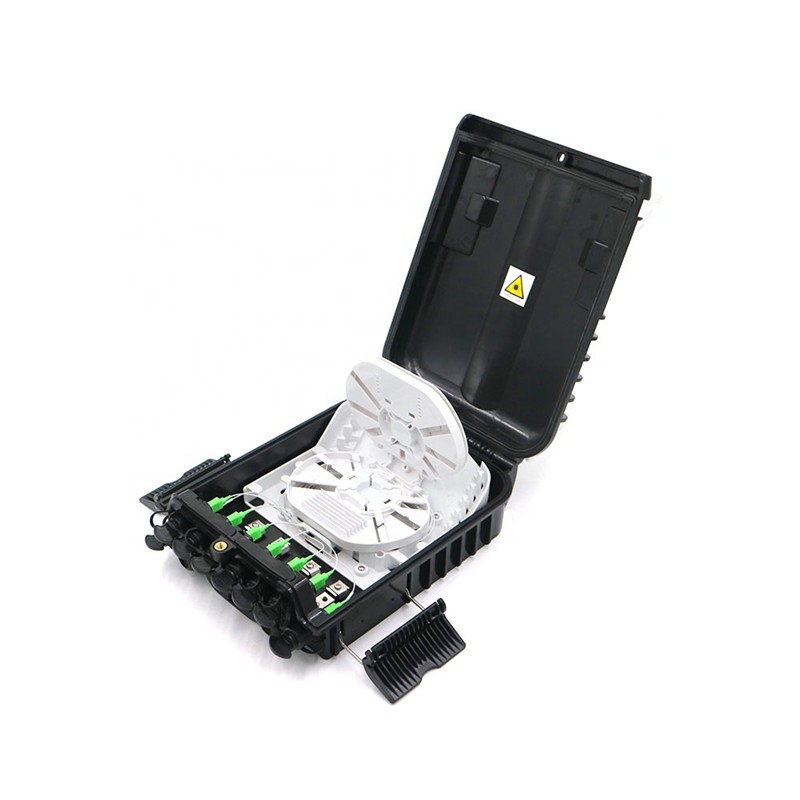

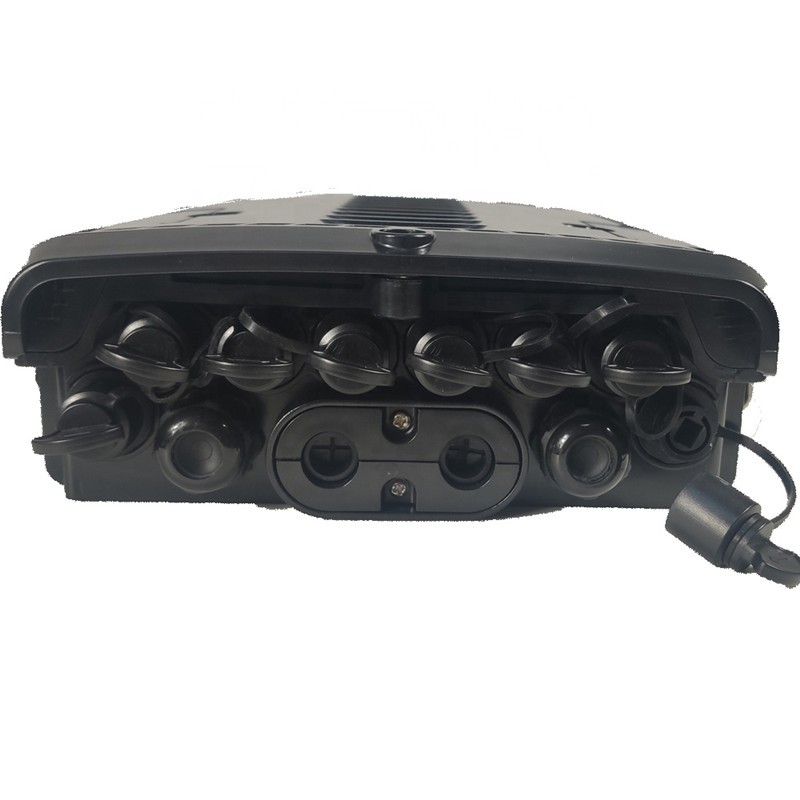

8 fiber terminal box

Description

Description
FAT-8C02 is the new generation of products with ability to adapt its internal configuration and type of cable entry / exit, according to the requirements of each project, maintaining a defined structure and its design organic. The box can fulfill its function as a termination, spliced or pre-connected.

The NAP Box has special features that transform it into a highly adaptable product, for both power and distribution networks. With a Modular structure and resistant to weather conditions, the box guarantees the storage, completion and distribution of long-term optical cables.

Features:
1. Dis-mountable adaptor panel;
2. Support midspan termination;
3. Easy operation and installation;

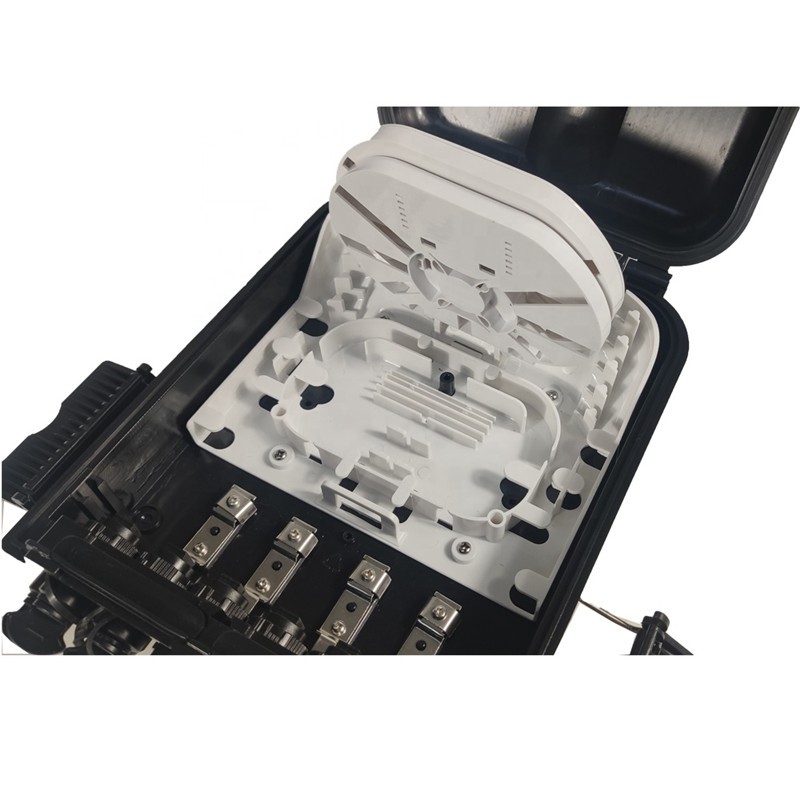

4. Rotatable and dis-mountable splice tray for easy splicing;
5. IP65 sealing;
6. Supporting Micro PLC Splitters;
7. Supporting various application by replacing components inside.

Functions:
* For fusion connectorization
* For connectorization with Mini Tube splitter
* For connectorization with LGX Modular splitter
* For pre-connected outputs

Applications:
* Wall mounting & pole mounting installation
* Suitable for 2*3mm Indoor FTTH Drop Cable and Outdoor Figure 8 FTTH Drop Cable
* 5mm diameter Drop Cable
