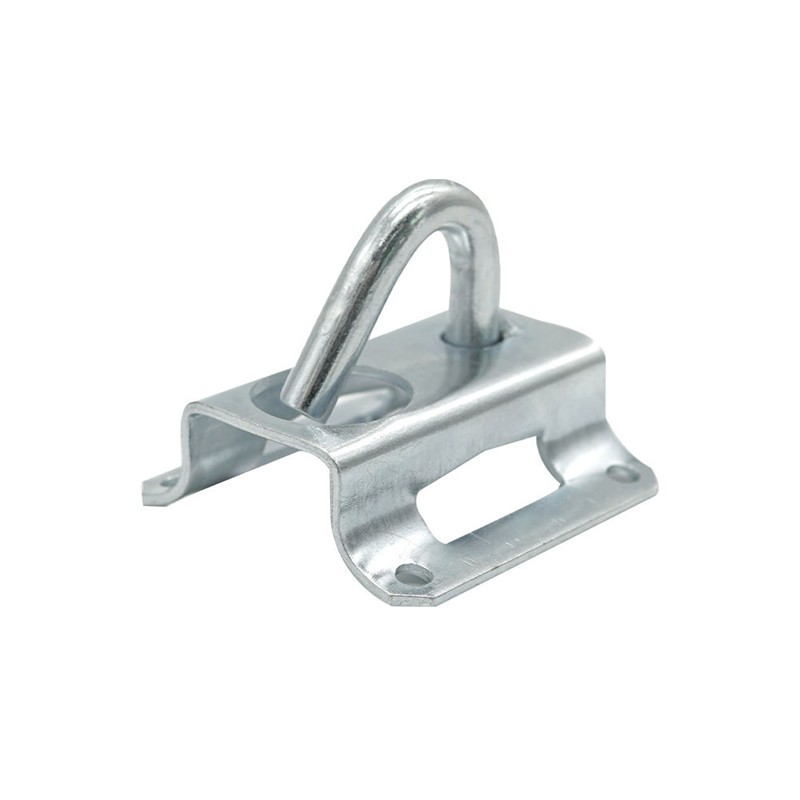

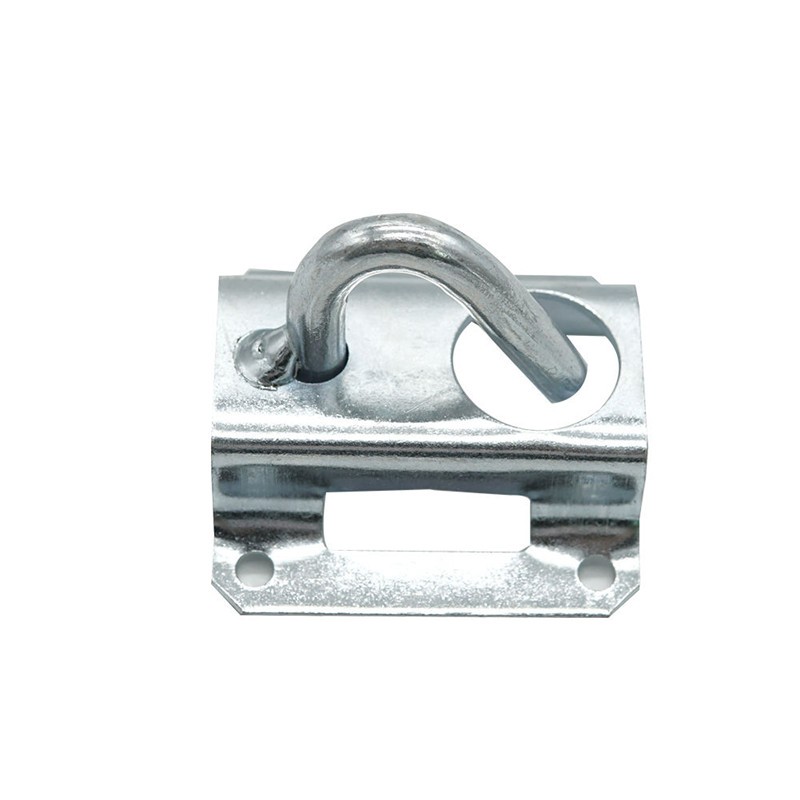

YK-01 FTTH Drop Wire Pole Bracket

Product Item：YK-01 FTTH Drop Wire Pole Bracket

Made of galvanized steel material

Good corrosion resistance and long-term usage

The cable line intersection angle less than 15°

Description

Description:

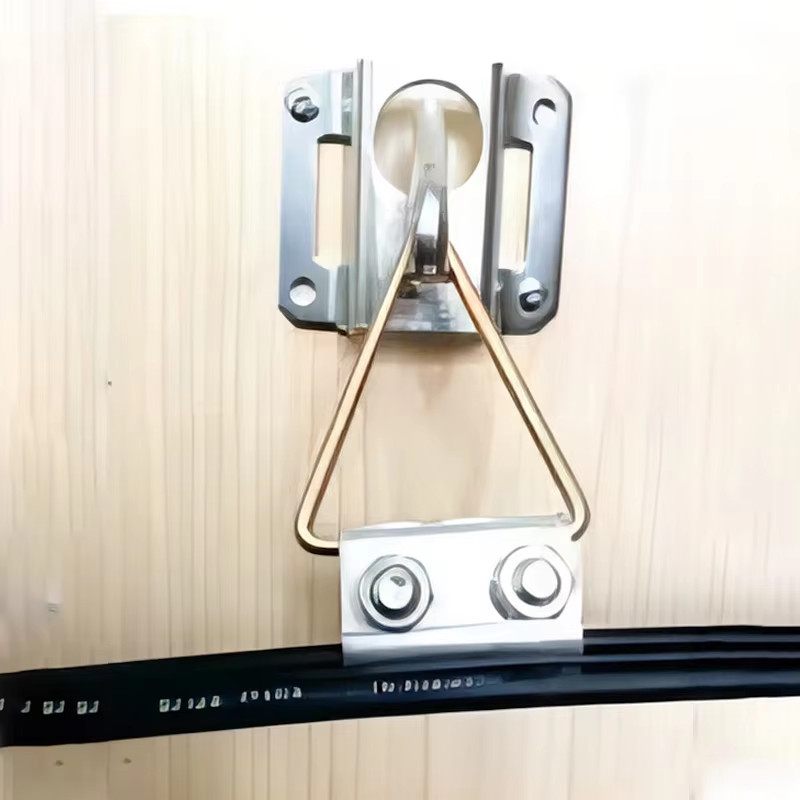

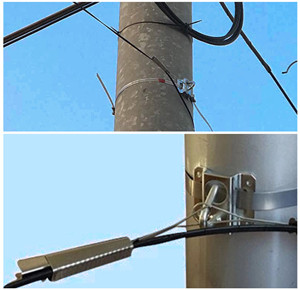

The FTTH pole bracket is made from galvanized steel or Carbon steel.it also called FTTH hook(pole bracket for FTTH) can be attached on wooden,metal,concrete poles or buildings by stainless steel strap or bolts.Galvanized materials guarantee long time of usage.Fixed by stainless steel band(20-10mm) or 4 bolts up to 4 mm diameter. Optical fiber fixation hook apply with tension

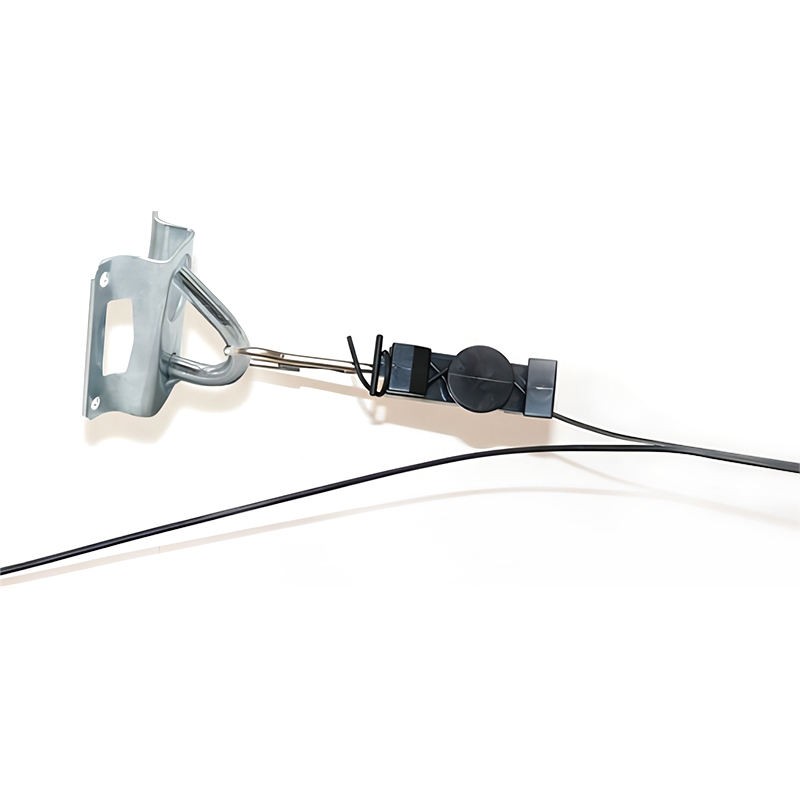

installing on dead end route. Fiber optic bracket allows withstand with small load with anchor clamp.Usually applied for anchoring FTTH cable,drop wire of different diameters and spans.

Features:
Easy and quick to install
Made of galvanized steel material
Good corrosion resistance and long-term usage
Good endurance capacity of high strength stress
Widely used in FTTH cable
The cable line intersection angle less than 15°

Specification：
