Description

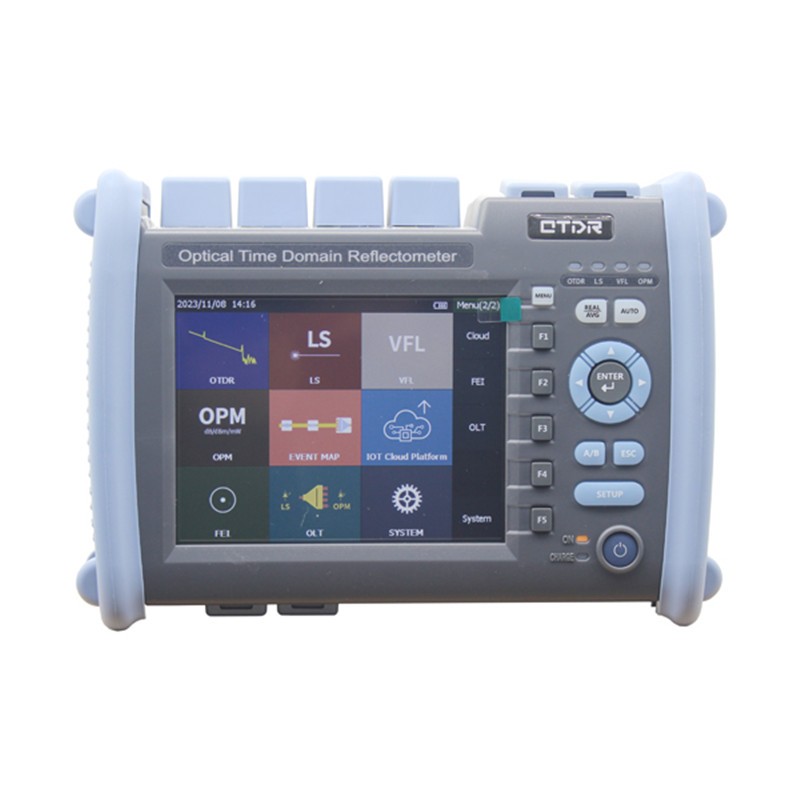

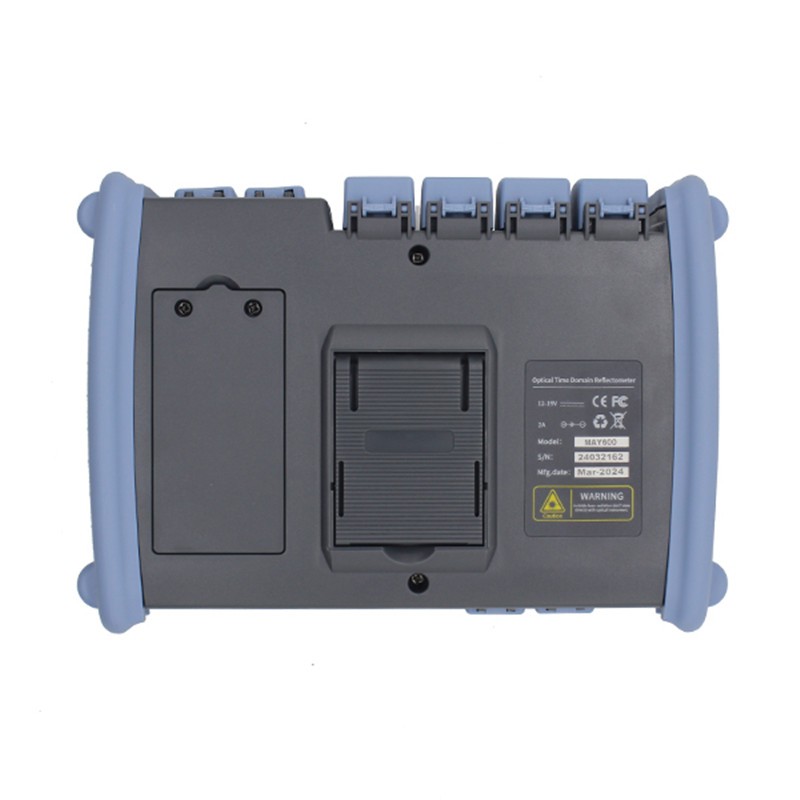

QH600 OTDR is a new generation of portable and intelligent measuring instrument for testing fiber optic communication system. It adopts 5.6 inch color touch screen, button/touch operation, internal integration of eight major functional modules, intelligent power-saving management, and 20 hours long standby, which help customers effectively solve the field testing and maintenance.
It is mainly used to measure the length, loss and connection quality of optical fibers and cables, and can be widely used in engineering construction, network maintenance and testing, emergency repair, and the development and production of optical fibers and cables.
The highest 45dB dynamic range can penetrate optical splitters easily for PON network testing.
The design concept of multi-functional integration, precision testing and convenient operation makes the field testing simple.
Features:
Integrated design, smart and rugged;
Shockproof, outdoor enhancement;

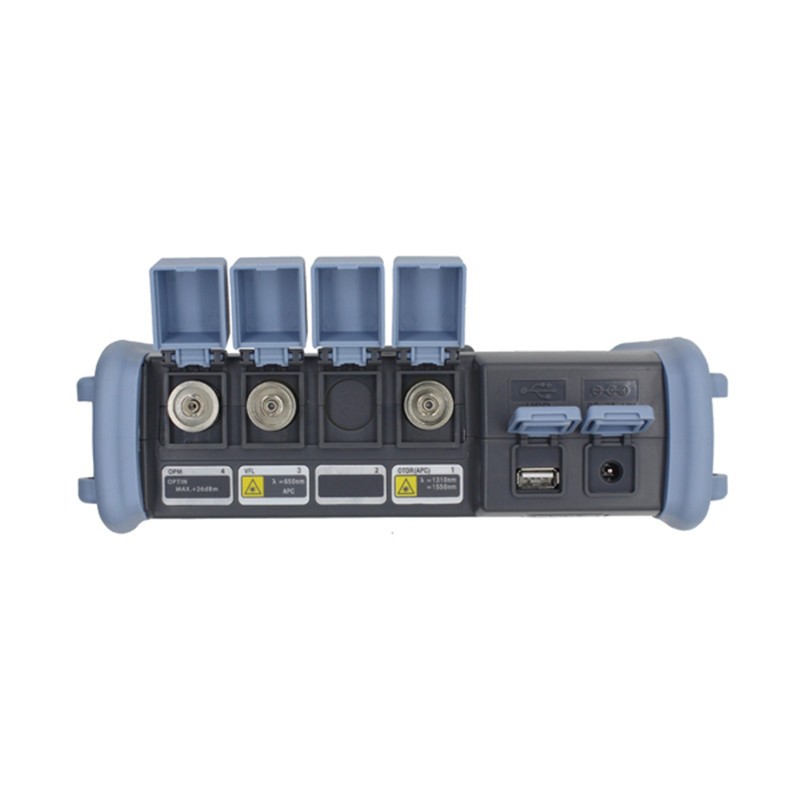

FC/SC/ST connectors interchangeable;
Automatic and manual test function;
Visual Fault Locator (VFL) function;
OTDR Viewer software for data analysis.
Applications:
FTTX testing with PON networks;
CATV network testing;
Access network testing;
LAN network testing;
Metro network testing;
Laband Factory testing;
FTTA troubleshooting.
Multi-functions:
1. OTDR
2. Optical Power Meter (OPM)
3. Optical Light Source (OLS)
4. Visual Fault Locator (VFL):Visual Fault Locator uses red laser of 650nm to locate broken fiber point and test fiber continuity.
5. Fiber Optic Microscope (FIM):Fiber Optic Microscope is used to check fiber optic connector endface. The inspection probe is sold seperately.
6. Event Map:Event Map is similar to EXFO’s iOLM function, which can display events in user-friendly icons.
7. IL Testing:OPM and OLS can be opened at the same time to test insertion loss.
8. Report Print:PC software helps print out OTDR test reports.
Specification:
1. OTDR
|
Model |
D32 |
D35 |
D38 |
D42 |
D45 |
MD28 |
MQ28 |
MQ29 |
|
Fiber Type |
SMF |
MMF |
SMF/MMF |
|||||
|
Wavelength |
1310/1550nm |
850/1300nm |
850/1300/1310/1550nm |
|||||
|
Dynamic Range ① |
32/30dB |
35/33dB |
38/36dB |
42/40dB |
45/43dB |
26/28dB |
26/28/35/33dB |
26/28/37/35dB |
|
Event Dead Zone② |
1m |
1m |
0.8m |
0.8m |
0.8m |
1m |
1m |
|
|
Attenuation Dead Zone |
6m |
6m |
6m |
6m |
6m |
6m |
6m |
|
|
Measurement Range |
0.5/1/2/4/8/16/32/64/128/256km |
|||||||
|
Measurement Pulse Width |
3/5/10/30/50/80/160/320/500/800/1000/3000/5000/8000/10000/20000ns |
|||||||
|
Ranging Accuracy |
±(0.75+Sampling interval+0.005%*Test distance) |
|||||||
|
Loss Precision |
±0.05dB/dB |
|||||||
|
Sampling Points |
Max. 256,000 points |
|||||||
|
Sampling Resolution |
0.05~16m |
|||||||
|
File Format |
SOR standard file format |
|||||||
|
Loss Analysis |
4-point method / 5-point method |
|||||||
|
Laser Safety Level |
Class II |
|||||||
|
Adapter |
FC (Interchangeable SC adapter) |
|||||||
|
Refresh Rate |
3Hz (Typ.) |
|||||||
|
Reflection Accuracy |
±3dB |
|||||||
|
Signal Detection |
Effective protection of APD |
|||||||
|
Language |
Chinese, English, Traditional Chinese, Russian, Portuguese, Spanish, Korean, Turkish (Select two languages) |
|||||||
Note:
①Testing temperature is 25°C±2°C, maximum pulse width, average time is more than 30s.
②Test conditions of Event Dead Zone are minimum range, minimum pulse width, reflection loss of optical fiber end surface (>45dB), typical value.
2. Optical Power Meter
|
Wavelength Range (±20nm) |
800~1700nm |
|
Calibrated Wavelength |
850/1300/1310/1490/1550/1625/1650nm |
|
Test Range |
Type A: -50~+26dBm (standard); |
|
Resolution |
0.01dB |
|
Uncertainty |
±5% |
|
Connector |
FC (SC interchangeable) |
3. Optical Light Source
|
Working Wavelength |
Same as OTDR output wavelength |
|
Output Power |
≥-5dBm |
|
Accuracy |
CW, ±0.5dB/15min (Test after 15 minutes of boot-up preheating) |
|
Connector |
FC (SC interchangeable) |
4. Visual Fault Locator
|
Wavelength (±20nm) |
650nm |
|
Power |
≥2mW |
|
Mode |
CW/1Hz/2Hz |
|
Connector |
FC (SC interchangeable) |
5. Fiber Optic Microscope (FIM) (Optional):
|
Model |
QH98-P |
|
Magnification |
400X |
|
Resolution |
0.5µm |
|
Focus Control |
manual |
|
Dimension |
180×40×30mm |
|
Weight |
200g |
|
USB |
1.1/2.0 |
|
Adapter |
PC25F (For SC/PC & FC/PC adapter) |
QH98-P Fiber Optic Microscope Probe Standard Accessories
Standard Tips:
PC25F Tip (For SC/PC & FC/PC adapter) PC125F Tip (For LC/PC adapter)
PC25M Tip (For 2.5mm connector, SC/PC, FC/PC, ST/PC) PC125M Tip (For 1.25mm connector, LC/PC)
Optional Tips for Fiber Optic Microscope (FIM):
|
Name |
Quantity |
|
25-A-M Tip (For 2.5mm APC connector, SC/APC, FC/APC, ST/APC) |
1pc |
|
125-A-M Tip (For 1.25mm APC connector, LC/APC) |
1pc |
|
SC-APC-F Tip (For SC/APC adaptor) |
1pc |
|
FC-APC-F Tip (For FC/APC adaptor) |
1pc |
|
LC-APC-F Tip (For LC/APC adaptor) |
1pc |
Optional Tips:

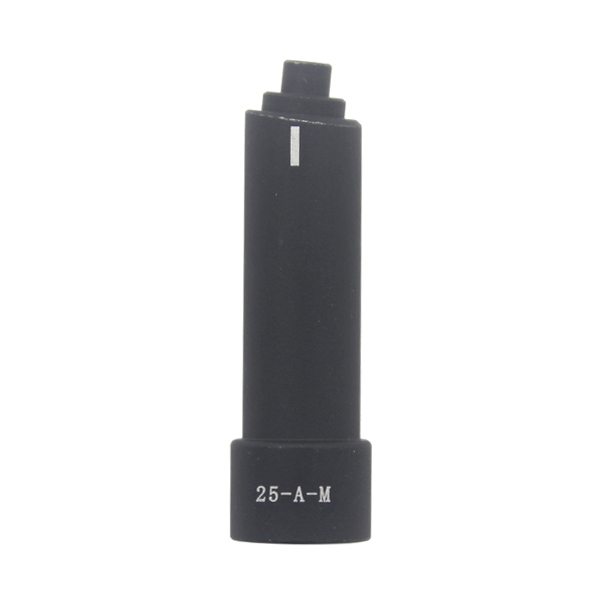

25-A-M Tip (For 2.5mm APC connector, SC/APC, FC/APC, ST/APC)
Other Specification:
|
Display |
5.6 inch color LCD with touch screen |
|
Power Supply |
AC/DC adapter: AC: 100~240V, 50/60Hz, 0.6A; Lithium battery: 7.4V 5200mAh |
|
Battery Working Hours |
≥10h |
|
Communication |
USB, mini USB, 10/100M Ethernet |
|
Data Storage |
Internal: 100M (3,000 curves); External: 4G |
|
Weight |
1.2kg |
|
Size |
227*160*70mm |
|
Operating Temperature |
-10 ~ +50°C |
|
Storage Temperature |
-40 ~ +70°C |
|
Relative Humidity |
<95% Non-condensation |
Accessories:
|
Item |
Name |
Quantity |
|
1 |
OTDR with FC adapters |
1pc |
|
2 |
AC/DC power adapter |
1pc |
|
3 |
Wrist Strap |
1pc |
|
4 |
U disk (including simulation analysis software) |
1pc |
|
5 |
Touch pen |
1pc |
|
6 |
Data line |
1pc |
|
7 |
OTDR SC adapter |
1pc |
|
8 |
OPM SC adapter |
1pc |
|
9 |
User manual |
1pc |
|
10 |
Calibration Certificate |
1pc |
|
11 |
Carrying bag |
1pc |
Optional Accessories:
|
Item |
Name |
Quantity |
|
1 |
SC Adapter for VFL Port |
1pc |
|
2 |
LC Adapter for OTDR Port, VFL Port and OPM Port |
