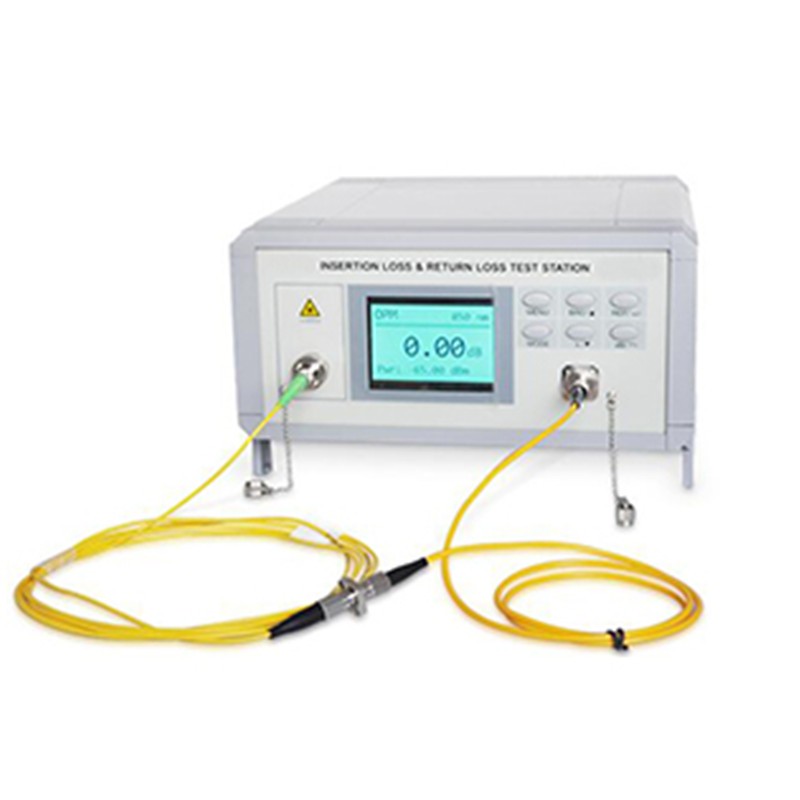

QH1000 Bench-top Insertion and Return Loss Testing Meter

Product Item：QH1000 Bench-top Insertion and Return Loss Testing

Inbuilt stable laser source

Synchronous dual wavelength IL & RL testing

Large color screen display

Threshold setting, display unqualified data in red

Description

Description:
QH1000 Bench-top Insertion/Return Loss Testing Meter provides a high reliable and stable performance. It is a multi-functional optical testing meter which is integrated with stable laser source, optical power meter, insertion loss tester and return loss tester.
This testing meter is suitable for optical communication project as well as the research and manufacturing of optical active and passive components.
Features:
Inbuilt stable laser source
Large color screen display
Set testing threshold by menu
Synchronous dual wavelength IL & RL testing
Various fiber optic interfaces conversion
Threshold setting, display unqualified data in red
Specification:
Return Loss:

Working Wavelength	SM 1310/1550nm±10nm	MM 850/1300nm±10nm
Applicable Fiber	9/125um	50/125um or 62.5/125um
Connector Type	FC/APC	FC/APC
Output Power	≥-3dBm	≥-10dBm
Output Stability	±0.005 (15min@25°C)	±0.01 (15min@25°C)
Detecting Range	0~75dB	0~55dB
Calibration Wavelength	1310/1550nm	850/1300nm
Display Resolution	0.01dBm/dB
Testing Accuracy	±0.3 (0~65dB)	±0.5 (0~45dB)

Insertion Loss:

Detector Type	InGaAs
Detector Size	2.0mm
Wavelength Range	800~1700nm
Calibration Wavelength	850/1300/1310/1550nm
Testing Range	+3~-75dBm
Linearity	±0.04 (+3~-50dBm)
Testing Mode	Linearity/Non-linearity

Other Parameters:

Display	Color LCD
Communication Port	USB 2.0 / RS232 / WiFi Module (optional)
Power	90~260VAC
Relative Humidity	0~85% (non-condensing)
Dimension	280×260×120nm
Weight	3.15kg
Working Temperature	0~40°C
Storage Temperature	-25~+70°C
