Description
Features:
Low insertion loss and high return loss;
Ceramic ferrule, high quality cable protection sleeve;
Good repeatability and good Intercalation Performance;
Good temperature stability, -40°C~+85°C;
Strong tensile properties, not less than 90N.
Application:
FTTH (Fiber to The Home);
LAN (Local Area Network);
FOS (fiber optic sensor);
Fiber Optic Communication System;
Optical fiber connected and transmitting equipment.
Specification
|
Product |

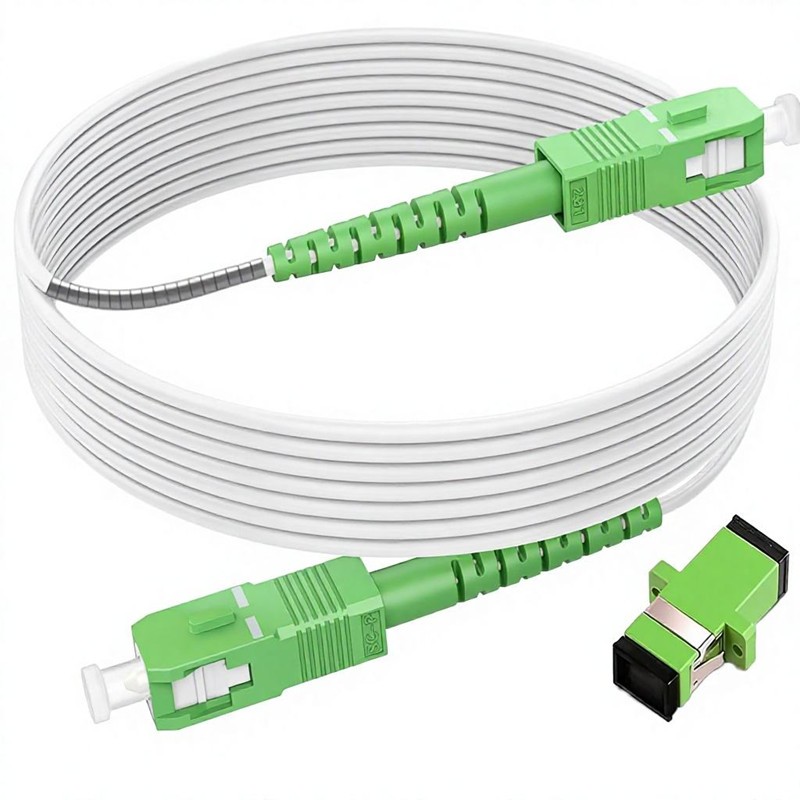

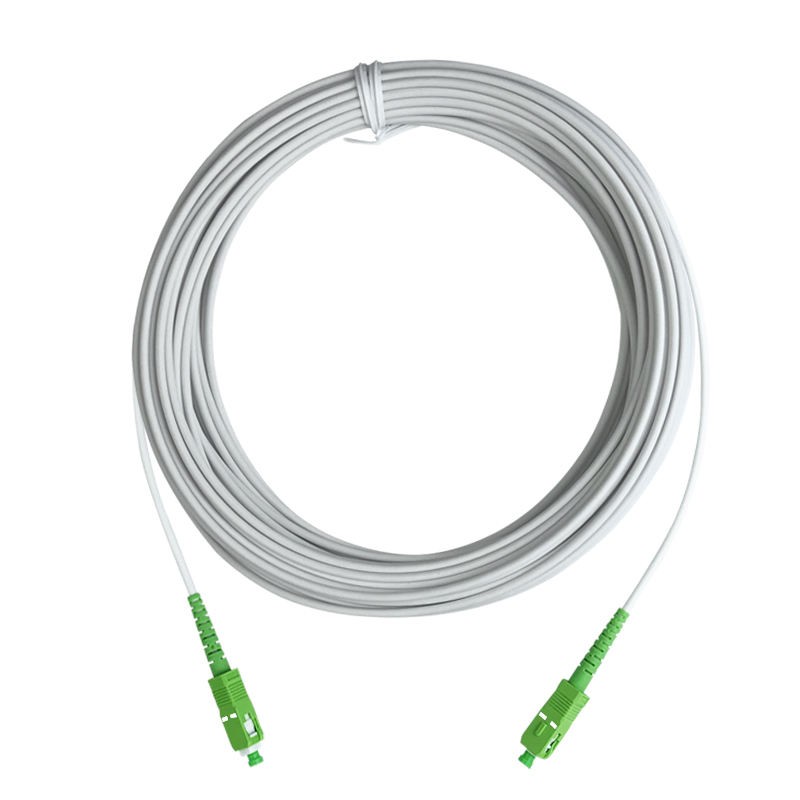

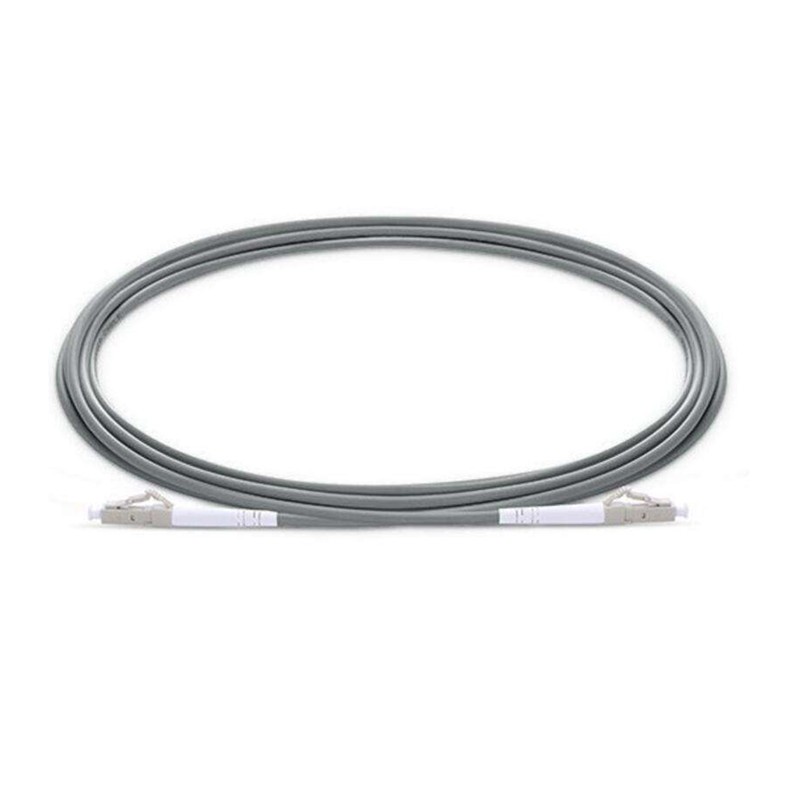

Armored Fiber Patch Cord |
|
Pre-Terminated Connector |
SC / LC / FC |
|
Polished |
UPC or APC |
|
Fiber Count |
1 core or other for options |
|
Fiber Mode |
SM or MM |
|
Jacket Color |
Blue, Black,White |
|
Breakout OD |
2.0mm, 3.0mm，4.0mm |
|
Insertion Loss |
< 0.3 DB |
|
Return Loss |
>50db |
|
Jacket Materials |
PVC LSZH TPU |
|
Operating Temperature |
-40~75°C |
