Description

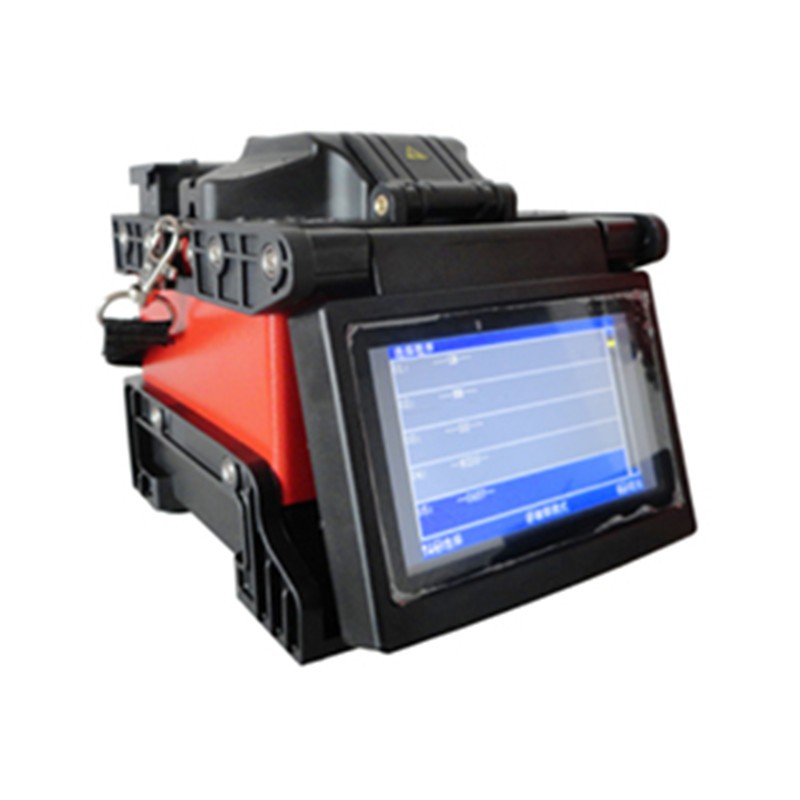

FS700 Single Fiber Fusion Splicer Features:
Compact & Light weight
Fully Automatic Operation
5000m altitude ensures Splice Quality
SYSTEM TEST ensures the best working condition
Color LCD monitor
Pause function, convenient for scientific research
Store 8,000 groups of splice results
USB& DC interface
High battery capacity, up to 200 times of continuous splice and heat
Specification:
|
Applicable Fibers |
SM, MM, DS, NZDS (G655), EDF, Bending Loss Insensitive fiber (G657), Pigtail, Drop cable and connector |
|
Fiber Cleaver Length |
8~22mm |
|
Splice Loss |
0.02dB (SM), 0.01dB (MM), 0.05dB (DS), 0.04dB (NZDS) |
|
Return Loss |
60dB |
|
Tension Test |
2.0N |
|
Protection Sleeve Length |
20mm, 40mm, 60mm and more |
|
Splicing Program |
15 groups of preset programs, 1 group of manual setting |
|
Language |
English, Chinese, Korean, Russian, Spanish, Portuguese, German, French |
|
Environment Conditions |
-25～+50℃ (operation temperature), 0～95%RH (humidity), 0～5000m (altitude) |
|
Storage Environment |
-40～+80℃ (temperature) , 0～95％RH (humidity) |
|
Power Supply |
AC adaptor: 85～260V input voltage Internal battery: 12V, 6Ah, up to 120 times of continuous splice and heat |
|
Dimension |
142mm (D)*122mm (W)*138mm (H) |
|
Weight |
1.95KG (Include battery) |

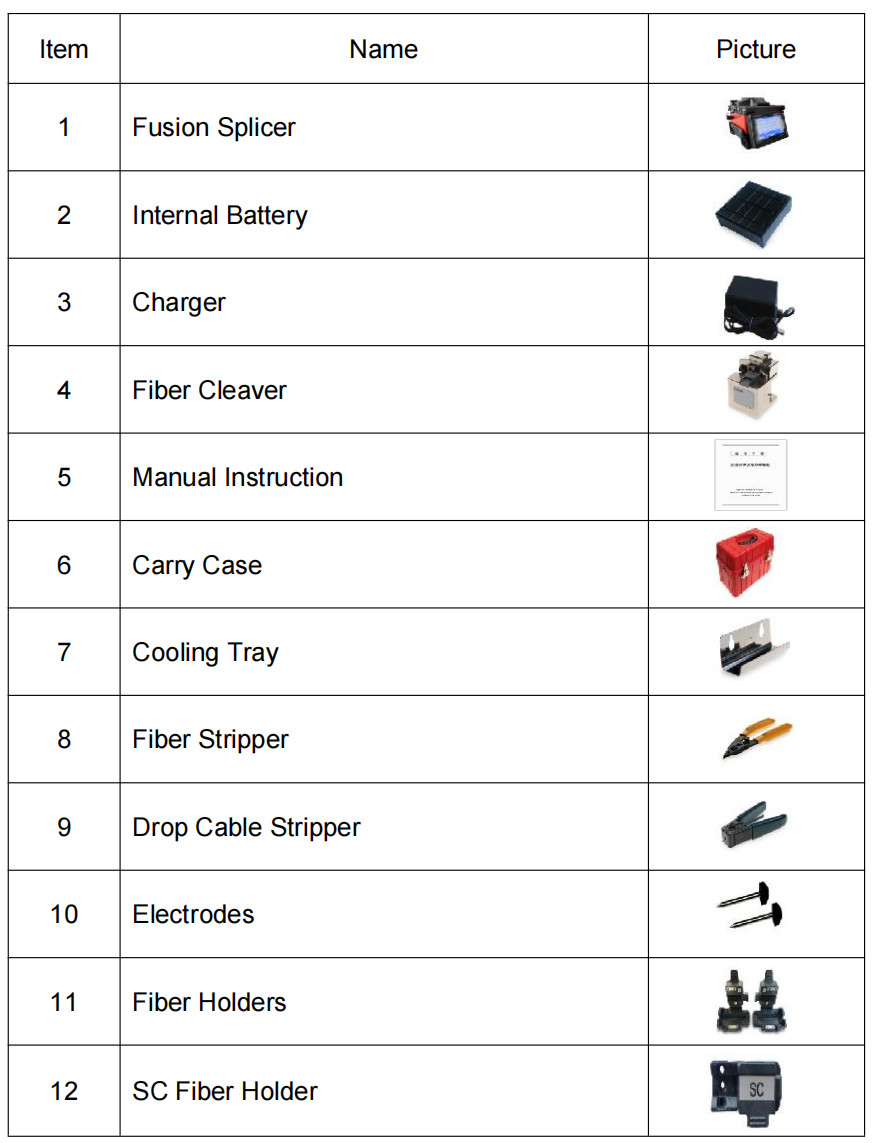

Standard Package:

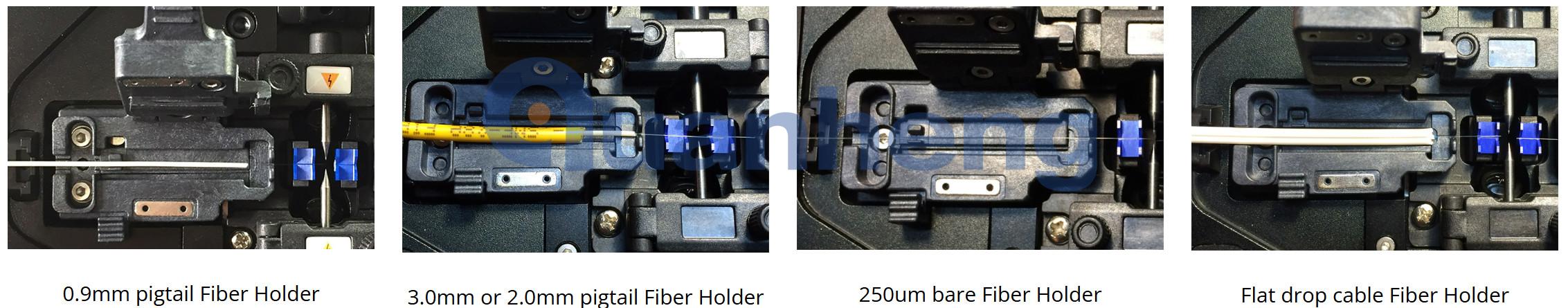

Fiber Holders:
Application:

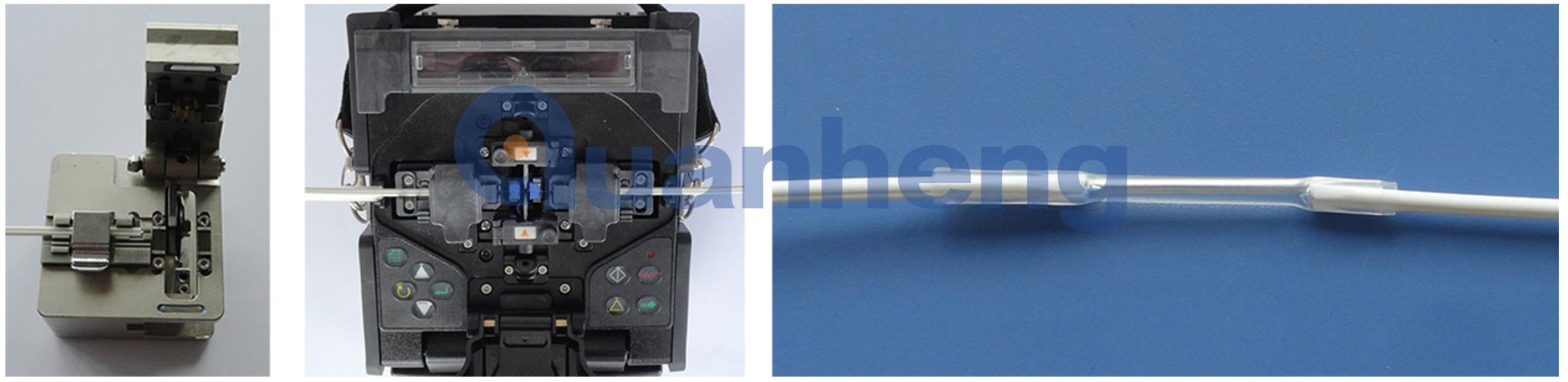

1. Flat drop cables splicing

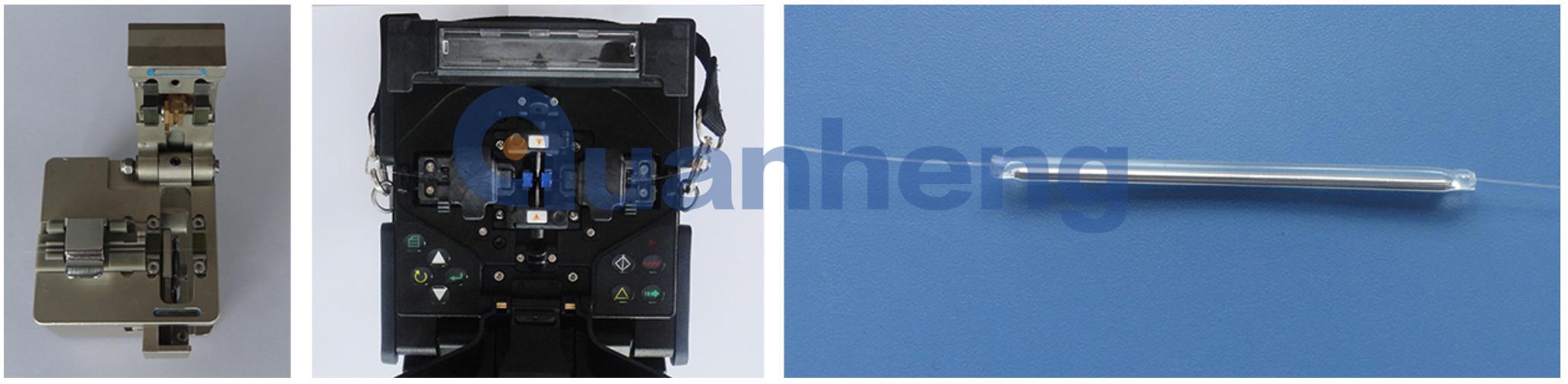

2. 250um bare fibers splicing

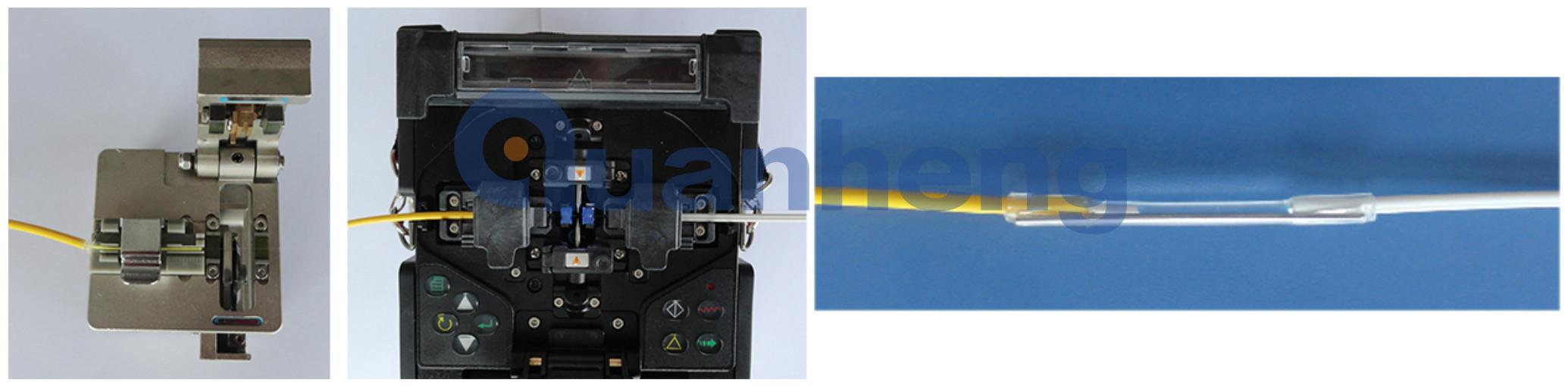

3. 3.0mm pigtail and 250um bare fiber splicing
4. Flat drop cable and 3.0mm pigtail splicing

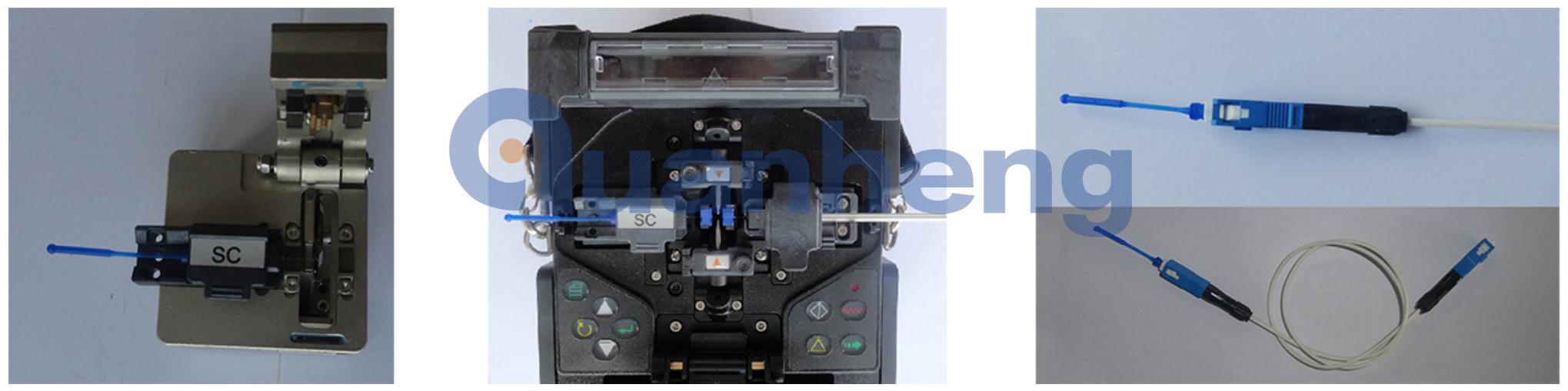

5. Splice-on connector splicing
