Description
Features:
It can carry out synchronous measurementof voice, data and video signal in BPON/EPON/GPON;
Providing simultaneous measurement for all three wavelengths inthe fiber (1310nm, 1490nm, and 1550nm);
Used in burst mode measurement of 1310nm upstream;
Pass/Fail thresholds for 1310/1490/1550nm can be set seperately;
User calibration for 1310/1490/1550nm respectively;
High definition TFT true color screen;
Auto-off function (close, 10min, 30min and 1 hour) and backlight (25%, 50%, 75% and 100%) can be set;
1,000 measurement items can be saved in PON power meter for data review.
Multi-functions:
1. PON Power Meter
2. Visual Fault Locator (VFL)
Visual Fault Locator uses red laser of 650nm to locate broken fiber point and test fiber continuity.
3. LAN Length:It can measure the length of RJ45 cable.
4. LAN Sequene:It can check wire map of RJ45 cable.
5. LAN Tracker:It can trace and locate the RJ45 cable.
Specification:
1. PON Power Meter
|
Wavelength |
1310nm |
1490nm |
1550nm |
|
Pass Zone |
1260~1360nm |
1475~1505nm |
1540~1560nm |
|
Isolation @ 1310nm |
/ |
>40dB |
>40dB |
|
Isolation @ 1490nm |
>40dB |
/ |
>40dB |
|
Isolation @ 1550nm |
>40dB |
>40dB |
/ |
|
Measurement Range |
-35dBm~+10dBm |
-40dBm~+12dBm |
-40dBm~+25dBm |
|
Uncertainty |
≤0.5dB |
||
|
Insertion Loss |
≤1.5dB |
||
|
Detetor Type |
InGaAs |
||
|
Display Resolution |
0.01dB |
||
|
Fiber Type |
SM 9/125um |
||
|
Adapter |
FC/SC |
||
2. Visual Fault Locator
|
Wavelength (±20nm) |
650nm |
|
Power |
≥10mW |
|
Mode |
CW/1Hz/2Hz |
|
Connector |
Universal 2.5mm (FC/SC/ST) |
3. LAN Length
|
Test Range |
300m |
4. LAN Sequence
|
Test Range |
300m |
5. LAN Tracker
|
Test Range |
300m |
Other Specification:
|
Display |
3.5 inch color LCD |
|
Power Supply |
AC/DC adapter: AC: 100~240V, 5V, 2A; Lithium battery: 3.7V 4000mAh |
|
Battery Standby Life |
≥20h |
|
Battery Working Hours |
≥12h |
|
Data Storage |
1,000 |
|
Weight |
0.35kg |
|
Size |
173*82*37mm |
|
Operating Temperature |
-10 ~ +50°C |
|
Storage Temperature |
-40 ~ +70°C |
|
Relative Humidity |
0~95% non-condensing |
Standard Accessories:
|
Item |
Name |
Quantity |
|
1 |

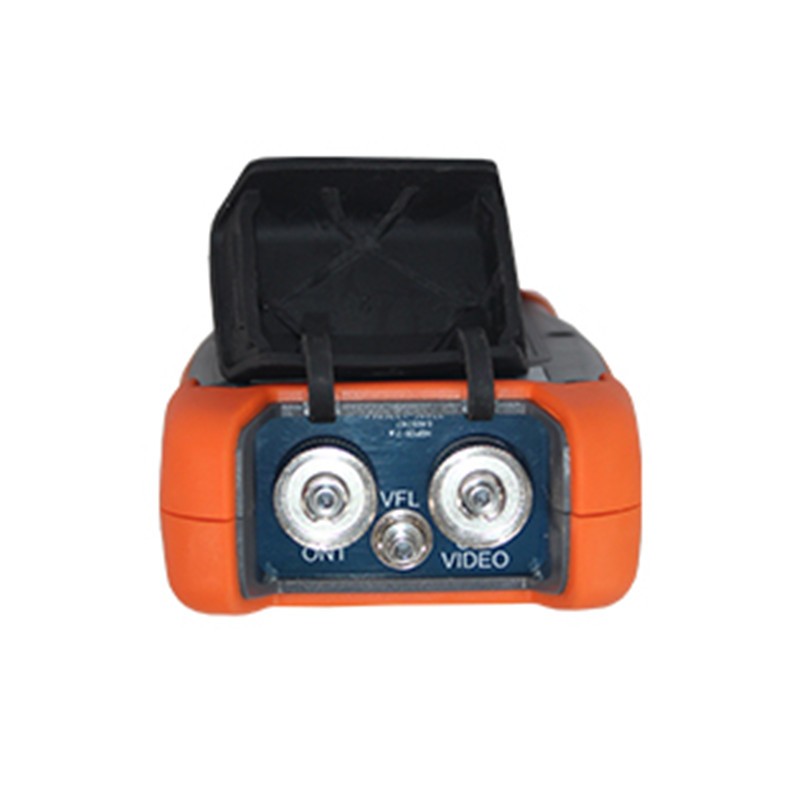

PON Power Meter with SC Adapters for OLT/VIDEO and ONT |
1pc |
|
2 |
FC Adapters |
2pcs |
|
3 |
AC/DC power adapter |
1pc |
|
4 |
USB cable |
1pc |
|
5 |
User manual |
1pc |
|
6 |
Network Cable Tracker |
1pc |
|
7 |
Soft bag |
1pc |
Ordering Information:
Model: QH55X-X
|
Model |
X: Polish Type |
|
QH55 |
U: UPC |
|
A: APC |
