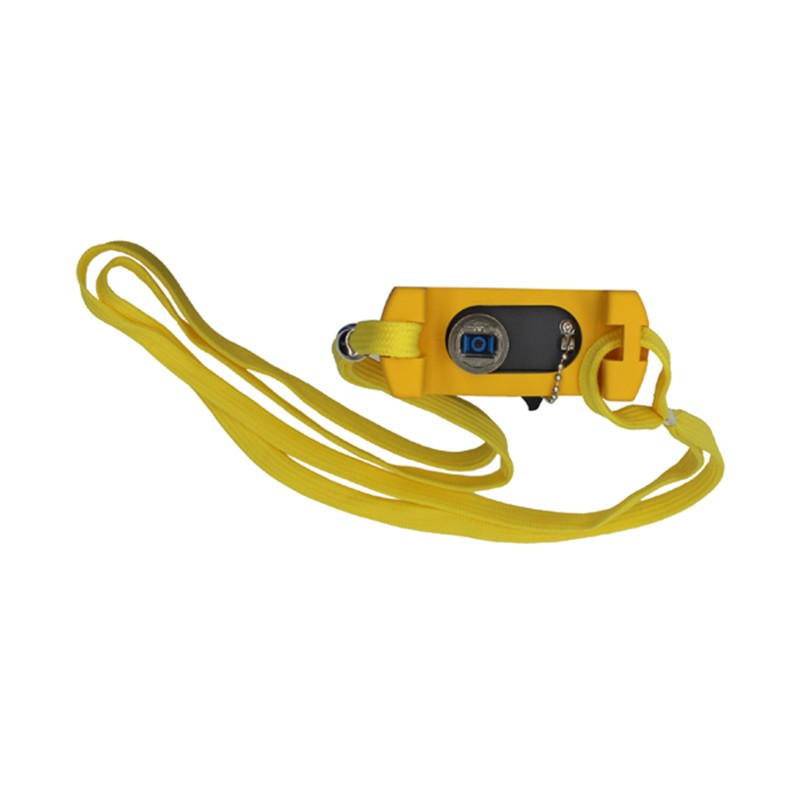

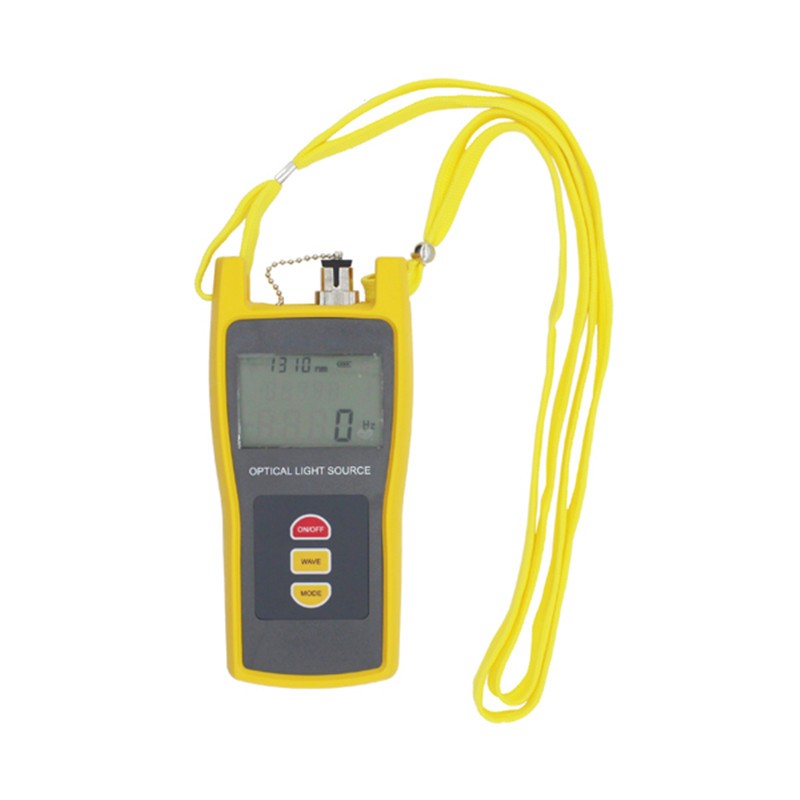

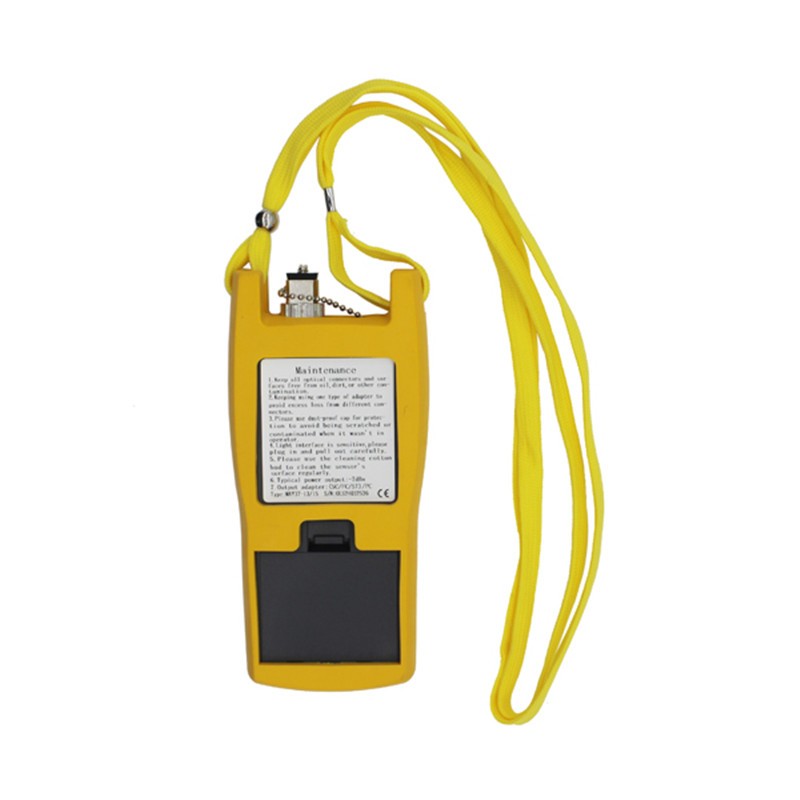

QH37-3 Series – Interchangeable FC, SC, ST Adapters:
QH37 Series Optical Light Source can provide 1 to 4 wavelengths output according to the specific requirements including 1310/1550nm wavelengths for the single mode fiber and 850/1300nm wavelengths for the multimode fiber or other wavelengths according to customer needs. Together with QH17 Series Optical Power Meter, it acts as a perfect solution for the fiber optic network.
Features:
Support backlight
High stability of the output power
Stable output wavelength
Compact size and decent appearance
Large LCD, easy operation
Applications:
Telecommunication networks
CATV networks
Cabling systems engineering
Research and education
Specification:
|
Output Wavelength |
1310/1550nm |
850/1300nm |
1310/1490/1550nm |
850/1300/1310/1550nm |
|
Fiber Type |
SM |
MM |
SM |
SM & MM |
|
Emitter Type |
FP-LD |
|||
|
Output Power |
≥-7dBm |
|||
|
Spectral Width |
≤10nm |
|||
|
Output Stability |
Short term (15 min): ±0.05dB@1310/1550nm, ±0.1dB@850/1300nm, ±0.1dB@1490nm |
|||
|
Long term (8 hours): ±0.1dB@1310/1550nm, ±0.2dB@850/1300nm, ±0.2dB@1490nm |
||||
|
Output Frequency(Hz) |
CW, 270Hz, 1kHz, 2kHz |
|||
|
Continuous Working Time |
45h |
|||
|
Connector |
Interchangeable FC, SC, ST |
|||
|
Power supply |
3*AA 1.5V dry alkaline batteries |
|||
|
Dimension |
175*82*33mm |
|||
|
Net Weight |
245g |
|||
|
Operating Temperature |
-10 to +60°C |
|||
|
Storage Temperature |
-25 to +70°C |
|||
|
Relative Humidity |
0~95% (non-condensing) |
|||

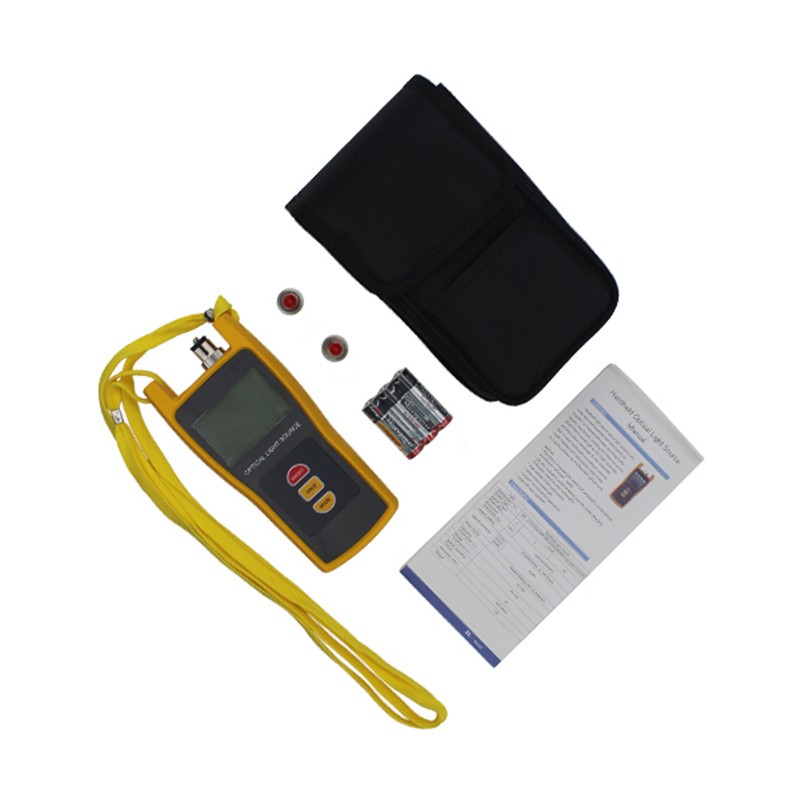

Standard Accessory:
1. QH37-3 for 1310/1550nm or 850/1300nm with SC Adapter Attached:
|
Item |
Name |
Quantity |
|
1 |
Optical Light Source with SC Adapter and Belt |
1pc |
|
2 |
User Manual |
1pc |
|
3 |
FC Adapter |
1pc |
|
4 |
ST Adapter |
1pc |
|
5 |
AA Dry Battery |
3pcs |
|
6 |
Soft Bag |
1pc |
2. QH37-3 for 1310/1550nm or 850/1300nm with FC Adapter Attached:
|
Item |
Name |
Quantity |
|
1 |
Optical Light Source with FC Adapter and Belt |
1pc |
|
2 |
User Manual |
1pc |
|
3 |
SC Adapter |
1pc |
|
4 |
ST Adapter |
1pc |
|
5 |
AA Dry Battery |
3pcs |
|
6 |
Soft Bag |
1pc |
3. QH37-1 for 1310/1550nm or 850/1300nm with FC Adapter Attached:
|
Item |
Name |
Quantity |
|
1 |
Optical Light Source with FC Adapter and Belt |
1pc |
|
2 |
User Manual |
1pc |
|
3 |
AA Dry Battery |
3pcs |
|
4 |
Soft Bag |
1pc |
Optional Accessory:
|
Item |
Name |
Quantity |
|
1 |
Male FC to female LC adapter for LC connector |
1pc |
Ordering Information:
Model: QH37X-X-X
|
Model |
X: Output Wavelength |
X: Interface |
X: Optical Port |
|
QH37 |
S: 1310/1550nm |
None: UPC (default) |
3: Interchangeable FC, SC, ST Adapters |
|
M: 850/1300nm |
A: APC |
1: FC Adapter |
|
|
T: 1310/1490/1550nm |
|
|
|
|
Q: 850/1300/1310/1550nm |
|
|
Note: Optical port for 850/1300nm is UPC interface.
