Description
Feature:
Both linnear (mW) and non-linear (dBm);
User calibration;
Wavelength memory function.
Specification:
|
Model |
QH15A |
QH15B |
|
Measuring Range |
-70 to +10dBm |
-50 to +26dBm |
|
Calibrated Wavelength |
850/980/1300/1310/1490/1550/1625/1650nm |
|
|
Detector Type |
InGaAs |
|
|
Resolution |
Linear display: 0.1%, logarithmic display:0.01dBm |
|
|
Linearity |
±5% |
|
|
Automatic Shutoff Time |
10min |
|
|
Continuous Working Time |
12h |
|
|
Connector |
Interchangeable FC, SC, ST |
|
|
Tone Detection |
270, 330, 1k, 2kHz |
|
|
Power supply |
3*AA dry batteries or Rechargeable Lithium battery (1020mAh) |
|
|
Backlight |
Yes |
|
|
Dimension |
186*100*50mm |
|
|
Net Weight |
150g |
|
|
Operating Temperature |
-10 to +50℃ |
|
|
Storage Temperature |
-40 to +70℃ |
|
|
Relative Humidity |
0~95% (non-condensing) |
|
Optical Light Source:
|
Wavelength |
850/1300±20nm |
1310/1550±20nm |
|
Emitter Type |
FP-LD |
|
|
Output Power |
≥-5dBm |
|
|
Output Stability |
±0.02dB/8h |
|
|
Output Frequency |
CW, 270, 1k, 2kHz |
|
|
Power Regulation |
0~6dB, 1dB step |
|
|
Connector |
FC/PC |
|
Standard Accessory:
|
Item |
Name |
Quantity |
|
1 |

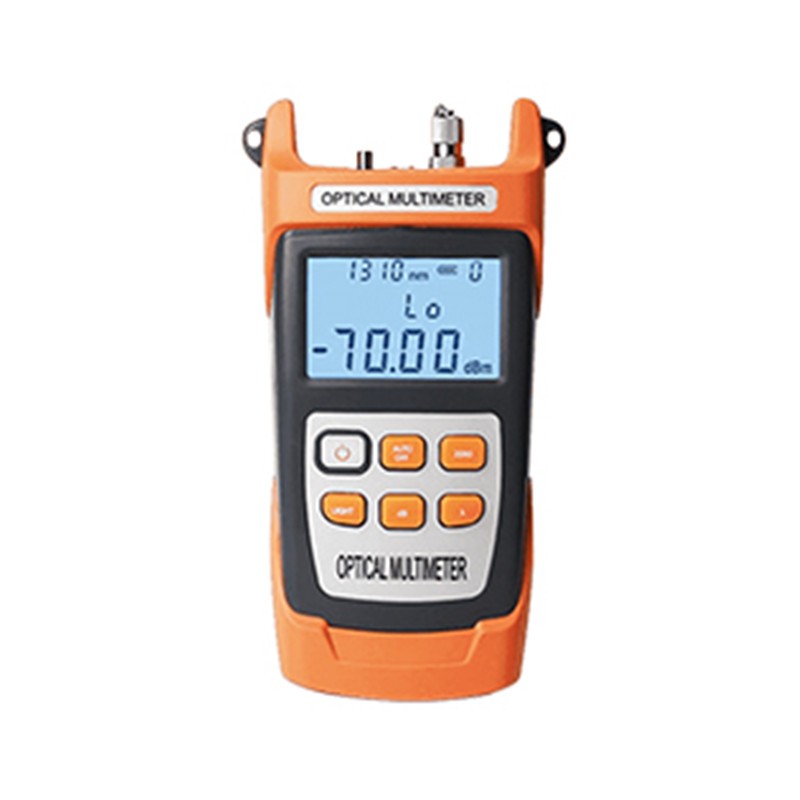

Optical Multimeter with FC for OPM port and FC for OLS port |
1pc |
|
2 |
User Manual |
1pc |
|
3 |
AA Dry Batteries or 1020mAh Lithium Battery |
3pcs or 1pc |
|
4 |
Data Line |
1pc for Lithium Battery only |
|
5 |
SC Adapter for OPM port |
1pc |
|
6 |
SC Adapter for OLS port |
1pc |
|
7 |
Soft Bag |
1pc |
Ordering Information:
Model: QH15X-X-X-X
|
Model |
X: OPM Range |
X: OLS |
X: Battery |
X: OLS Interface |
|
QH15 |
A: -70~+10dBm |
S: 1310/1550nm |
D: Dry Battery |
None: UPC (default) |
|
B: -50~+26dBm |
M: 850/1300nm |
L: Lithium Battery |
A: APC |
|
|
|
T: 850/1310/1550nm |
|
|
|
|
|
Q: 850/1300/1310/1550nm |
|
|
