Description

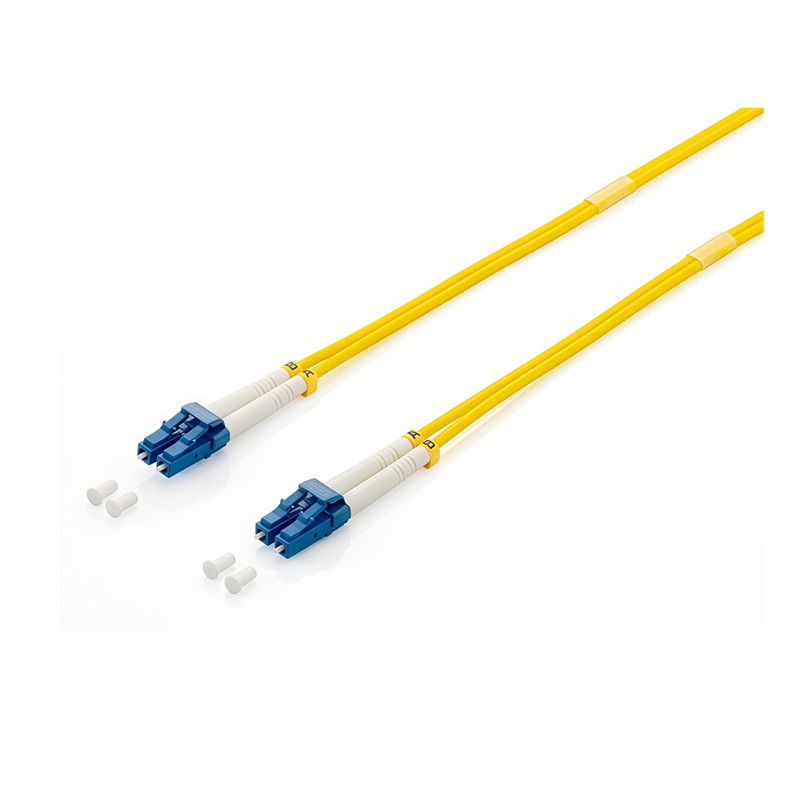

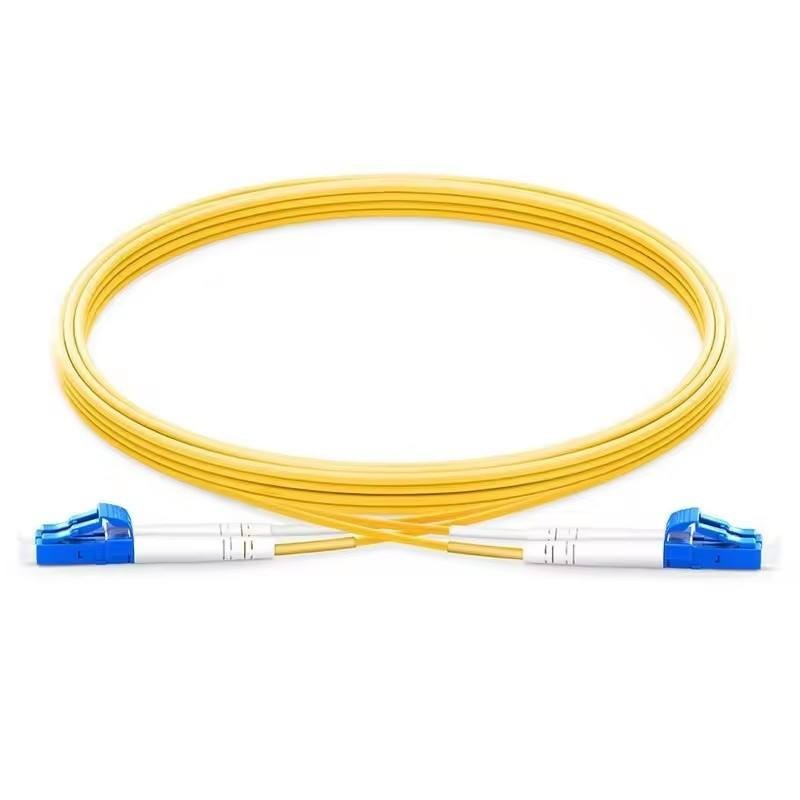

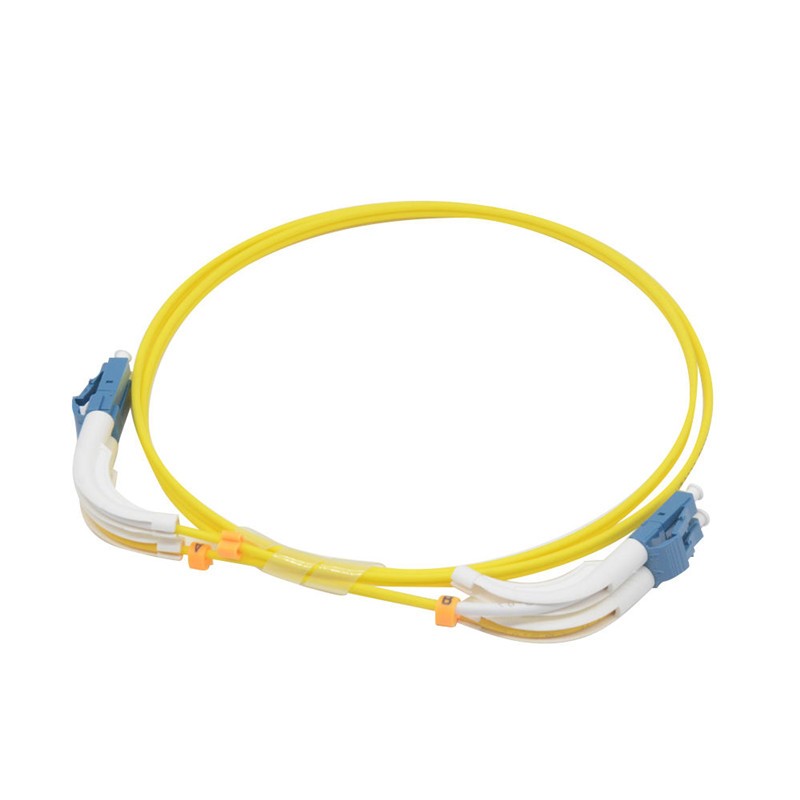

Fiber Optic Patch Cord
LC / SC / FC / MU Fiber Optic Patch Cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment. Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box.
Application
1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical
Features
1.Low insertion loss and back reflection loss
2.Excellent mechanical endurance
3.Good in repeatability
4.Good in exchange
Specification
|
Mode |
Single mode |
Multimode |
|
|
Polish |
UPC |
APC |
PC |
|
Insertion Loss |
≤0.30dB |
≤0.20dB |
≤0.20dB |
|
Return Loss |
≥50dB |
≥60dB |
≥30dB |
|
Test Wavelength |
1310/1550nm |
850/1310nm |
|
|
Durability(500 Matings) |
≤0.2dB |
||
|
Operating Temperature |
-40℃~+60℃ |
||
|
Storage Temperature |
-45℃~+85℃ |
||
