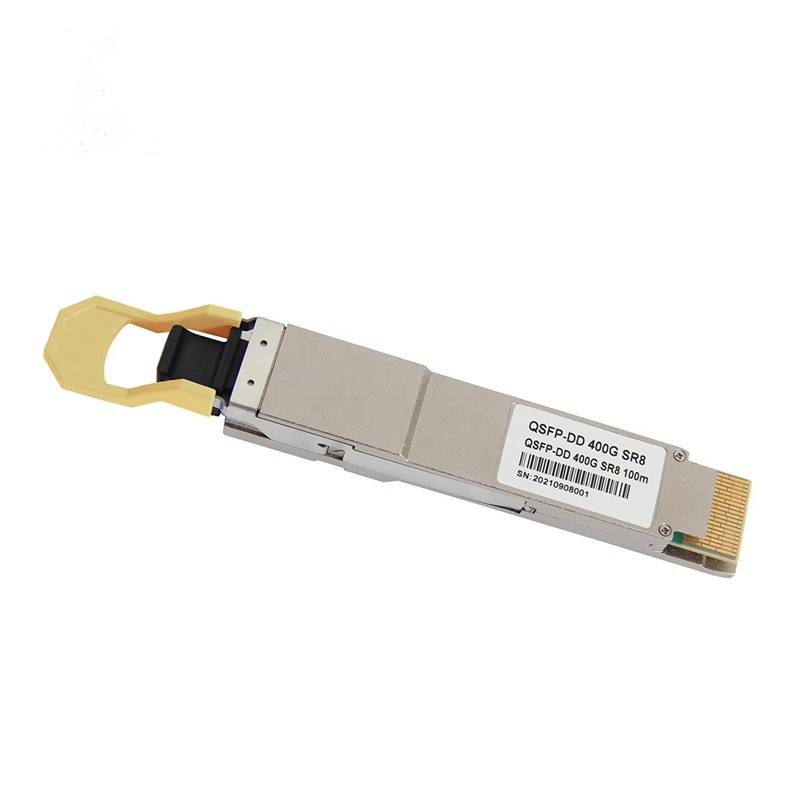

400G QSFP-DD SR8

Product Item：400G QSFP-DD SR8

QSFP-DD MSA compliant

MTP/MPO-16 connector

8 x Tx, and 8 x Rx at 53.125Gb/s with 26.5625G PAM4 modulation scheme

Transmission distance up to 100m with OM3 fiber

Description

400G QSFP-DD SR8

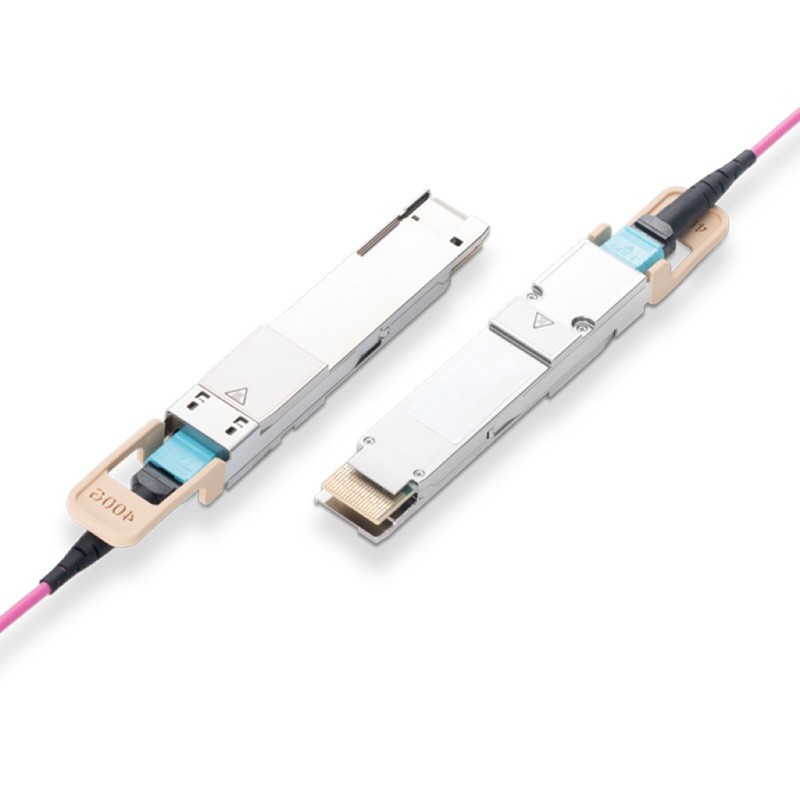

400G QSFP-DD SR8 optical transceiver module offers MMF connections up to 100m via MTP/MPO-16 connectors. With eight 50G PAM4-coded channels, it achieves a 400G data rate. Compatible with IEEE 802.3bs and 400GAUI-8/CEI-56G-VSR-PAM4 standards, it integrates wavelength multiplexing/demultiplexing for smooth 400G server-to-switch transmission.

Feature
* QSFP-DD MSA compliant
* Electrical interface compliant with 400GAUI-8 and CEI-56G-VSR-PAM4
* Bi-directional operation: 8 x Tx, and 8 x Rx at 53.125Gb/s with 26.5625G PAM4 modulation scheme
* Built in DSP
* Enabled by 850nm VCSEL
* MTP/MPO-16 connector
* Power consumption 9.5W per end
* Transmission distance up to 100m with OM3 fiber
Application
* Switch & Router Connections
* 400Gb Ethernet interconnect
* High performance computing
