Description:

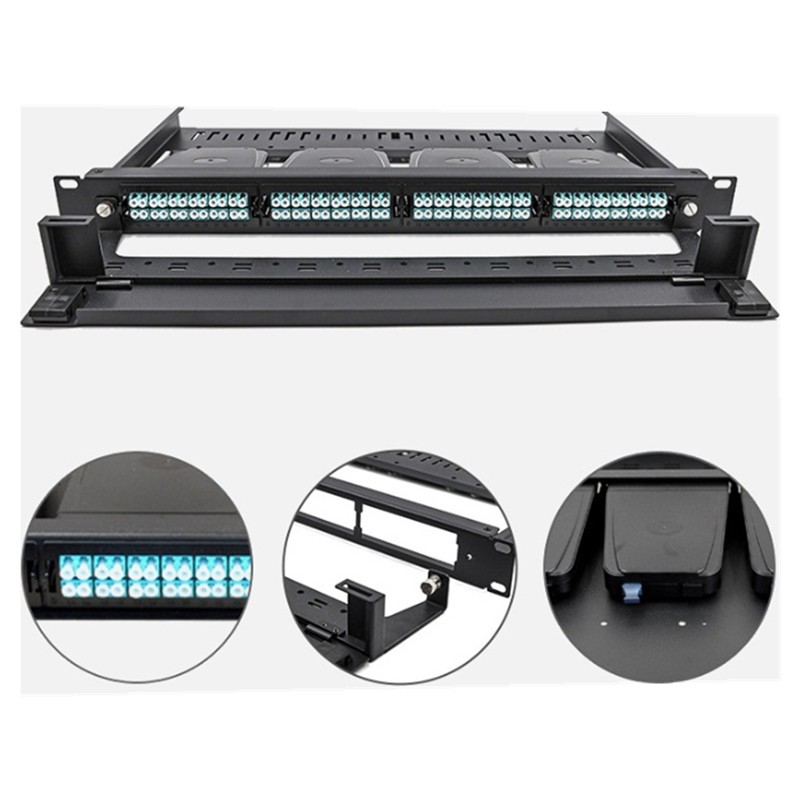

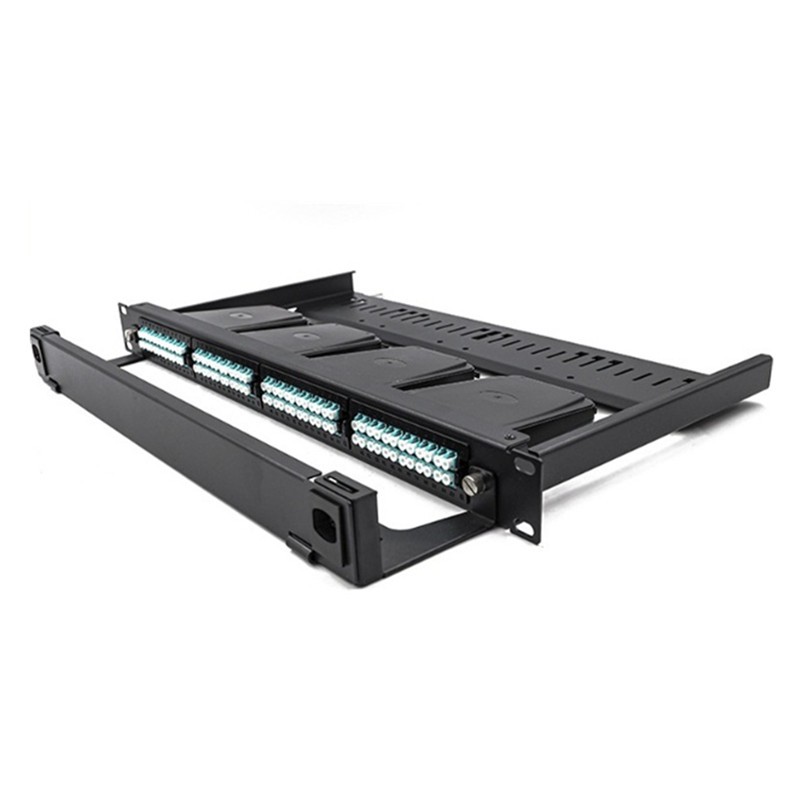

High Density (HD) Series patch panels offer an extra slot that accepts up to four adapter panels or MPO cassettes in the 1RU footprint. This design has been accomplished by staggering the mounting ears. The HD patch panels are ideal for high fiber count applications and will fit into any standard 19” or 23” rack by rotating the panel’s mounting ears.Quanheng provides complete solution for your data center interconnection solution, including MPO/MTP Trunk Cable ,MPO/MTP Harnesses Cables ,MPO/MTP Fan out 0.9mm Patch Cords ,IP-Series MPO/MTP Assembly ,High Density Patch Cords ,MPO/MTP Loopback ,MT Patch Cords,MPO/MTP Cassettes ,MPO/MTP Fiber Optic Patch Panel;
Application:
Data centers,pre-terminated installations
Telecommunication networks
Storage area networking fiber channel
High denisty architectures
Specification:
|
Height |
Dimension |
Cassettes |
capacity |
Weight(empty cassette+panel) |
|
1U |
485*245*44mm |
4 |
12-96 |
4.0kg |
|
2U |
485*245*85mm |
8 |
96-192 |
7.0kg |
|
3U |
485*245*133mm |
12 |
192-288 |
10kg |
